Location of Parts and Basic Operations

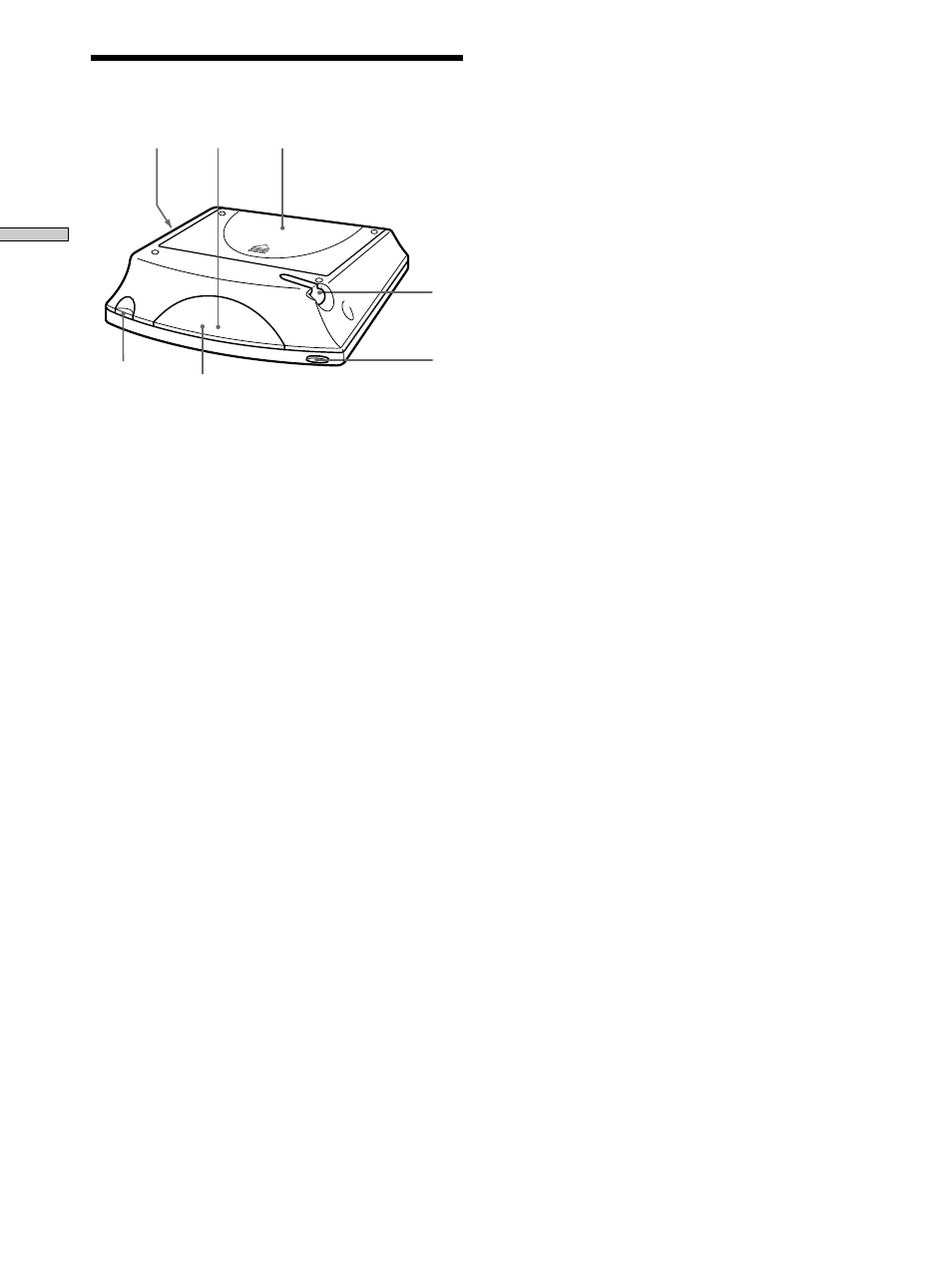

Rear panel
1 Transmitter/receiver section
Transmits and receives infrared signals to and from
the receiver.
2 Battery cover
3 Touch pen
4 ?/1/SYSTEM STANDBY button
Normally used to turn the receiver on or off. Can also
be used to turn off all Sony components (SYSTEM
STANDBY) when this button is set to SYSTEM
STANDBY in the SETUP screen (see page 29).
Regardless of the setting, when pressed for more than
3 seconds, the SYSTEM STANDBY code is transmitted
only once.
5 Remote code receiver section
When using the Learning function, this section
receives the remote codes from other remote controls.
6 Touch pen holder
Pull out and insert touch pen when not in use.
7 DC input jack
You can connect an AC power adapter (DC 300 mA
minimum, 6V) (not supplied).
1 7 2
3
4
6
5
