Connecting an External Display
81
Connecting an External Display
You can connect a computer display (monitor) or projector to your notebook or
docking station.
To Connect a Monitor
Using the Notebook
1 Locate the monitor connector on the left side of the notebook.
2 Plug the optional display cable into the monitor connector.
Using the Docking Station
1 Locate the monitor connector on the rear panel of the docking station.
✍
Ensure that one end of the power cord of the monitor is plugged into the display, and
the other end is plugged into an AC outlet.

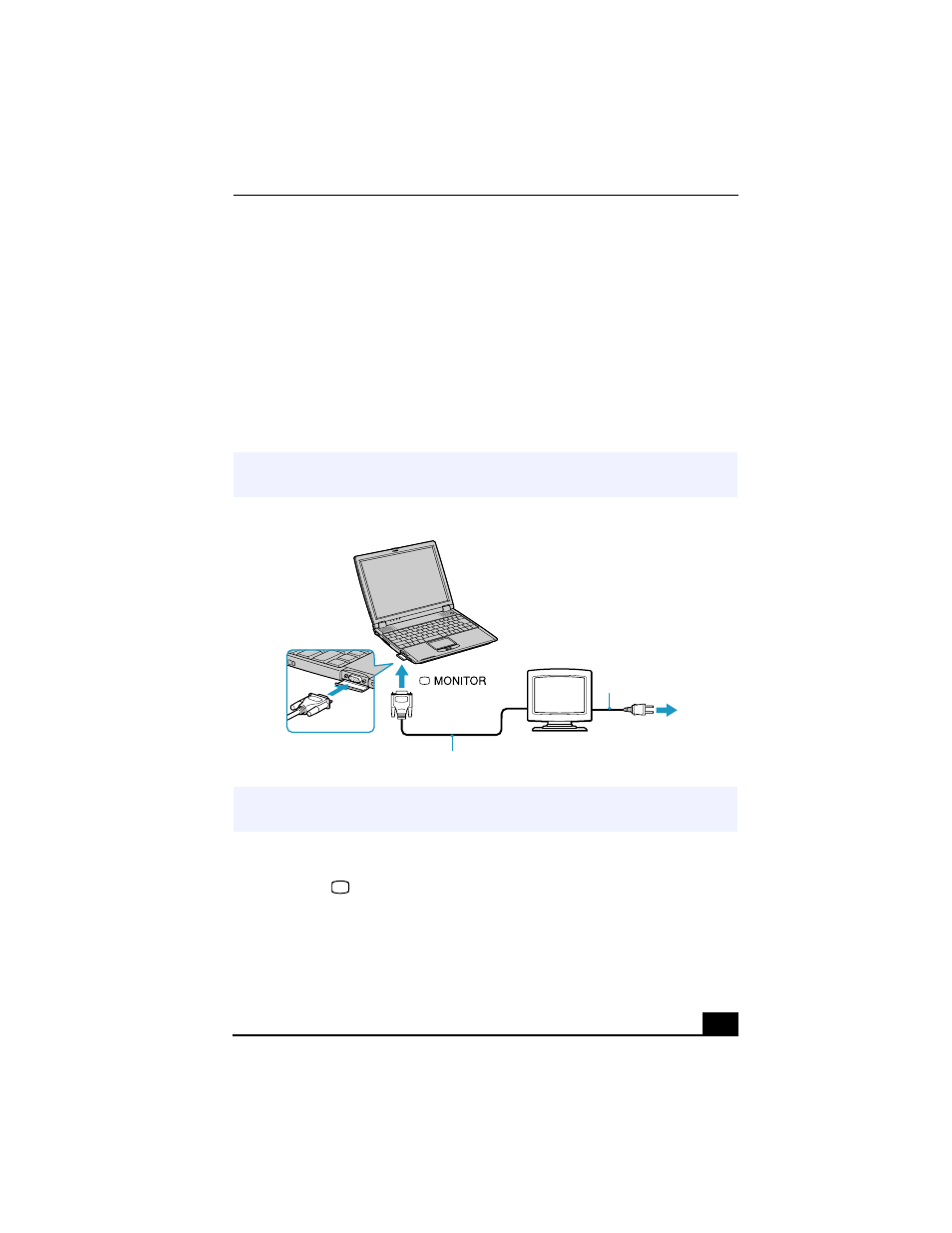

Connecting Monitor
✍
You cannot use the Monitor connector on your notebook when the docking station is
connected to the notebook.
Computer display
Power cord
Display cable (optional)
