BUILDING-IN

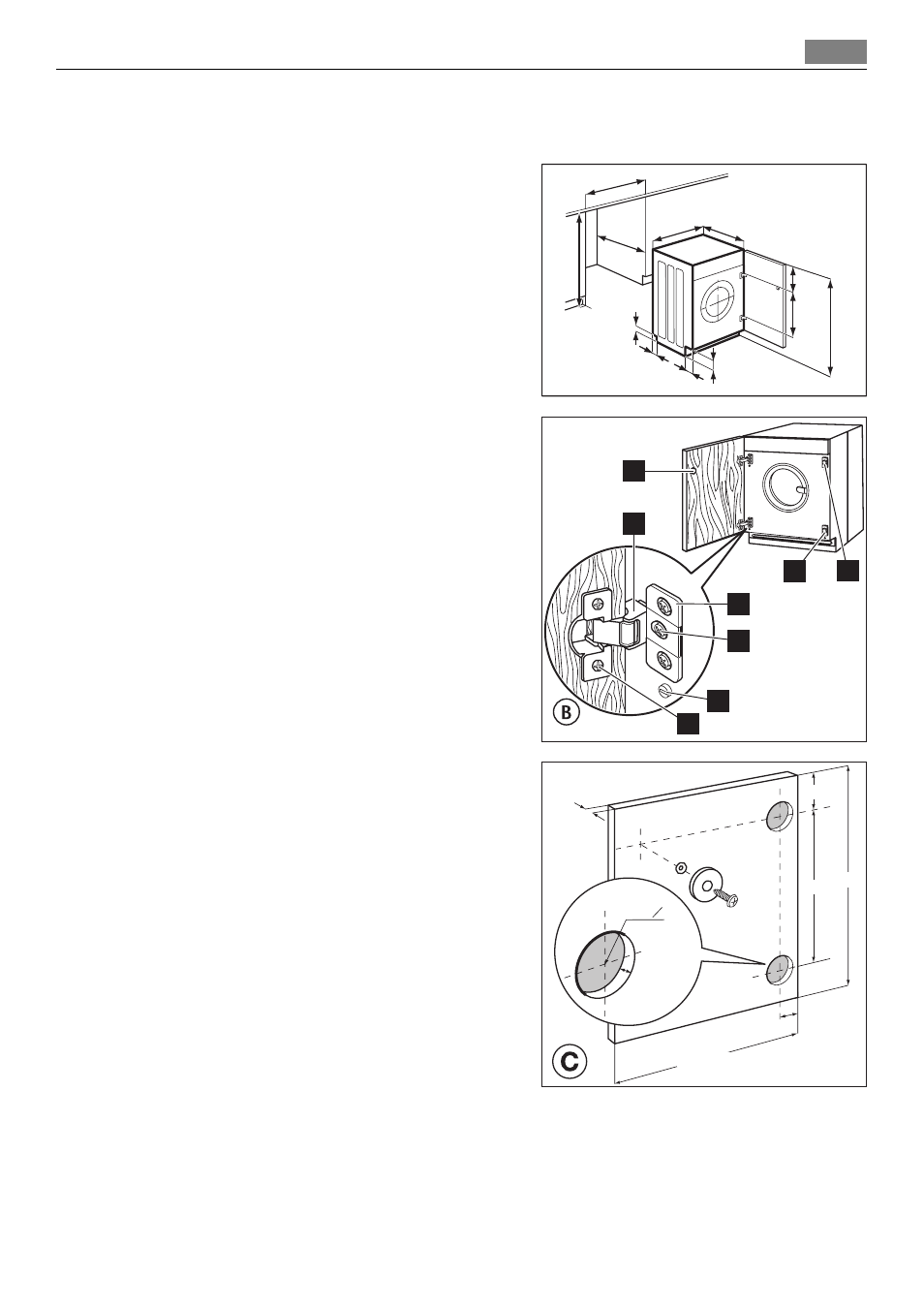

This appliance has been designed to be built into
the kitchen furniture. The recess should have the
dimensions shown in picture A.
Preparation and assembly of the door
The machine is originally pre-arranged for the as-
sembly of a door opening from right to left.
In this case it is sufficient to screw in the hinges
(1) and the counter-magnet (6) provided with the
appliance, at the right level (Fig. B).
• Door
The dimensions of the door should be:
– width 595-598 mm
– thickness 16-22 mm
The height (C-Fig. C) depends on the height of
the adjacent furniture's base.
• Hinges
To mount the hinges it is necessary to drill two
holes (dia. 35 mm, depth 12.5-14 mm depend-
ing on the depth of door furniture) on the in-
ner side of the door. The distance between the
holes hobs fixing centres must be 416 mm.
The distance (B) from upper edge of the door to
the centre of the hole depends on the adjacent furniture's dimensions.
The required dimensions are given in the picture C.
The hinges will be fixed to the door by means of screws for wood (2-Fig. B) supplied with
the appliance.
• Mounting the door
600
596 555
170
75
176,5
416
100
60
818
min.
820
min.
560
1
6
2
8
3
7
4 5
416 C
B
22+1,5
595-598
16-22
35 o
14
