Aquatic HOTSOAK 91 AI33AIR6634HS - Manual

The manufacturer accepts a 1/4” variance. There are variations on each tub and specifications are subject to change as we improve upon our product as required. The dimensions needed for site preparation and structure building should be measured from the tub;
Aquatic Industries, Inc. assumes no responsibility for preparatory work.
www.aquaticwhirlpools.com 800.555.5324

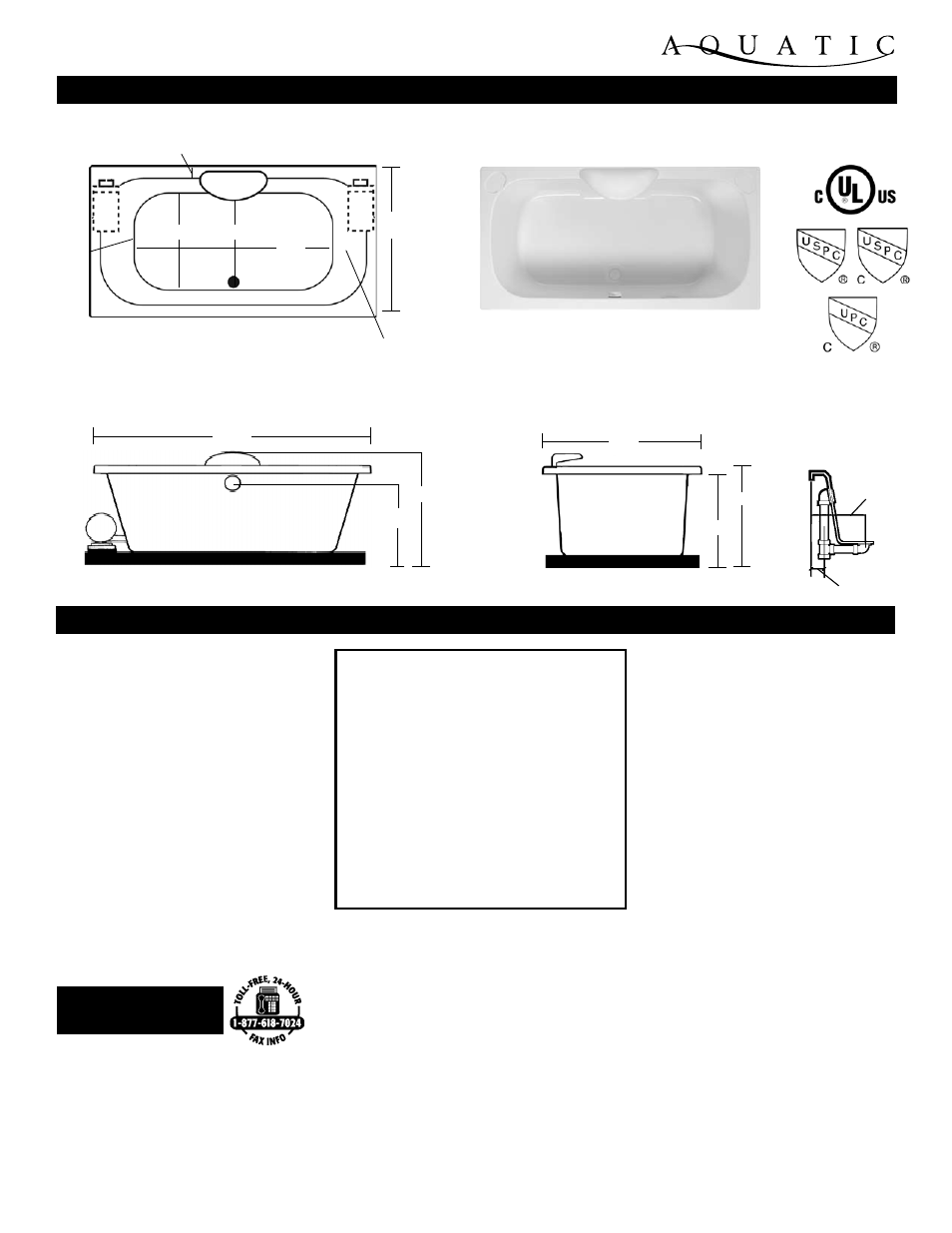

Rough-In Plumbing
Measurements
hotsoak sERIEs
Model # AI33AIR6634HS
hotsoak 91
34”
1 1/2”
8 3/4”
Deck Width
3”
sPECIFICatIoNs:
GeneRal SPecIfIcatIonS:
Tub Size 66 1/4” x 34” x 25 3/4”
168 cm x 86 cm x 65 cm
Bathing Well 47” long
24” wide
19” interior depth
Maximum Water Depth 15”
Shipping Weight 183 lbs. / 83 kg
Tub Weight Filled 812 lbs. / 368 kg
Tub Only Weight 96 lbs. / 44 kg
Weight w/Equipment 106 lbs. / 48 kg
Gallons to Overflow 85 gal. / 322 L
electRIcal SPecIfIcatIonS:
Pump 1/15 HP; 1.3 AMP; 110V
Heater 1.5 kW; 12.5 AMP; 110V
Requirements 20 AMP; 110V, separate circuit
required protected w/ Class A GFCI
This unit is not recommended for shower installations.
•
Chromatherapy*
• Comfort Pillow - Oval or Rectangle
•
Bolt-On Grab Bars
- White, Biscuit, Chrome, Polished Brass, Gold,
Polished Nickel, Satin Nickel or Oil Rubbed Bronze
•
Lift & Turn Waste and Overflow
- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel or Oil Rubbed Bronze
•
Cable Drive Waste and Overflow
- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel, Oil Rubbed Bronze or
Color Matched (Bone, White and Biscuit only)
•
Chromatherapy
•
Optional Pump Location
•
Factory Installed Tile Flange**
• Color Matched Acrylic Skirt
•
Premium Colors
All acrylic colors featured by Aquatic match the
industry’s leading fixture manufacturers.
* *Tile flange cannot be installed on waterfall fill spout side.
*This whirlpool will need to be hard wired to the breaker box.
Three outlets will be supplied on the whirlpool.
.
oPtIonal equIPMent:
aquatic quality features:
- Integrally Molded Fast-Fill Waterfall Spout (valves not included)
- 1.5 kW Inline Maintenance Heater
- Run-Dry Pump with 20-Minute Timer
- 2 Circulation Portal Covers
- Bath-side On/Off Electronic Button
- “Quiet Pad” Anti-Vibration Pump Mount for Quiet Operation
- Slip Resistant Floor
- Extra Deep and Long Bathing Well
- Pre-leveled ABS Support Base
- Heat-bent rigid PVC Piping for optimum sanitary Conditions
- Durable, Easy to Clean, Lucite® Cast Acrylic Surface
- available in 8 Standard No-Charge Colors
ul & IaPMo listed, factory tested
limited lifetime Warranty
StandaRd equIPMent:
fax-on-demand
document # 1255
Back
Angle
18˚
June 2008
18 3/4”
66 1/4” 34”
19 3/4”
21 3/4”
2 1
25 3/4”
Back
Angle
18˚
24” 23”
47”
