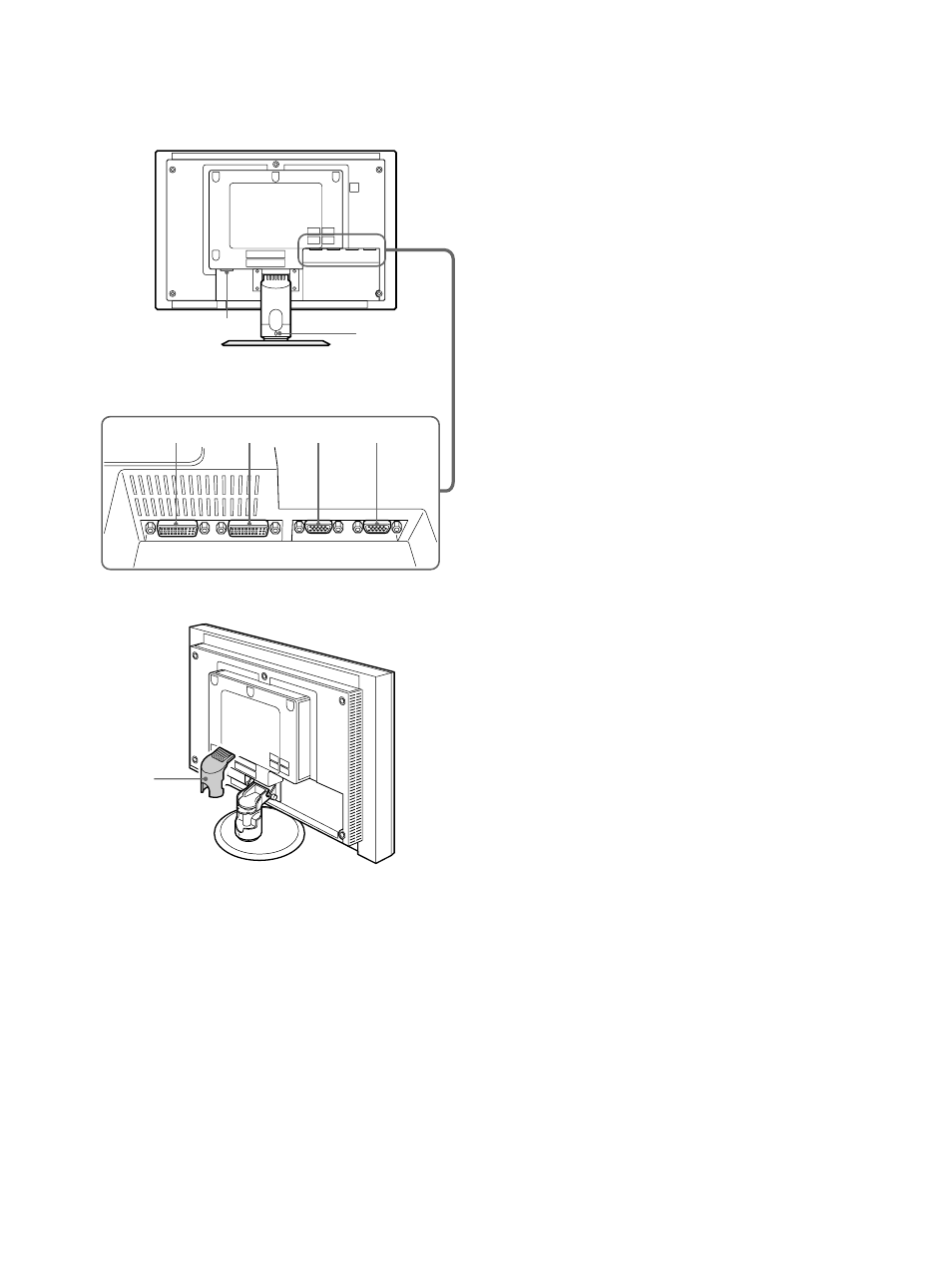

Rear of the LCD display J AC IN connector (page 8)
This connector connects the power cord (supplied).
K Security Lock Hole
The security lock hole should be used with the Kensington
Micro Saver Security System.
Micro Saver Security System is a trademark of Kensington.
L DVI-D input connector (digital RGB) for INPUT1
(page 7)
This connector inputs digital RGB video signals that comply
with DVI Rev. 1.0.
M DVI-D input connector (digital RGB) for INPUT2
(page 7)
This connector inputs digital RGB video signals that comply
with DVI Rev. 1.0.
N HD15 input connector (analog RGB) for INPUT1
(page 7)
This connector inputs analog RGB video signals (0.700 Vp-p,
positive) and sync signals.
O HD15 input connector (analog RGB) for INPUT2
(page 7)
This connector inputs analog RGB video signals (0.700 Vp-p,
positive) and sync signals.
P Arm cover (page 9)
Remove this cover to bundle connecting cords and cables.
0
qa
qs qd qf qg
qh
