Sony SLV-M11HF - Manual

MODEL:
DESCRIPTION:
DIMENSIONS
(WHD):
WEIGHT:
SLV-M11/91HF
DESCRIPTION:
DIMENSIONS
(WHD):
WEIGHT: POWER
REQUIREMENTS:
POWER
CONSUMPTION:
1/4 inch =1 inch Scale 4:1
VHS HI-FI VCR
17 X 3 7/8 " X 11"
9 lbs 14oz
120V
60H
25
Watts
Sony Electronics Inc • Consumer Integrated Systems • Park Ridge, New Jersey 07656 •
Features and specifications subject to change without notice. • Non-metric weights and measurements are approximate.
NOTE:
WHERE THERE ARE CLOSE TOLERANCES INVOLVED IN CABINET BUILDING
OR APPLICATIONS WHICH REQUIRE A GREAT DEGREE OF PRECISION WE
RECOMMEND THAT THE PRODUCT ITSELF BE USED TO MAKE THE ACTUAL
MEASUREMENTS. SONY WILL NOT BE RESPONSIBLE FOR INACCURACIES
IN THE DESIGN OR MANUFACTURE OF ENCLOSURES .

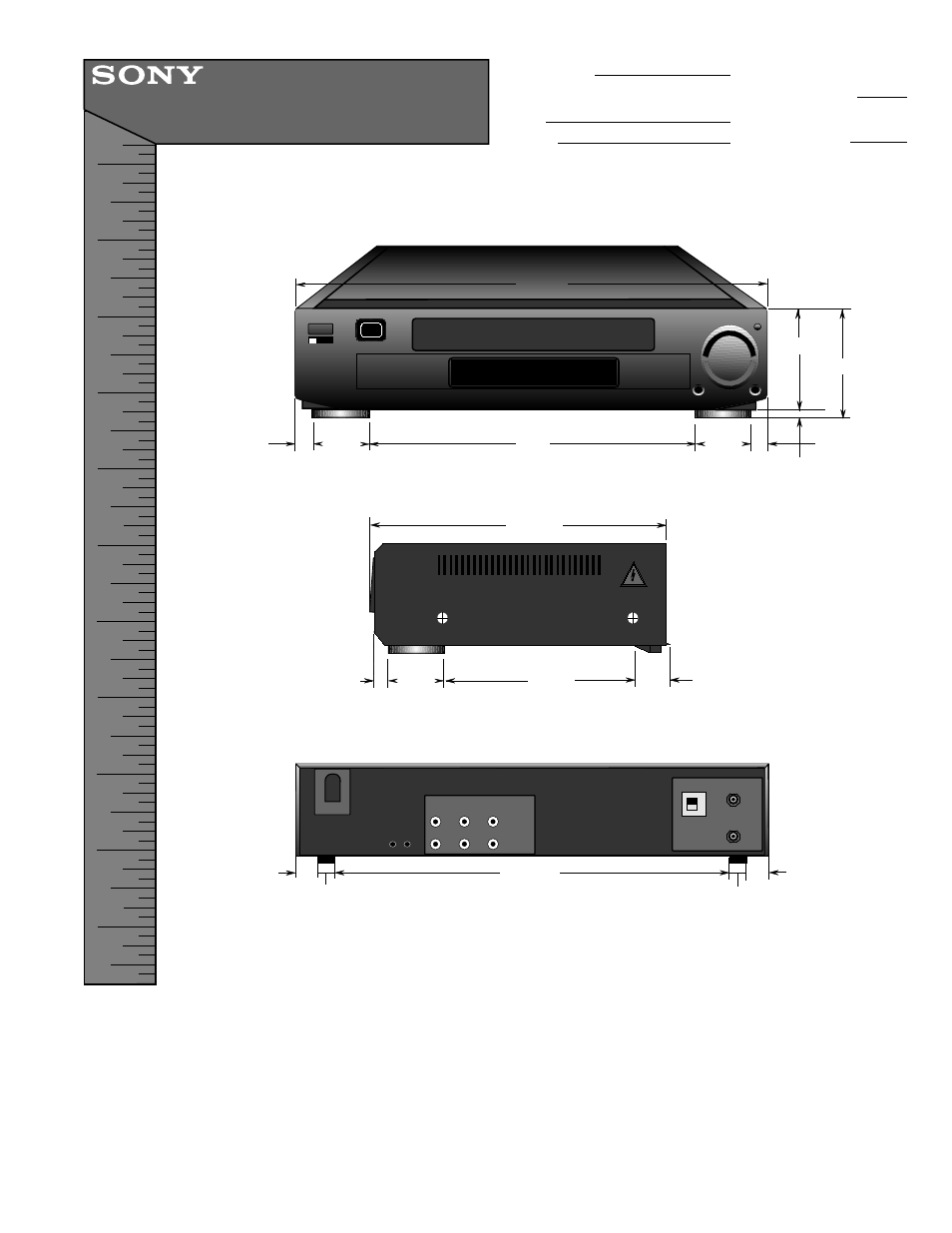

FRONT VIEW
SIDE VIEW
11 "
7 1/4" 1 1/2"
1/2" 12" 2 "
3 7/8"
R
HI-FI Stereo
VHS
3 5/8"
1/4"
17"
2 "
2 " 1/2"
BACK VIEW
14 1/4"
1/2" 1/2"
7/8" 7/8"
AC
IN
CONTROL S IN
CABLE MOUSE
OU
IN
RF UNIT
3
4
VHF/UH
L Audio R VIDEO
LINE
IN
LINE
OUT
1/2"
