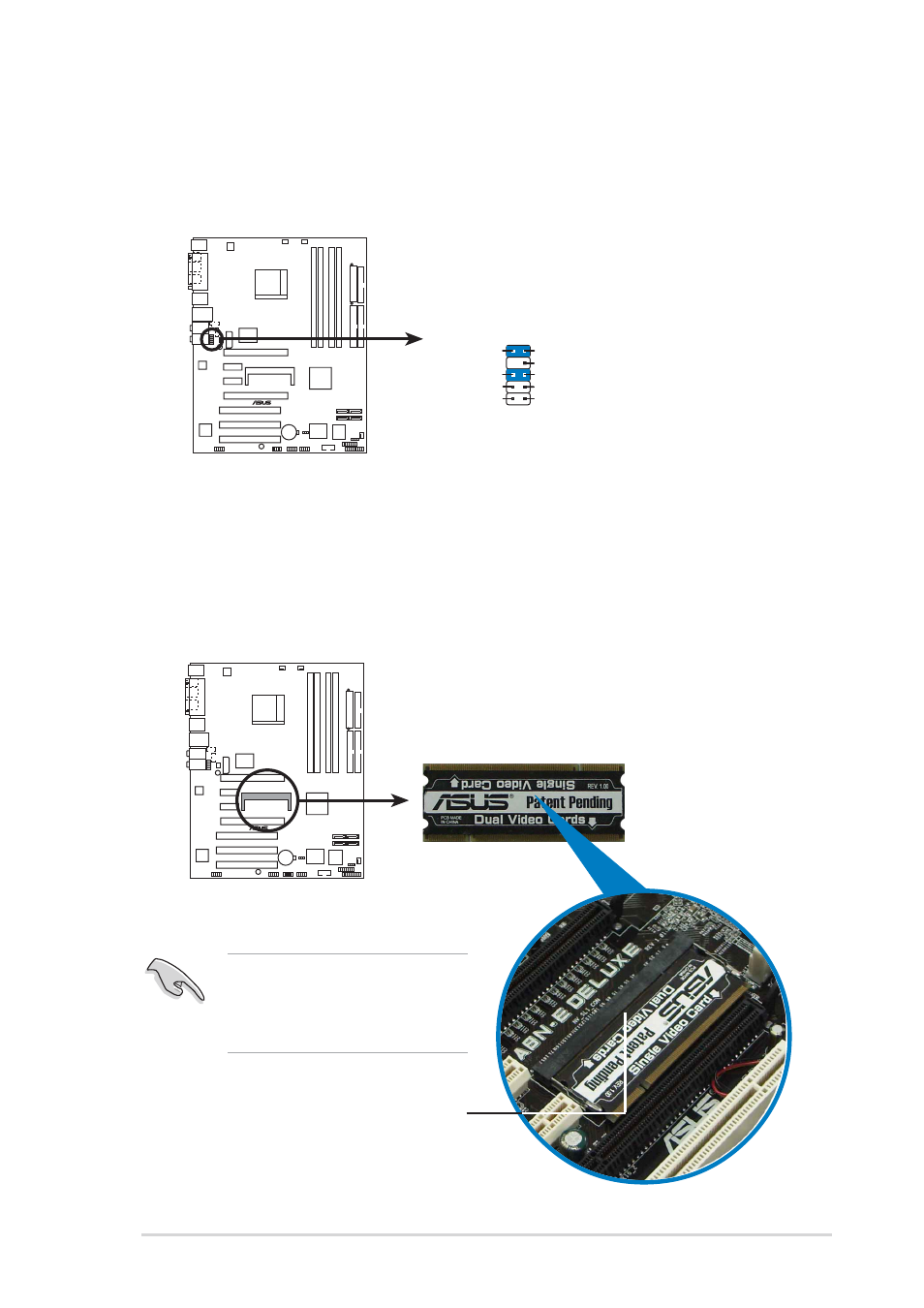

1 3 . 1 3 . 1 3 . 1 3 . 1 3 . Front panel audio connector (10-1 pin FP_AUDIO) F r o n t p a n e l a u d i o c o n n e c t o r ( 1 0 - 1 p i n F P _ A U D I O ) F r o n t p a n e l a u d i o c o n n e c t o r ( 1 0 - 1 p i n F P _ A U D I O ) F r o n t p a n e l a u d i o c o n n e c t o r ( 1 0 - 1 p i n F P _ A U D I O ) F r o n t p a n e l a u d i o c o n n e c t o r ( 1 0 - 1 p i n F P _ A U D I O )
This connector is for a chassis-mounted front panel audio I/O module
that supports legacy AC ‘97 audio standard. Connect one end of the
front panel audio I/O module cable to this connector.
1 4 . 1 4 . 1 4 . 1 4 . 1 4 . ASUS EZ selector card connector (144-pin SLI_CON) A S U S E Z s e l e c t o r c a r d c o n n e c t o r ( 1 4 4 - p i n S L I _ C O N ) A S U S E Z s e l e c t o r c a r d c o n n e c t o r ( 1 4 4 - p i n S L I _ C O N ) A S U S E Z s e l e c t o r c a r d c o n n e c t o r ( 1 4 4 - p i n S L I _ C O N ) A S U S E Z s e l e c t o r c a r d c o n n e c t o r ( 1 4 4 - p i n S L I _ C O N )
This connector is for the ASUS EZ selector card that allows you to set
the SLI mode to either Single Video card or Dual Video cards. See
Chapter 6 for details.
A8N-SLI
®
A8N-SLI Front panel audio connector
FP_AUDIO
BLINE_OUT_L
MIC2
Line out_R
Line out_L
BLINE_OUT_R
NC
MICPWR +5VA
AGND
A8N-SLI
®
A8N-SLI EZ selector card connector
Make sure that the goldfingers
of the EZ selector card is
inserted completely into the
slot.
G o l d f i n g e r s G o l d f i n g e r s G o l d f i n g e r s G o l d f i n g e r s G o l d f i n g e r s
