A S U S A 8 N - S L I A S U S A 8 N - S L I A S U S A 8 N - S L I A S U S A 8 N - S L I A S U S A 8 N - S L I 2 - 2 3 2 - 2 3 2 - 2 3 2 - 2 3 2 - 2 3

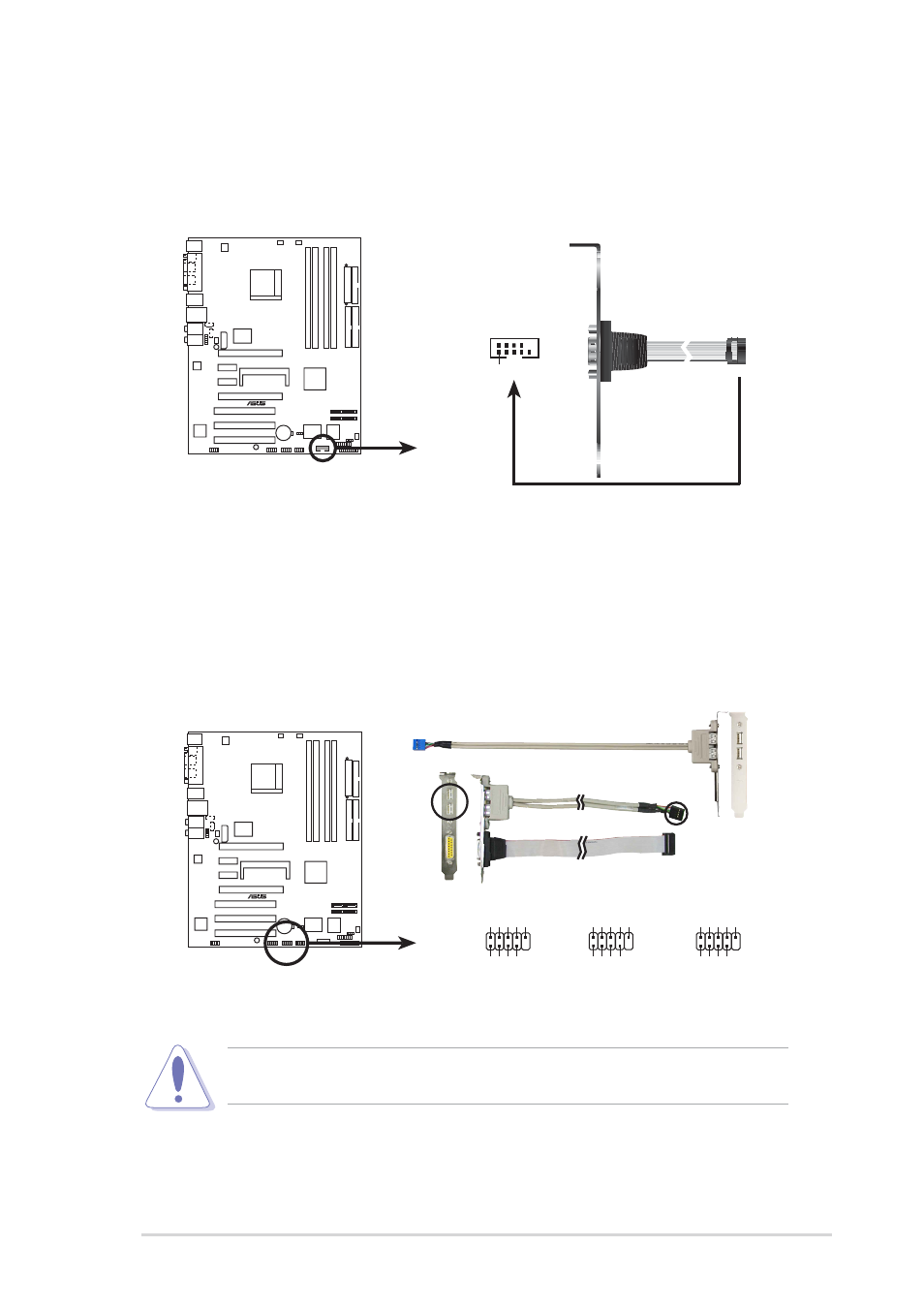

5 . 5 . 5 . 5 . 5 . S e r i a l p o r t c o n n e c t o r ( 1 0 - 1 p i n C O M 1 ) S e r i a l p o r t c o n n e c t o r ( 1 0 - 1 p i n C O M 1 ) S e r i a l p o r t c o n n e c t o r ( 1 0 - 1 p i n C O M 1 ) S e r i a l p o r t c o n n e c t o r ( 1 0 - 1 p i n C O M 1 ) S e r i a l p o r t c o n n e c t o r ( 1 0 - 1 p i n C O M 1 )
This connector is for a serial (COM) port. Connect the serial port
module cable to this connector, then install the module to a slot
opening at the back of the system chassis.
Never connect a 1 3 9 4 c a b l e 1 3 9 4 c a b l e 1 3 9 4 c a b l e 1 3 9 4 c a b l e 1 3 9 4 c a b l e to the USB connectors. Doing so will
damage the motherboard!
6 . 6 . 6 . 6 . 6 . U S B c o n n e c t o r s ( 1 0 - 1 p i n U S B 5 6 , U S B 7 8 , U S B 9 1 0 ) U S B c o n n e c t o r s ( 1 0 - 1 p i n U S B 5 6 , U S B 7 8 , U S B 9 1 0 ) U S B c o n n e c t o r s ( 1 0 - 1 p i n U S B 5 6 , U S B 7 8 , U S B 9 1 0 ) U S B c o n n e c t o r s ( 1 0 - 1 p i n U S B 5 6 , U S B 7 8 , U S B 9 1 0 ) U S B c o n n e c t o r s ( 1 0 - 1 p i n U S B 5 6 , U S B 7 8 , U S B 9 1 0 )
These connectors are for USB 2.0 ports. Connect the USB/GAME
module cable to any of these connectors, then install the module to a
slot opening at the back of the system chassis. These USB connectors
comply with USB 2.0 specification that supports up to 480 Mbps
connection speed.
A8N-SLI
®
A8N-SLI COM port connector
PIN 1
COM1
A8N-SLI
®
A8N-SLI
USB 2.0 connectors
USB56
USB+5V USB_P6- USB_P6+ GND NC
USB+5V USB_P5- USB_P5+
GND
1
USB78
USB+5V USB_P8- USB_P8+ GND NC
USB+5V USB_P7- USB_P7+
GND
1
USB910
USB+5V USB_P10- USB_P10 + GND NC
USB+5V USB_P9- USB_P9+
GND
1
