Sony DSC-W190 - Manual (Page 11)

11 GB
Get
ting st
art
e
d

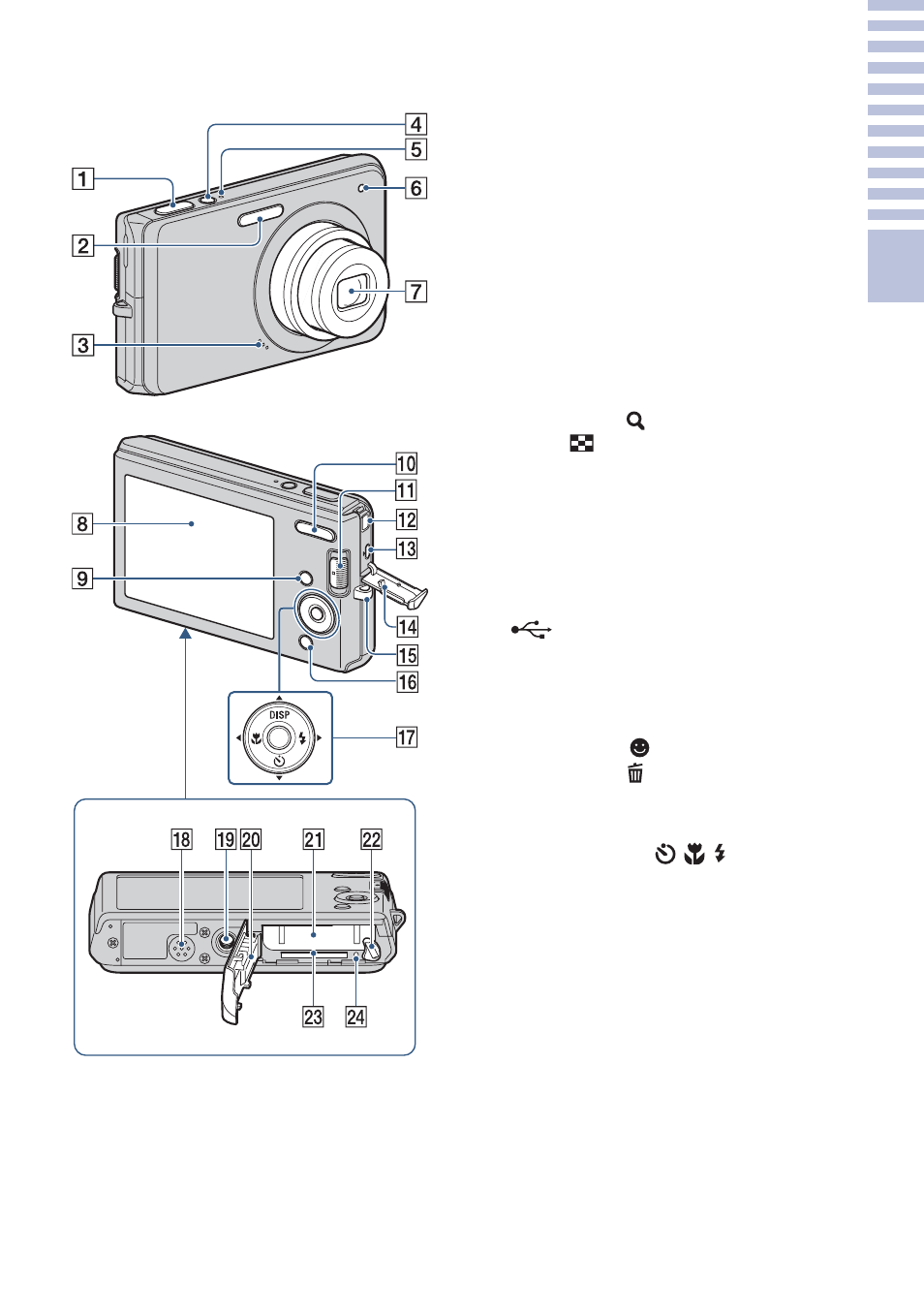

Identifying parts
A Shutter button
B Flash
C Microphone
D ON/OFF (Power) button
E ON/OFF (Power) lamp
F Self-timer lamp
G Lens
H LCD screen
I MENU button
J For shooting: W/T (Zoom) button
For viewing: (Playback zoom)
button/ (Index) button
K Mode switch
L DC IN jack
• Connecting the camera to AC Adaptor
AC-LS5K (sold separately) will not
charge the battery. Use a battery charger
for charging the battery.
M
(USB)
·
A/V OUT terminal
(side)
N Jack cover
O Hook for wrist strap
P For shooting: (Smile) button
For viewing: (Delete) button
Q Control button
Menu on: v/V/b/B/z
Menu off: DISP/
/ /
R Speaker
S Tripod receptacle
• Use a tripod with a screw less than
5.5 mm (7/32 inch) long. Otherwise, you
cannot firmly secure the camera, and
damage to the camera may occur.
T Battery/“Memory Stick Duo” media
cover
U Battery insertion slot
V Battery eject lever
W “Memory Stick Duo” media slot
X Access lamp
Bottom
