55
Cus
tom
iz
ing You
r C
a
m
co
rder

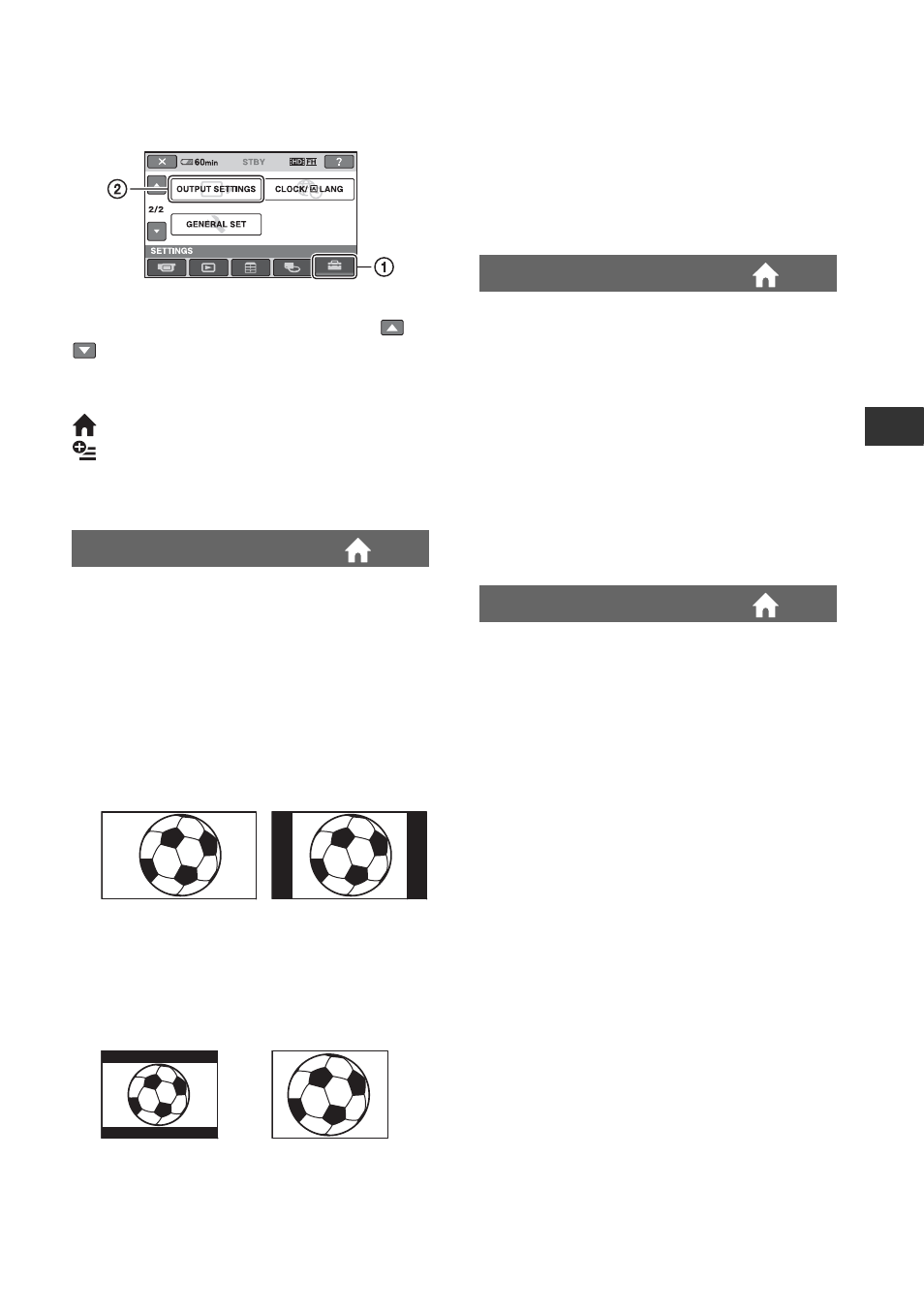

OUTPUT SETTINGS
(Items for when connecting other devices)
Touch 1, then 2.
If the item is not on the screen, touch
/
to change the page.
How to set
(HOME MENU) t page 46
(OPTION MENU) t page 58
The default settings are marked with B.
You need to convert the signal depending
on the TV connected when playing back the
image. The recorded images are played
back as following illustrations.
B 16:9
Select this to view your images on a 16:9
(wide) TV.
4:3
Select this to view your images on a 4:3
standard TV.
b Notes
• Horizontal to vertical ratio of the image
recorded with HD (high definition) image
quality is 16:9.
TV TYPE
16:9 (wide)
images 4:3 images
16:9 (wide)
images 4:3 images
• When you connect your camcorder to a TV
compatible with the ID-1/ID-2 system, set [TV
TYPE] to [16:9]. The TV switches to full mode
automatically. Refer also to the instruction
manuals supplied with your TV.
B LCD PANEL
Shows displays such as the time code on
the LCD screen.
V-OUT/PANEL
Shows displays such as the time code on
the TV screen and the LCD screen.
b Notes
• The setting of [DISP OUTPUT] may be
changed according to the setting of [CTRL FOR
HDMI] (p. 57).
Select [COMPONENT] when connecting
your camcorder to a TV with the
component input jack.
480i
Select when connecting your camcorder to
a TV with the component input jack.
B 1080i/480i
Select when connecting your camcorder to
a TV that has the component input jack
and is capable of displaying the 1080i
signal.
DISP OUTPUT
COMPONENT
