Hook
ups
Connect the yellow plugs of the audio/video cord (supplied) to the yellow (video) jacks. You will
enjoy standard quality images.
Use the red and white plugs to connect to the audio input jacks (page 20).
Connect the S VIDEO cord (not supplied). You will enjoy high quality images.
Connect the component via the COMPONENT VIDEO OUT jacks using component video cords
(not supplied) or three video cords (not supplied) of the same kind and length. You will enjoy
accurate color reproduction and high quality images.
Do not connect your player to a VCR. You may not receive a clear image on the TV screen if you pass the player
signals via the VCR.

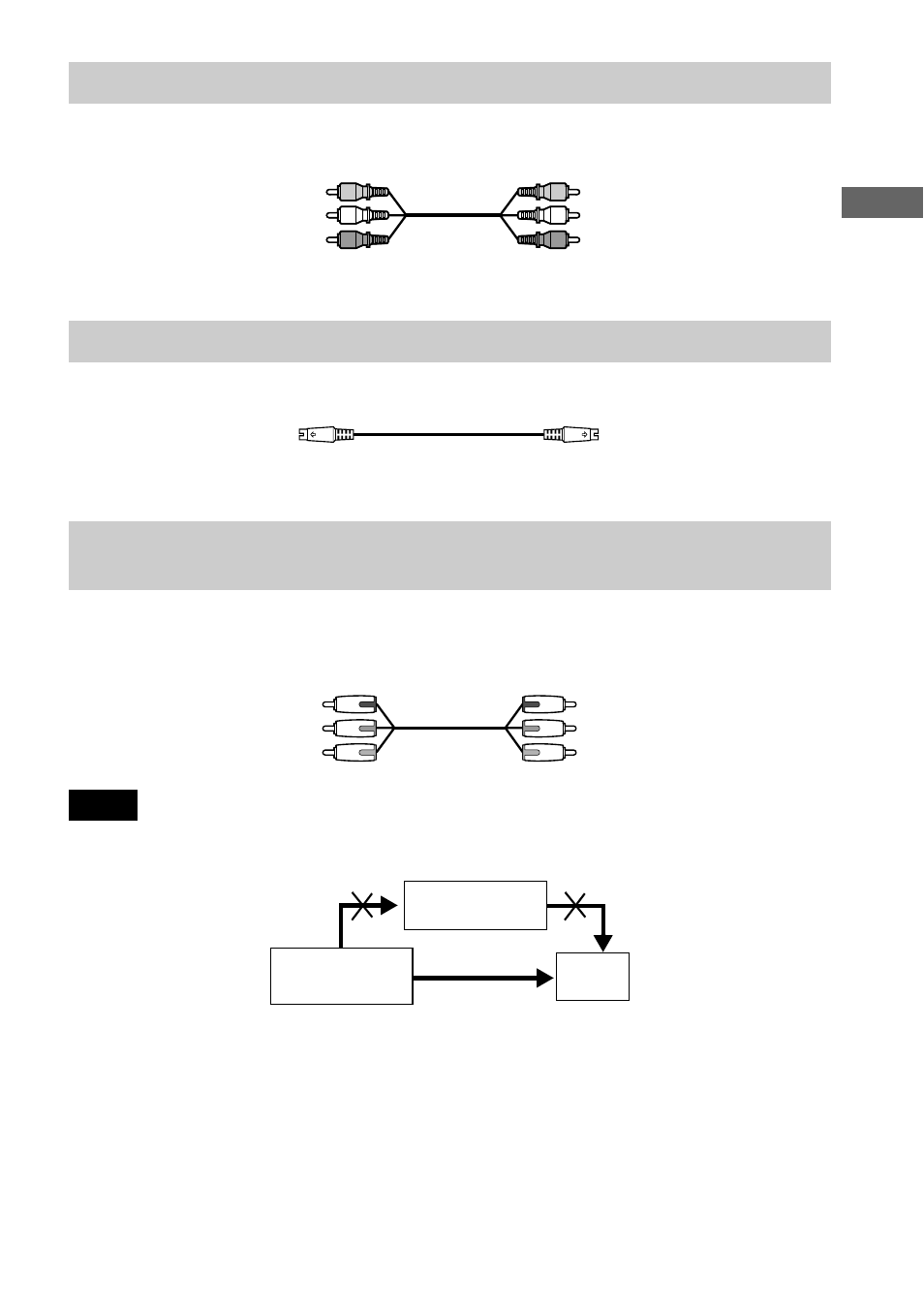

A If you are connecting to a video input jack
B If you are connecting to an S VIDEO input jack
C If you are connecting to a monitor, projector or AV amplifier (receiver) having
component video input jacks (Y, P
B
, P
R
)
Note
Yellow (Video)
White (L)
Red (R)
Yellow (Video)
White (L)
Red (R)
VCR
CD/DVD player TV
Connect directly.
