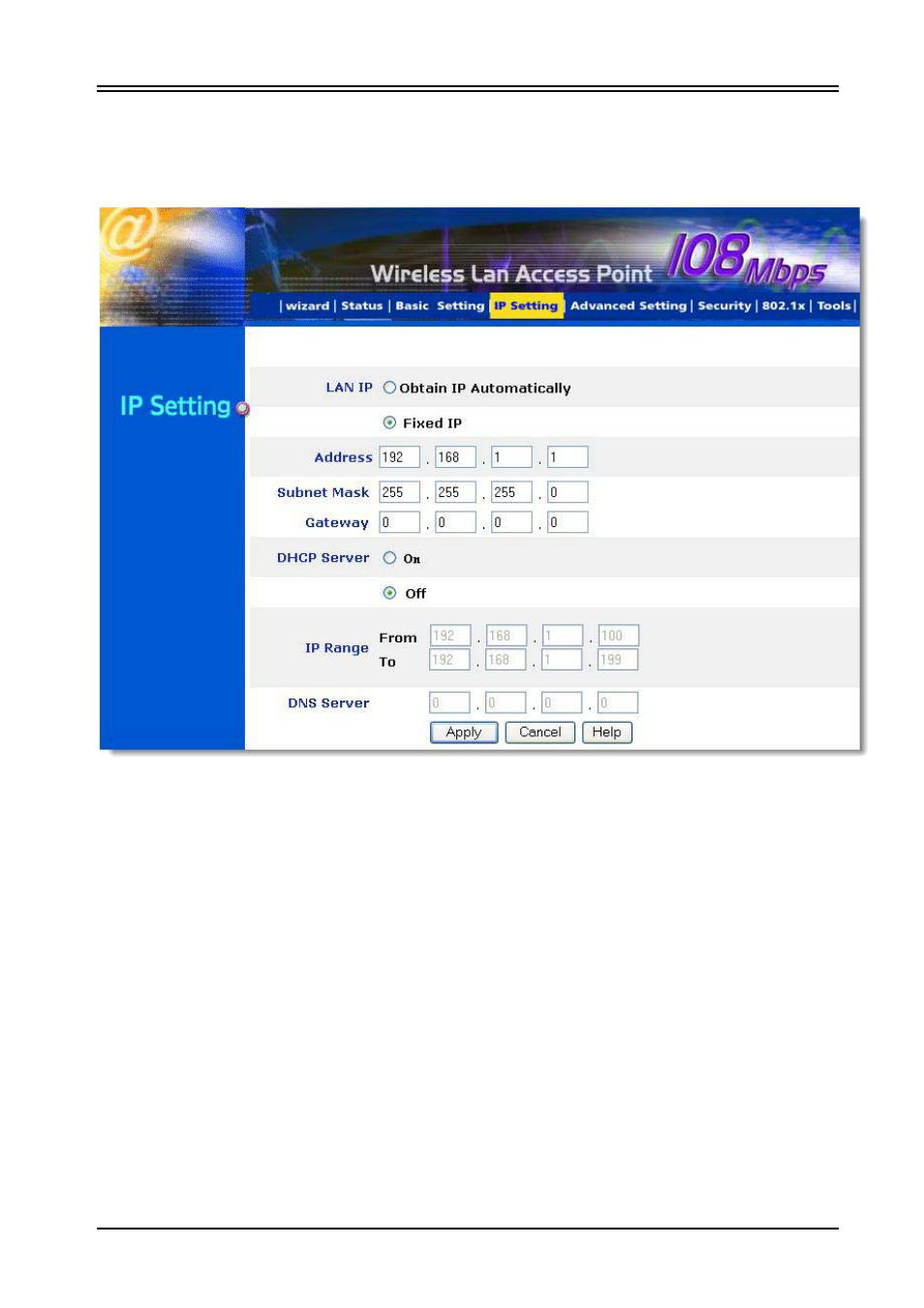

3.7.3 IP Settings
This page allows you to configure the IP and DHCP settings of the Access Point.
The default IP address of this access point is 192.168.1.1 with the subnet mask of 255.255.255.0.
You can type in other values for IP Address, Subnet Mask and Gateway and click “Apply” button
for the changes to be effective.
You can also set the Access Point to obtain the IP from a DHCP server, but it is not
recommended. Select the option “Obtain IP Automatically” and click “Apply” button for the
changes to be effective.
DHCP Server: It is not recommended to enable the DHCP Server if you have a DHCP server
running in your LAN network because it probably will cause possible the conflict of IP
assignment. Enable the DHCP server function by selecting the option “On”, and enter the IP
range.
Click “Apply” for the changes to be effective.
