Step 3: Adjusting the Picture Size and Position
Tip
When “Lens Control” is set to “Off” on the Installation
menu, you cannot
adjust the vertical picture position. ( 1 page 51)
When “Test Pattern” is set to “Off” on the Function menu, the test pattern is
not displayed. ( 1 page 50)
The picture moves up by a maximum of 0.65 of the screen size from the
center of the lens.
Tip
You can also adjust the horizontal position of the lens. For detailed information, see
“Making Fine Adjustments to the Horizontal Picture Position” on page 83.

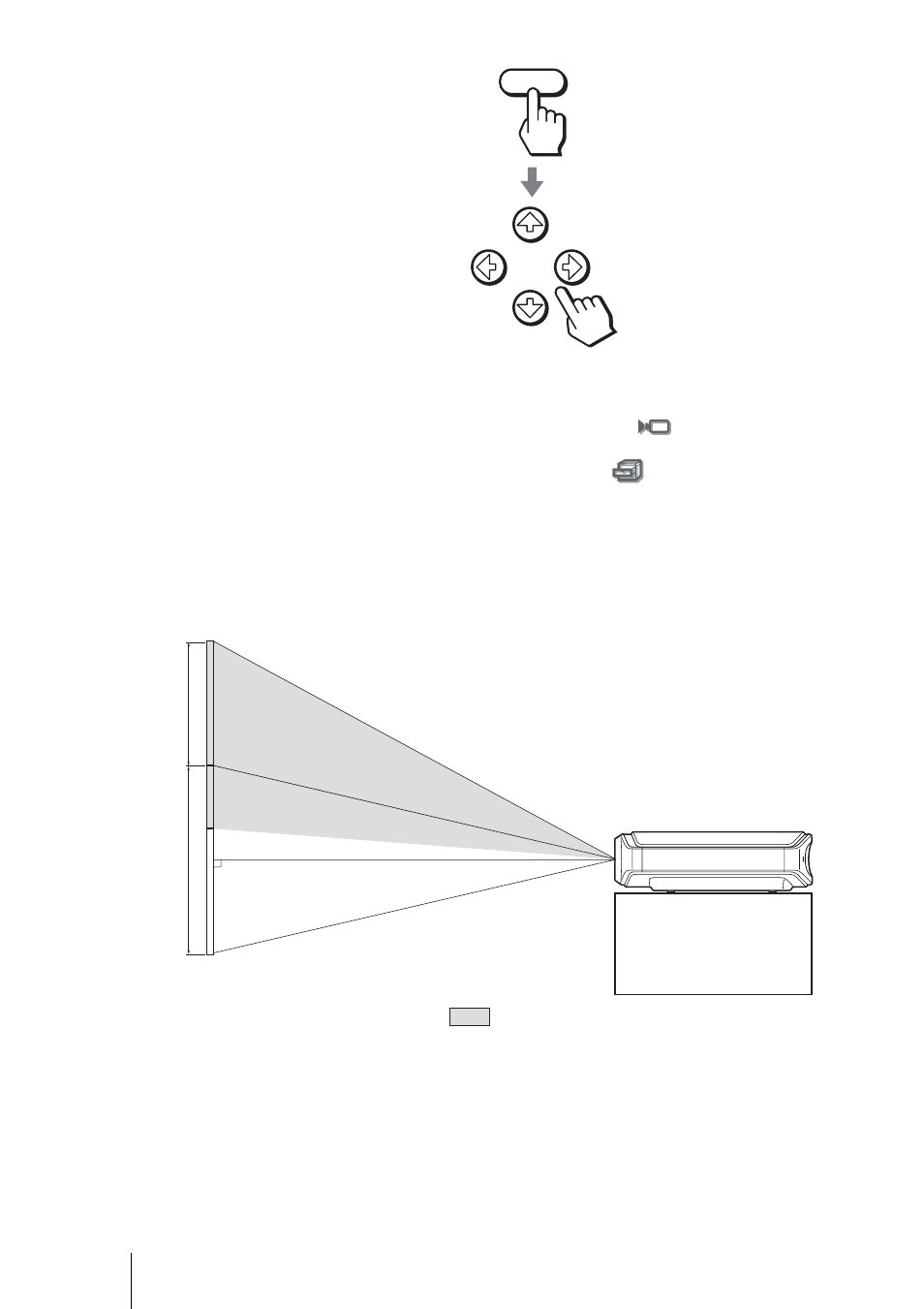

LENS
Side view
: Picture position when the picture is
moved upward at the maximum
0.65V
1V
