11

(GB)

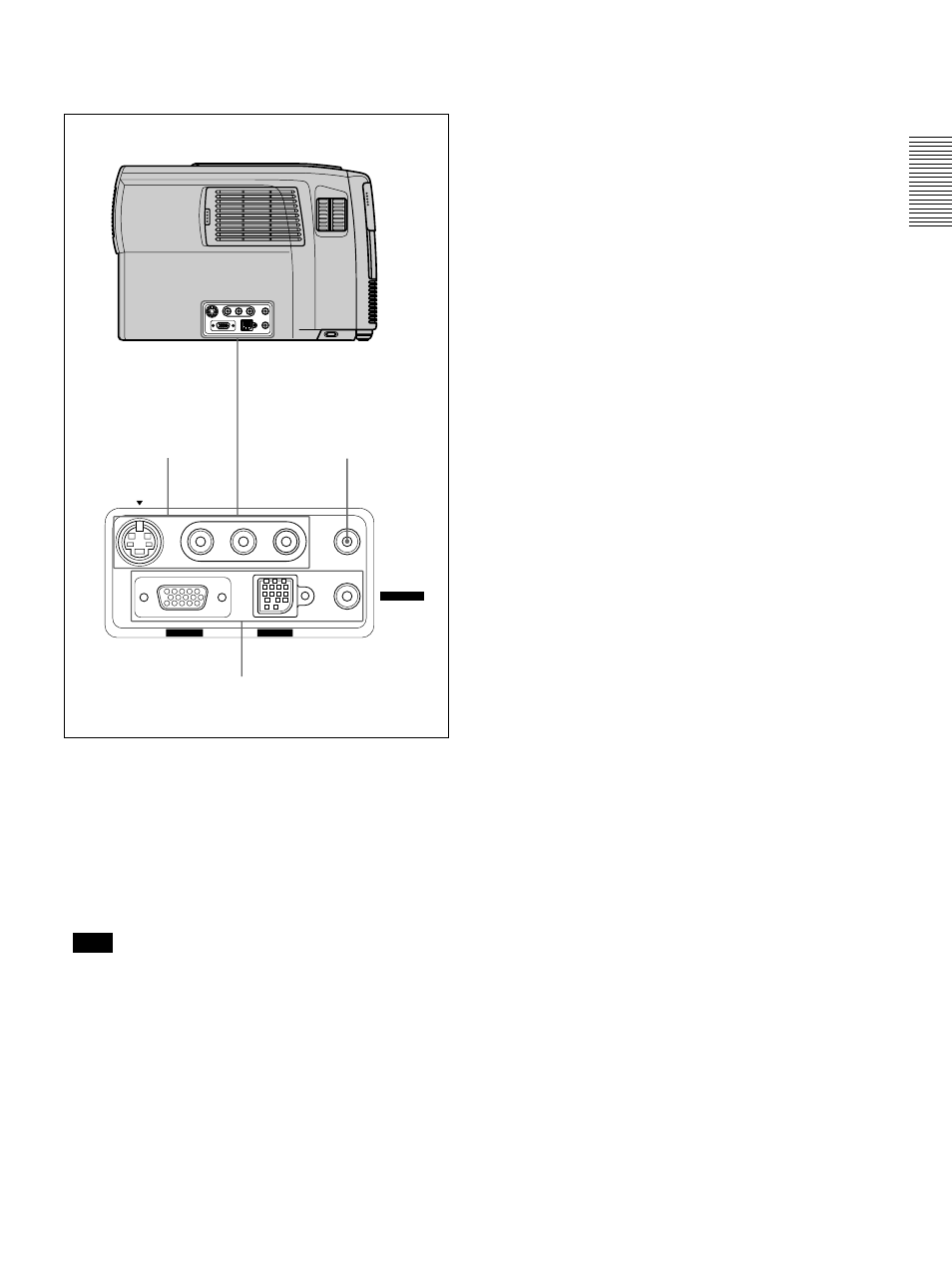

Connector panel

1

Video/audio input connector

Connect to external video equipment such as a VCR.

S VIDEO (mini DIN 4-pin):

Connects to the

S video output (Y/C video output) of a video
equipment.

VIDEO (phono type): Connects to the composite

video output of video equipment.

Note

If you connect video equipment to both the
S VIDEO and VIDEO jacks, the signal from the
S VIDEO jack is selected. When projecting the
picture via the VIDEO jack, be sure not to connect a
cable to the S VIDEO jack.

AUDIO input L (MONO)/R jacks (phono type):

Connect to the audio output of equipment. For
stereo equipment, use both the L and R jacks; for
monaural equipment, use the L (MONO) jack
only.

Right side

Location and Function of Controls

2

INPUT A connector

Connect to external equipment such as a computer.
You can control the mouse signal with the Remote
Commander.

INPUT A (HD D-sub 15-pin, female): Connects to

the monitor output on a computer using the
supplied cable. When inputting a component or,
15k RGB signal, use the optional cable.

MOUSE (13-pin): Connects to the mouse port on a

computer to control the mouse function using the
supplied mouse cable.

AUDIO IN (stereo minijack): Connects to the

audio output on a computer to input the audio
signal.

3

AUDIO OUT jack (stereo minijack)

Connects to external active speakers.
The volume of the speakers can be controlled by the
VOLUME keys on the Remote Commander or the
control panel.

S VIDEO

VIDEO

L AUDIO R

AUDIO OUT

AUDIO IN

MOUSE

INPUT A

1

3

2
