Asus RS500A-E6/PS4 User Manual

Page 39

  • Text mode
  • Original mode
background image

2-21

ASUS RS500A-E6/PS4

2.8.3

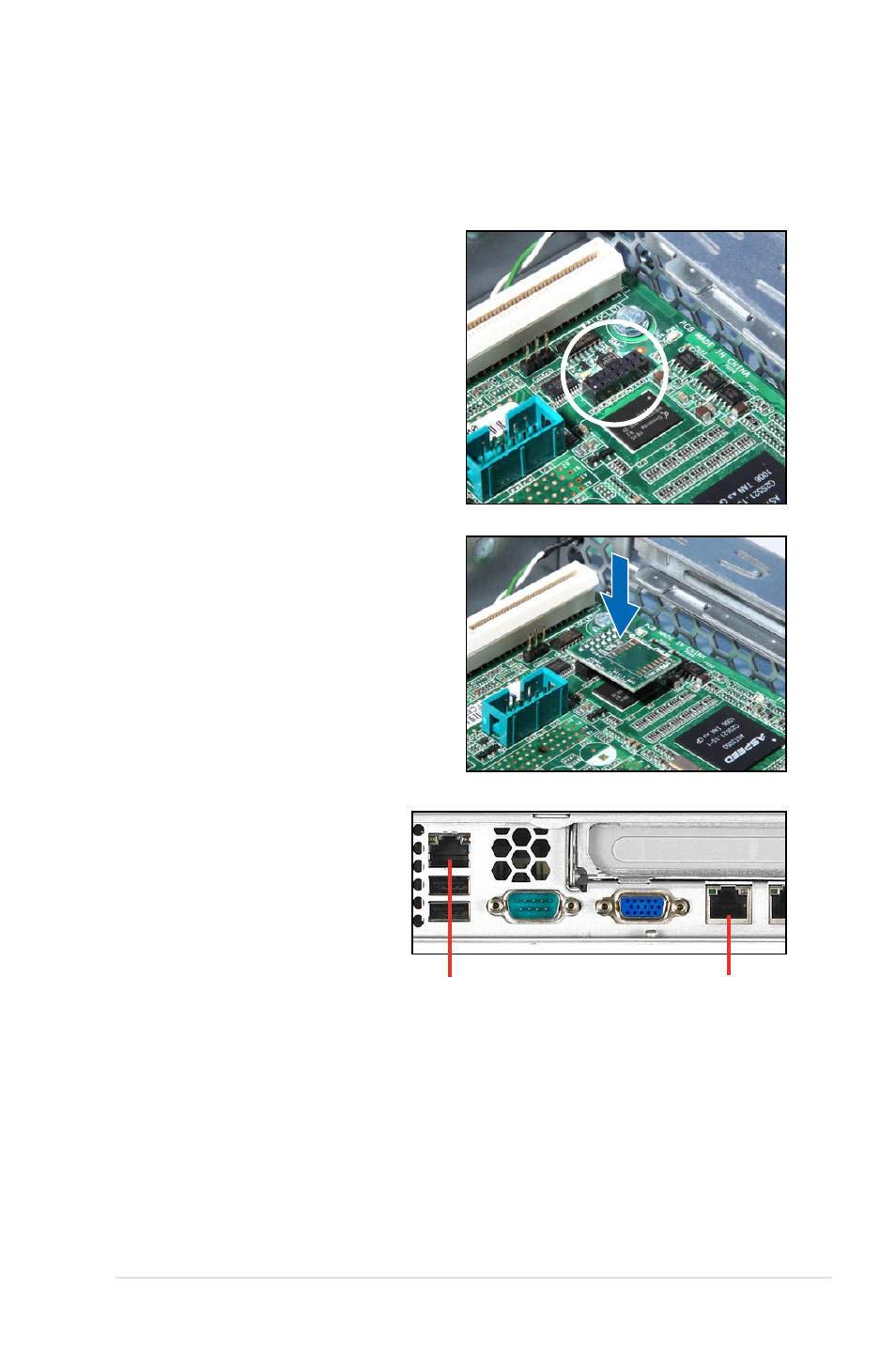

Installing ASMB4 series management board (optional)

Follow the steps below to install an optional ASMB4 series management board on

your motherboard.

3. Insert the LAN cable plug to

the LAN port 3 (dedicated

LAN) or LAN port 1 (shared

LAN) for server management.

LAN port 3

LAN port 1

1. Locate the BMC_FW header on the

motherboard.

2. Orient and press the ASMB4

management card in place.
