SPECIFICATIONS:
The manufacturer accepts a 1/4” variance. There are variations on each tub and specifications are subject to change as we improve upon our product as required. The dimensions needed for site preparation
and structure building should be measured from the tub; Aquatic Industries, Inc. assumes no responsibility for preparatory work.
www.aquaticwhirlpools.com 800.555.5324
March 2008

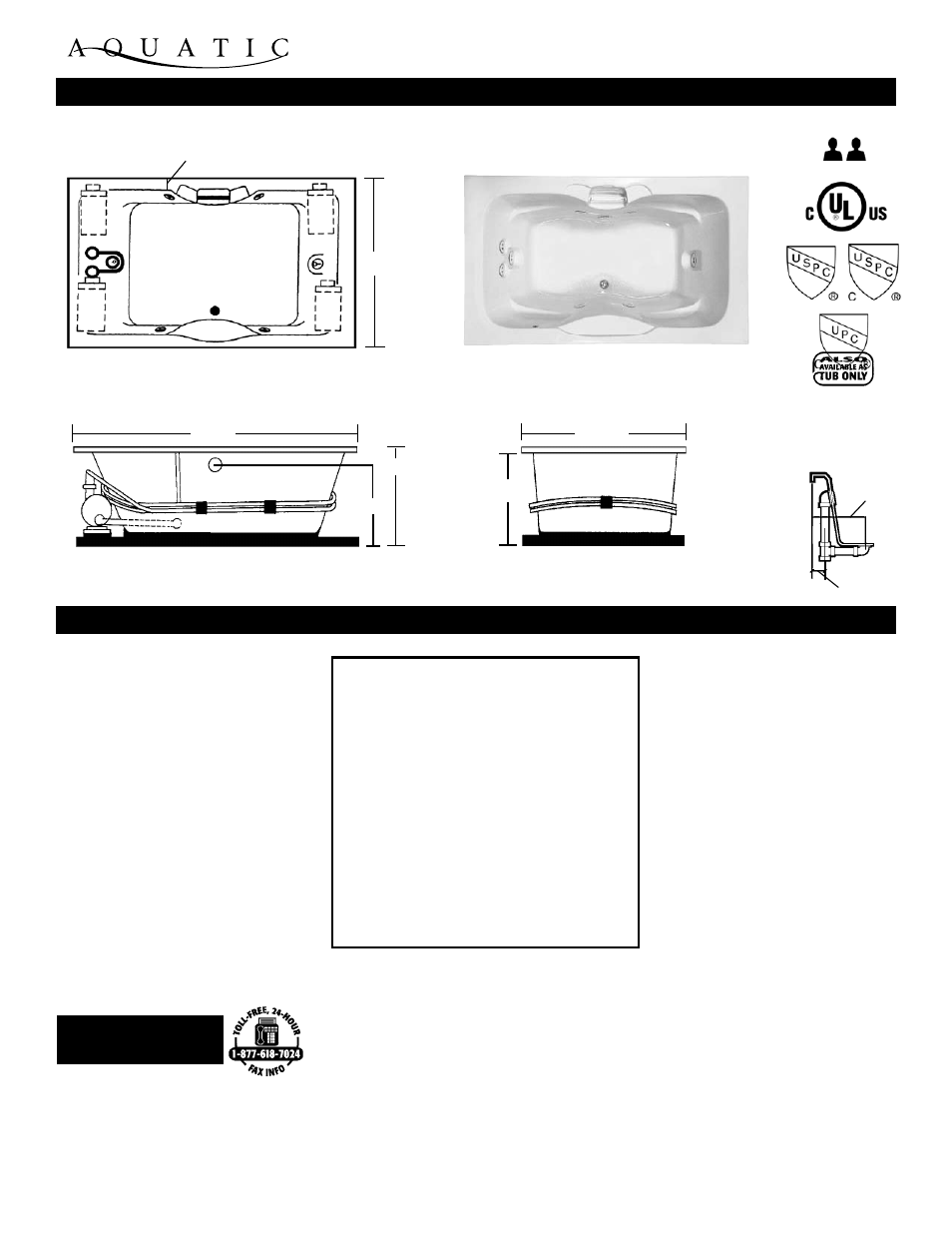

Rough-In Plumbing
Measurements
42 3/16”
18 3/4”
Note: Tub Only units do not come standard
with the Pre-leveled ABS Support Base.
42 3/16”
21 1/2”
71 1/2”
23 1/4”
Two Person Bath
Deck Width
1 1/2”
luxury SErIES
Model # ai7242R / ai7242RTo (Tub only)
ClEArwATEr
GeNeRAl SPecIfIcATIONS:
Tub Size 71 1/2” x 42 3/16” x 23 1/4”
182 cm x 107 cm x 59 cm
Bathing Well 43” long
24” wide
22” interior depth
Shipping Weight 247 lbs. / 112 kg
Tub Weight Filled 877 lbs. / 398 kg
Tub Only Weight 154 lbs. / 70 kg
Gallons to Overflow 90 gal. / 341 L
Gallons to Operate 1 bather: 71 gal. / 269 L
2 bathers: 52 gal. / 197 L
elecTRIcAl SPecIfIcATIONS:
Pump 1.75 HP; 12 AMP; 110V
Requirement 15 AMP; 110V, separate circuit
required protected w/ Class A GFCI
Optional Heater 1.5 kW; 12.5 AMP; 110V
Requirement 15 AMP; 110V, separate circuit
required protected w/ Class A GFCI
OPTIONAl equIPMeNT:
•
Chromatherapy LED Lighting
•
Comfort Pillow - Oval or Rectangle
•
Jet Finish
- Chrome, Polished Brass, Gold, Polished Nickel
or Satin Nickel
• Grab Bar
- White, Biscuit, Chrome, Polished Brass, Gold,
Polished Nickel, Satin Nickel or Oil Rubbed Bronze
•
1.5 kW Inline Maintenance Heater
• Lift & Turn Waste and Overflow
- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel or Oil Rubbed Bronze
• Cable Drive Waste and Overflow
- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel, Oil Rubbed Bronze or
Color Matched (Bone, White and Biscuit Only)
•
Factory Installed Rigid ABS Tile Flange
•
2 HP, 3-Speed Run-Dry Pump Upgrade
•
Pre-leveled ABS Support Base (Tub Only)
•
Optional Pump Location
•
Remote Pump Location
•
Color Matched Acrylic Skirt
• Hand Held Jet - Chrome or Polished Brass
• Premium Colors
All acrylic colors featured by Aquatic match the
industry’s leading fixture manufacturers.
8 Hydrotherapy Jets including:
- 4 Full Size Pressure-Flo Hydrotherapy Jets
- 2 Recessed Rotary Massage Jets
- 2 StressEaz Neck & Shoulder Therapy Jets
Aquatic quality features:
- 1.75 HP Run-Dry Pump with 20-Minute Timer
- Bath-Side On/Off Electronic Button
- ”Quiet Pad”
Anti-Vibration Pump Mount for Quiet Pump Operation
- Color Matched Grab Bar
- 4 Arm Rests
- Slip Resistant Floor
- Pre-leveled ABS Support Base (Whirlpool)
- Heat-bent Rigid PVC Piping for Optimum Sanitary Conditions
- Durable, Easy to Clean, Lucite® Cast Acrylic Surface
- Available in 8 Standard No-Charge Colors
ul & IAPMO listed, factory Tested
limited lifetime Warranty
STANdARd equIPMeNT:
fax-On-demand
document # 1036
