KM0832 User Manual
92
To back up system settings:
1. If you are not logged in to the KM0832 Administrator Utility, open the
KM0832 Login page and login. The KM0832 Administrator Utility Main
Screen will appear.

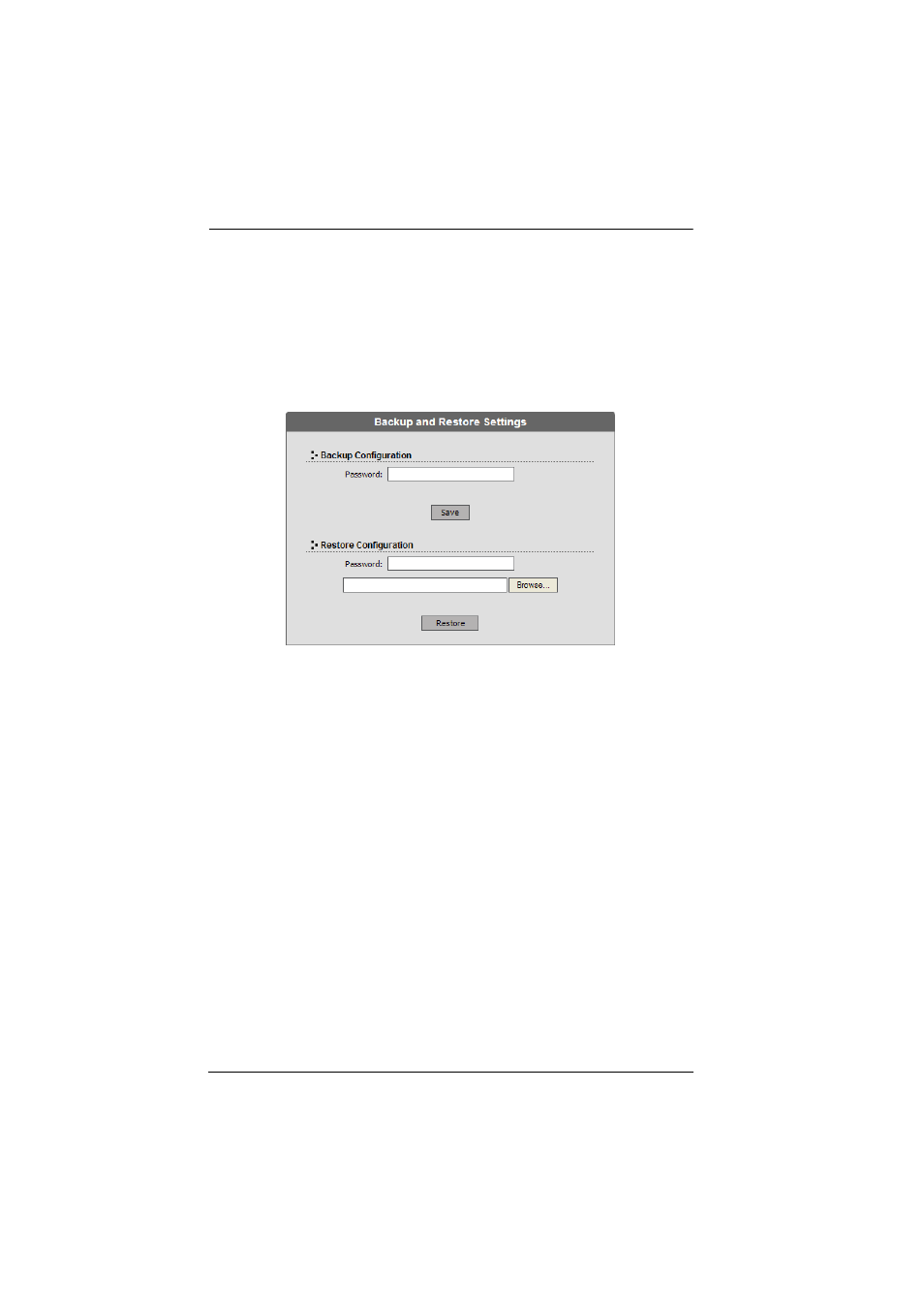

2. Click the Backup icon. The Backup and Restore Settings Webpage
appears.
3. Under Backup Configuration, enter a password for the backup
configuration file if you want password protect it; otherwise, leave this
field blank. There are no restrictions on characters that can be used in
passwords.
4. Click Save. The File Download dialog box appears.
5. Click Save. The Save As dialog box appears.
6. Navigate to the directory where you want to save the file and click Save.
The backup configuration file is saved in the directory.
