SPECIFICATIONS:
The manufacturer accepts a 1/4” variance. There are variations on each tub and specifications are subject to change as we improve upon our product as required. The dimensions needed for site preparation
and structure building should be measured from the tub; Aquatic Industries, Inc. assumes no responsibility for preparatory work.
www.aquaticwhirlpools.com 800.555.5324
March 2008

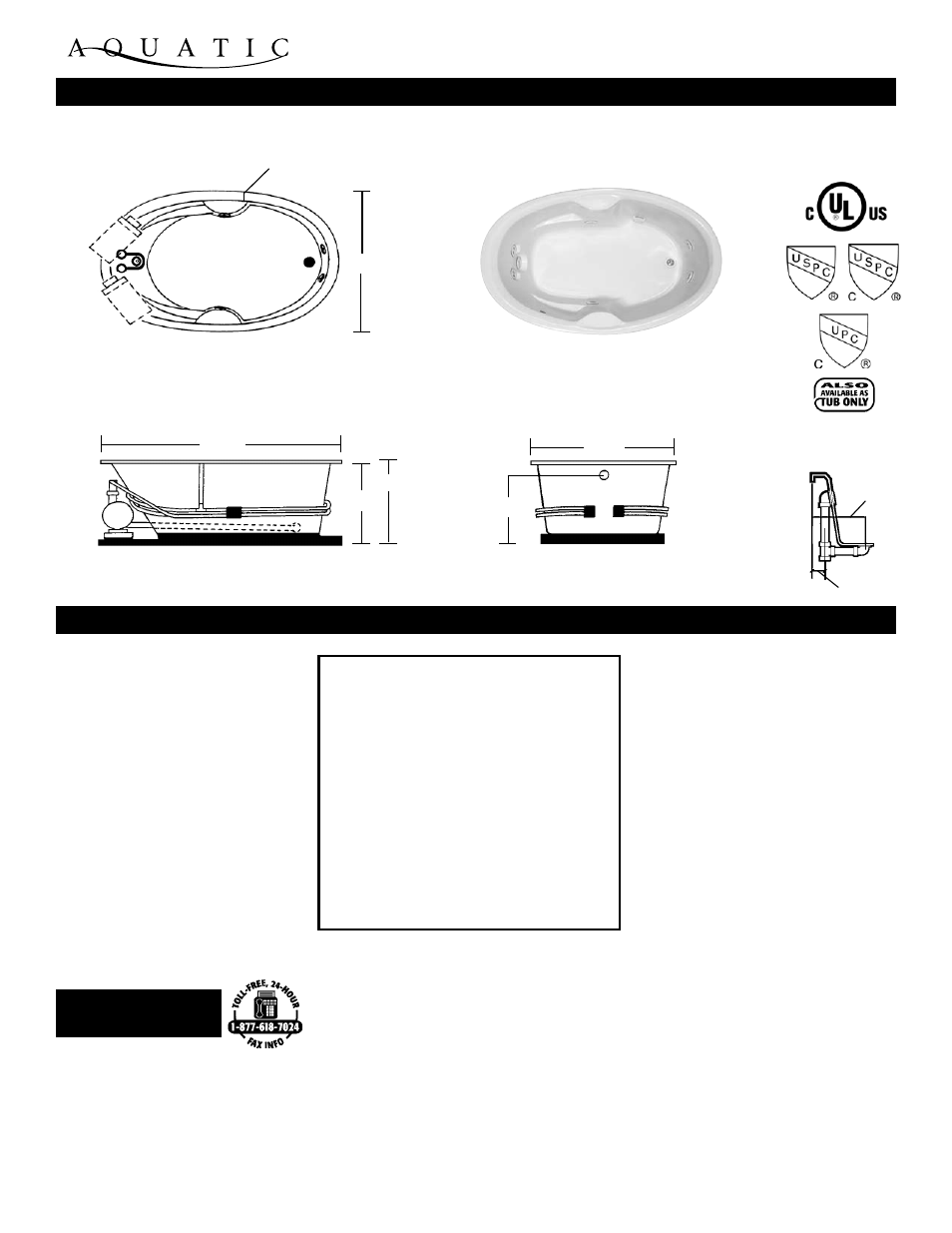

Rough-In Plumbing
Measurements
16 1/2”
59 1/2”
18 1/2”
20 1/4”
37 3/4”
SAN SImEON
luxury SErIES
Model # AI6038o / AI6038oto (tub only)
GeneRal SPecIfIcatIonS:
Tub Size 59 1/2” x 37 3/4” x 20 1/4”
151 cm x 96 cm x 51 cm
Bathing Well 42” long
25” wide
19” interior depth
Shipping Weight 179 lbs. / 81 kg
Tub Weight Filled 641 lbs. / 291 kg
Tub Only Weight 97 lbs. / 44 kg
Gallons to Overflow 60 gal. / 227 L
Gallons to Operate 41 gal. / 155 L
electRIcal SPecIfIcatIonS:
Pump 1.75 HP; 12 AMP; 110V
Requirement 15 AMP; 110V, separate circuit
required protected w/ Class A GFCI
Optional Heater 1.5 kW; 12.5 AMP; 110V
Requirement 15 AMP; 110V, separate circuit
required protected w/ Class A GFCI
• Chromatherapy LED Lighting
• Comfort Pillow - Oval or Rectangle
• Jet Finish
- Chrome, Polished Brass, Gold, Polished Nickel
or Satin Nickel
•
Bolt-On Grab Bars
- White, Biscuit, Chrome, Polished Brass, Gold,
Polished Nickel, Satin Nickel or Oil Rubbed Bronze
•
1.5 kW Inline Maintenance Heater
• Lift & Turn Waste and Overflow
- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel or Oil Rubbed Bronze
•
Cable Drive Waste and Overflow
- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel, Oil Rubbed Bronze or
Color Matched (Bone, White and Biscuit Only)
•
2 HP, 3-Speed Run-Dry Pump Upgrade
•
Optional Pump Location
•
Remote Pump Location
• Pre-leveled ABS Support Base (Tub Only)
•
Hand Held Jet - Chrome or Polished Brass
•
Premium Colors
All acrylic colors featured by Aquatic match the
industry’s leading fixture manufacturers.
oPtIonal equIPMent:
note: tub only units do not come standard
with the Pre-leveled aBS Support Base.
7 Hydrotherapy Jets including:
- 4 Full Size Pressure-Flo Hydrotherapy Jets
- 2 StressEaz Neck & Shoulder Therapy Jets
- 1 Recessed Rotary Massage Jet
aquatic quality features:
- 1.75 HP Run-Dry Pump with 20-Minute Timer
- Bath-Side On/Off Electronic Button
- ”Quiet Pad”
Anti-Vibration Pump Mount for Quiet Pump Operation
- 2 Arm Rests
- Slip Resistant Floor
- Pre-leveled ABS Support Base (Whirlpool)
- Heat-bent Rigid PVC Piping for Optimum Sanitary Conditions
- Durable, Easy to Clean, Lucite® Cast Acrylic Surface
- Available in 8 Standard No-Charge Colors
ul & IaPMo listed, factory tested
limited lifetime Warranty
StandaRd equIPMent:
fax-on-demand
document # 1050
