Aquatic Serenity 5 AI5AIR6636 - Manual

74
SPECIFICATIONS:
The manufacturer accepts a 1/4” variance. There are variations on each tub and specifications are subject to change as we improve upon our product as required. The dimensions needed for site preparation
and structure building should be measured from the tub; Aquatic Industries, Inc. assumes no responsibility for preparatory work.
www.aquaticwhirlpools.com 800.555.5324
October 2008

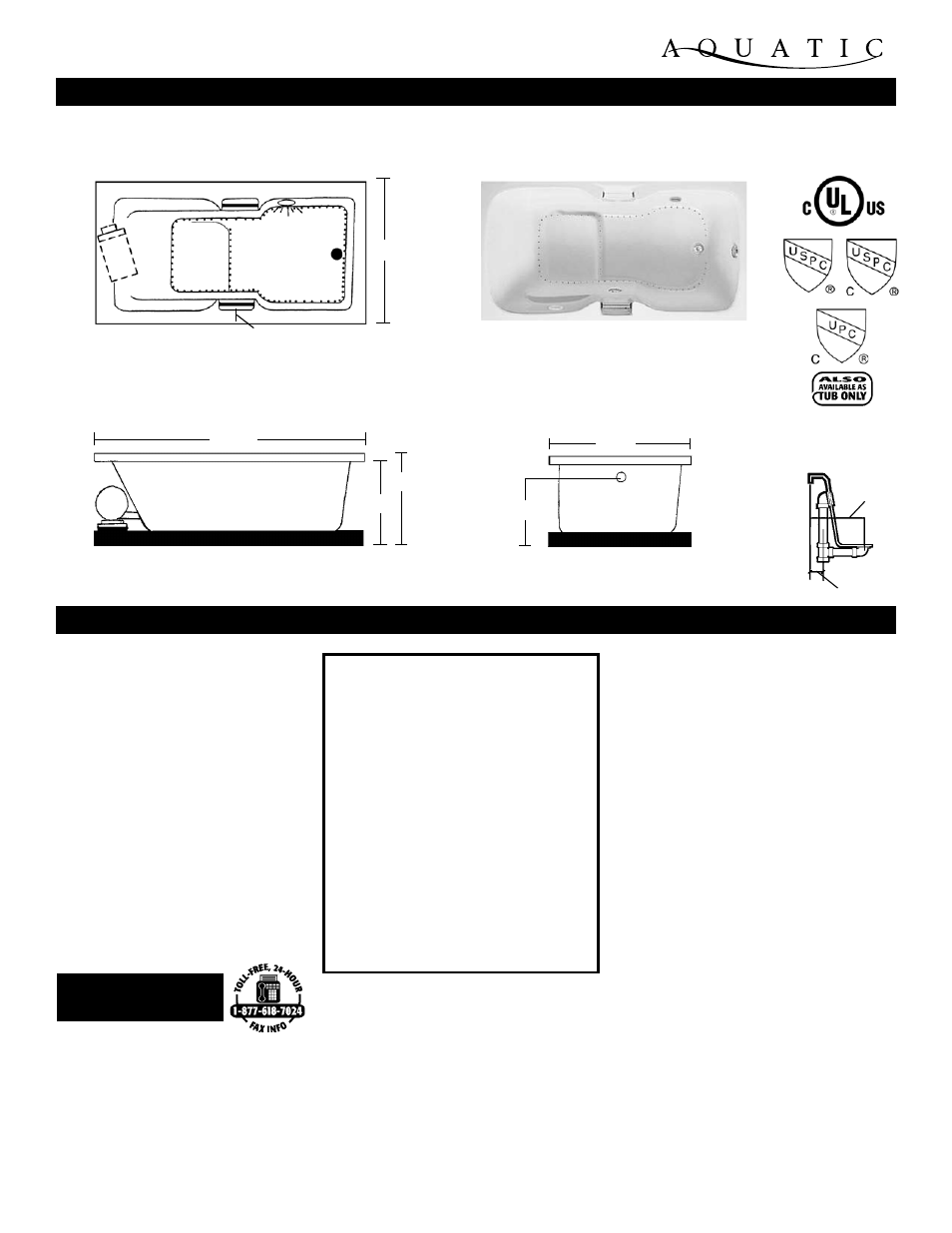

Rough-In Plumbing
Measurements
GeneRal SPecIfIcatIonS:
Tub Size 65 3/4” x 35 3/8” x 23”
167 cm x 90 cm x 58 cm
Bathing Well 44” long
25” wide
21 3/4” interior depth
Shipping Weight 221 lbs. / 100 kg
Tub Weight Filled 826 lbs. / 375 kg
Tub Only Weight 100 lbs. / 45 kg
Weight w/Equipment 120 lbs. / 54 kg
Gallons to Overflow 85 gal. / 322 L
electRIcal SPecIfIcatIonS:
Blower/Heater 1 HP; 10.5 AMP; 120V
Requirement 15 AMP; 120V, separate circuit
required protected w/ Class A GFCI
This unit is not recommended for shower installations.
SErENITy Air Baths
Model # AI5AIR6636 / AI5AIR6636To (Tub only)
• Comfort Pillow - Oval or Rectangle
•
Grab Bar
- White, Biscuit, Chrome, Polished Brass, Gold,
Polished Nickel, Satin Nickel or Oil Rubbed Bronze
•
Lift & Turn Waste and Overflow
- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel or Oil Rubbed Bronze
• Cable Drive Waste and Overflow
- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel, Oil Rubbed Bronze or
Color Matched (Bone, White and Biscuit Only)
• Waterproof Remote Control with infrared sensor
and 25’ cord
•
Factory Installed Rigid ABS Tile Flange
• Remote Blower Wiring Kit
• Color Matched Acrylic Skirt
• Premium Colors
All acrylic colors featured by Aquatic match the
industry’s leading fixture manufacturers.
oPtIonal equIPMent:
air Bath System:
- 67 Air Jets
- 1 HP Variable Speed Air Blower with 20-Minute Timer
- 600 Watt Air Heating System
- Electronic Control Package with Wave and Pulse Features
- Automatic Purge and Dry Cycle with Water Sensor
aquatic quality features:
- Chromatherapy
- Raised Seat For Air Jet Action on Thighs
- Slip Resistant Floor
- Air Channels Lined with Antimicrobial Coating
- 2 Arm Rests
- Extra Deep and Long Bathing Well
- Pre-leveled ABS Support Base
- 2 Color Matched Grab Bars
- Durable, Easy to Clean, Lucite® Cast Acrylic Surface
- Available in 8 Standard No-Charge Colors
ul & IaPMo listed, factory tested
limited lifetime Warranty
StandaRd equIPMent:
Each Serenity Air Bath model is equipped with a 600 watt air heating system to raise the temperature of the air going into the bath. This air temperature will
be less than the bathing temperature of the water, but will help to reduce a rapid decrease in water temperature. In addition, the air coming from the air jets
will feel cool against the skin, just as a breeze on a warm day cools your body. This system does not heat the water.
SErENITy 5
20 1/8”
35 3/8” 65 3/4”
note: Serenity tub only models feature
a Pre-leveled aBS Support Base.
fax-on-demand
document # 1142
23”
22”
35 3/8”
2”
1 3/4”
10”
