Functional Overview

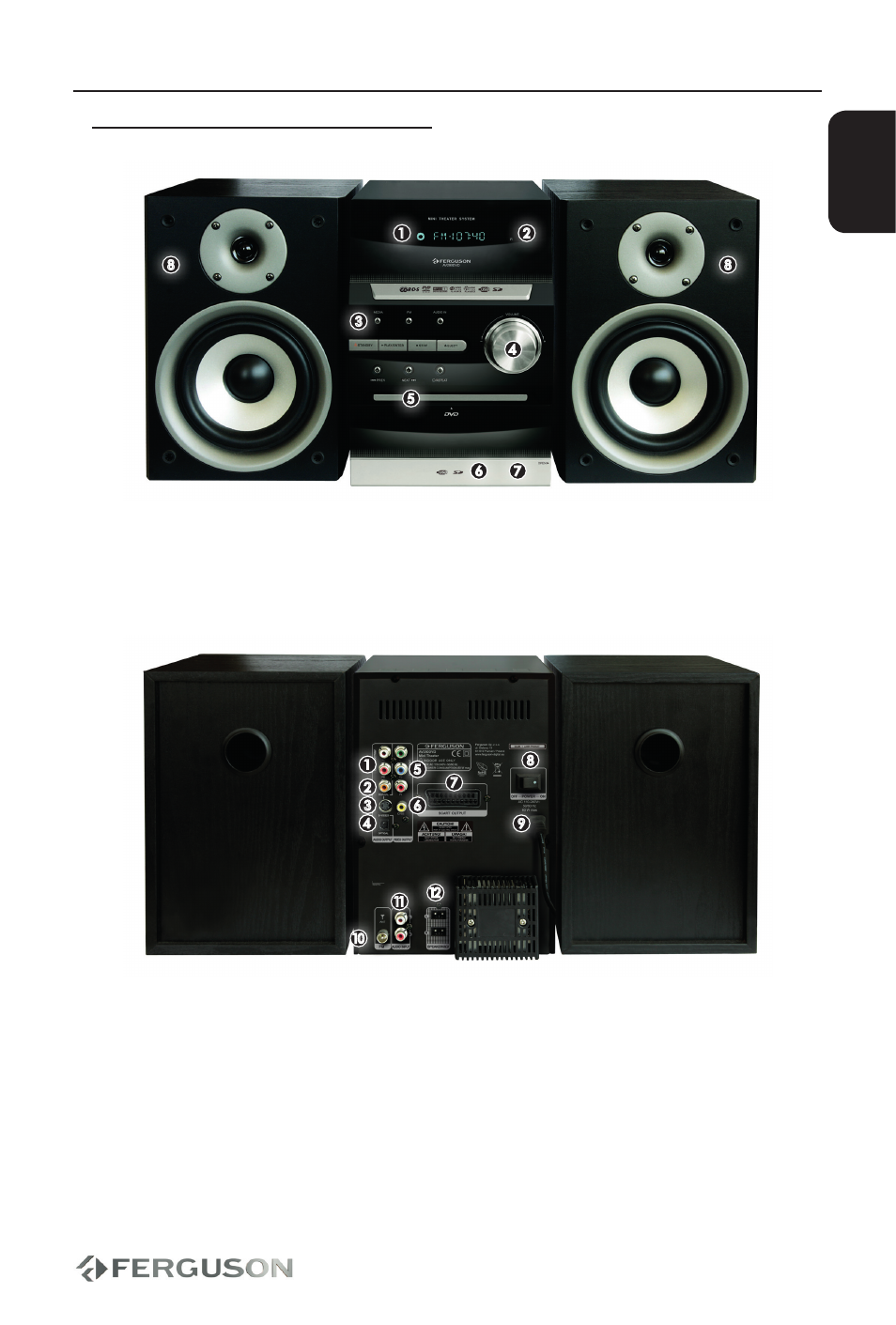

Front and Rear panel
A
VFD display - Shows information
about the current status
B
IR Sensor - Point the remote control
towards this sensor
C
Function buttons - various functions
D
Volume knob - adjust volume
F CVBS (Composite Video Out) -
connect to CVBS video input of a TV
G
SCART - connect to SCART input of a TV
H
Power Switch - power on/off
I
Main (AC Power Cord) - connect to a
standard AC outlet
J
FM Antenna Interface
K Stereo Audio In - connect to audio left
and right input of a stereo system
L
L/R SPEAKER Out
E
Disc tray
F
Card reader - Input the supported
flash card. SD, MMC
G
USB 2.0 port - Input the supported
USB device
H
Speakers
A Stereo Audio Out - connect to audio
left and right input of a stereo system
B
COAXIAL (Digital Audio Out) - connect
to coaxial audio input of an amplifier
C
S-Video - connect to S-Video
compatible device
D
OPTICAL (Digital Audio Out) - connect
to coaxial audio input of an amplifier
E Component Video Out - connect to
YPbPr input of a TV
