would now be corrected. Once the first satellite is perfectly set, all the other satellites in the arc
would also be automatically set as soon as the orbital position of these additional satellites is
entered into the receiver.
Without USALS, the alignment of the antenna system is somewhat more difficult. DiSEqC 1.2
drives the antenna to the selected satellite position in almost the same way. But since the local
geographical data is missing, the motor drives to a satellite position based on the prime
meridian and the equator. Therefore, when aligning the motor for the first time – and then again
later on with all the other satellite positions – alignment with the actual satellite position has to
be achieved with the motor commands “move east/west”. Because of these difficulties,
manufacturers of these motors make available helpful software on their web sites that enable
you to easily calculate the true position of a satellite.
9. Connection Diagram

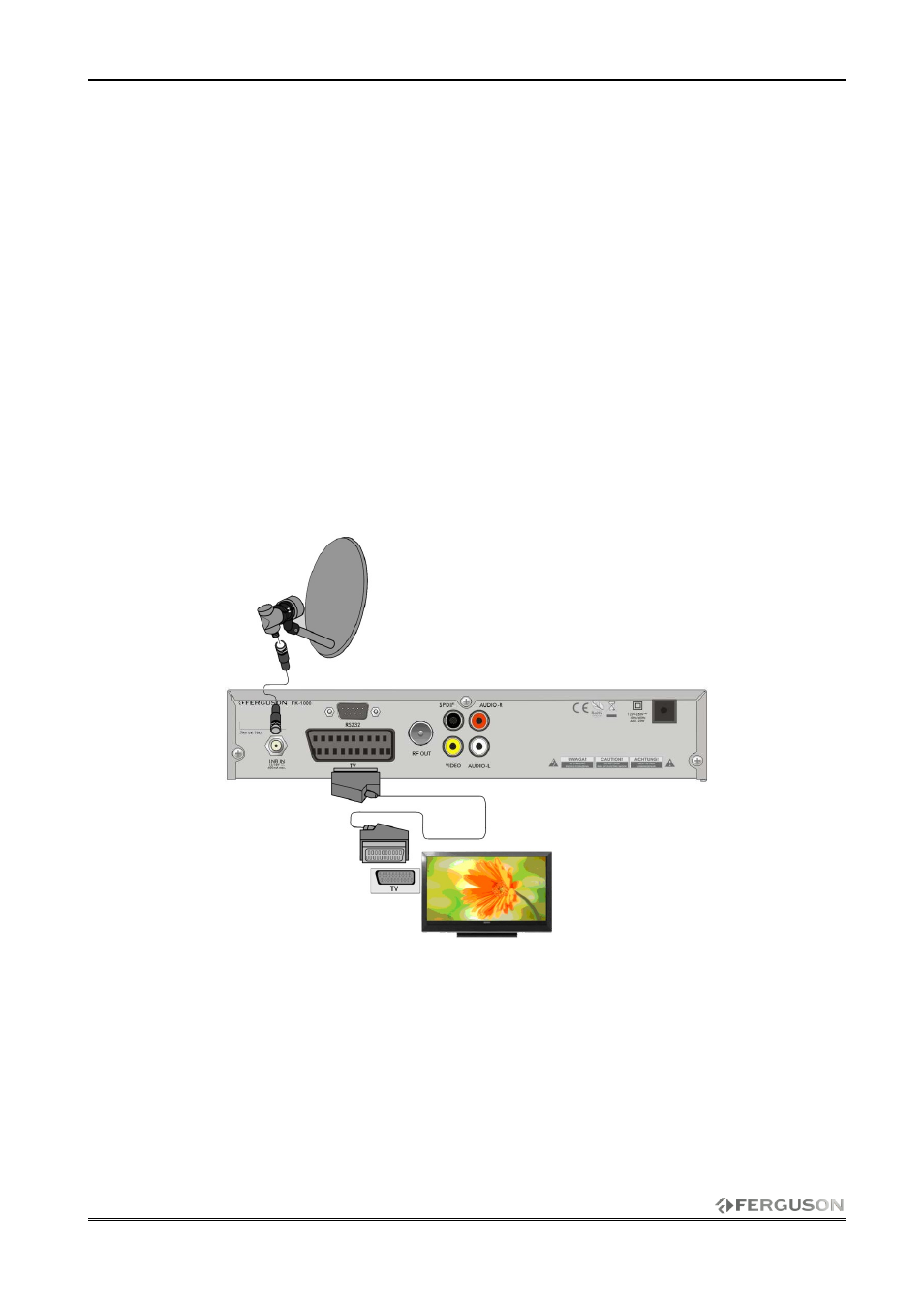

The following figure shows cable connections required for TV and other related electrical
equipment. If you need any assistance for specific equipment connection, please contact your
local dealer.
9.1 Connect SCART port (recommended)
• Connect the antenna with LNB IN of the STB.
• Connect to TV as following figure.
9.2 Connect composite port
• Connect LNB IN port on receiver to a satellite dish.
•
Connect the video and audio by means of three cinch cables to the television set. One
cable, coloured yellow used to send video. The two remaining cable, red and white, are
used to connect sound (right and left channel).
9
