Ch1. Before You Begin | 11

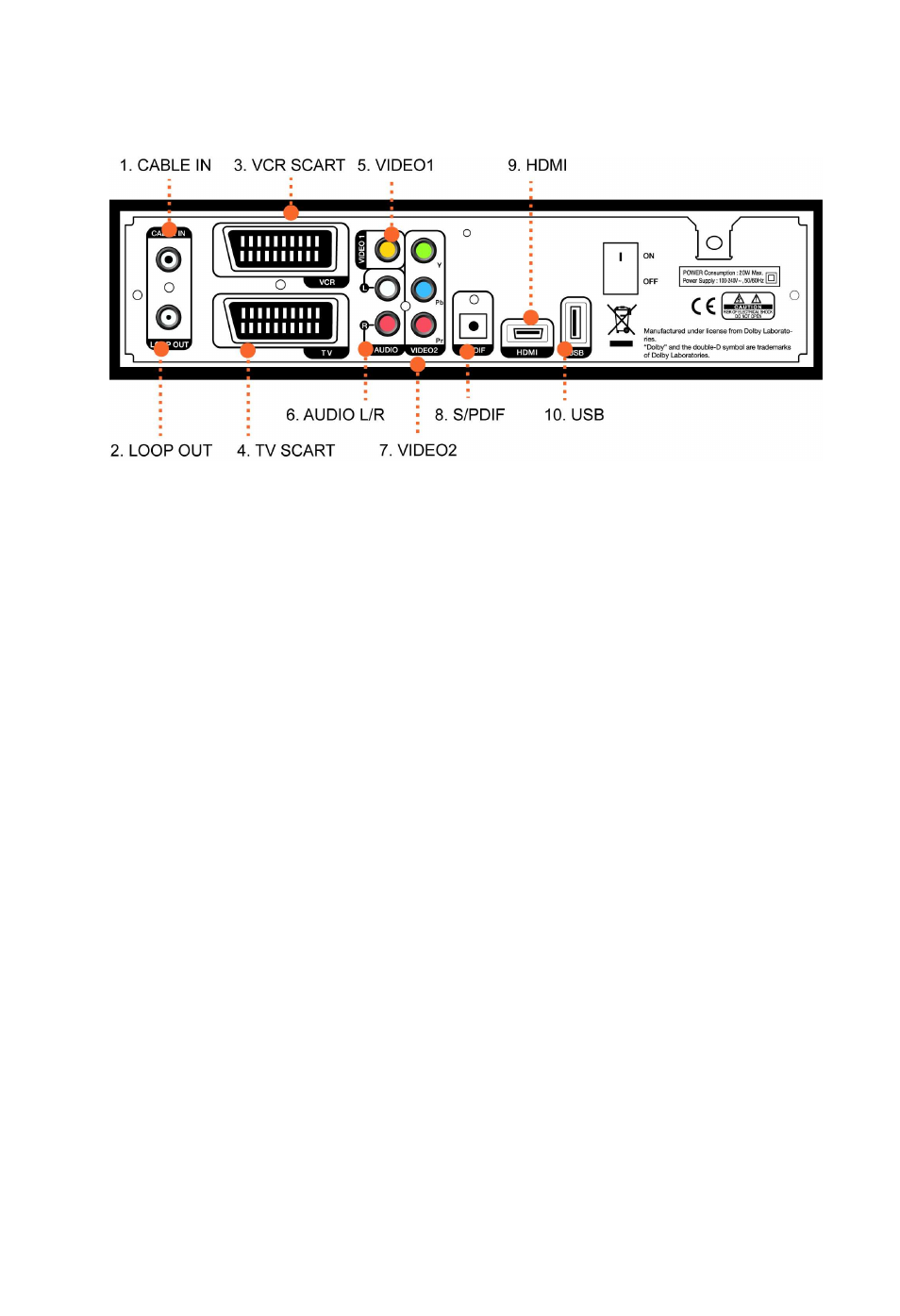

1.3.2 Rear Panel
1. CABLE IN
Connect to Cable.
2. LOOP OUT
Connect LOOP OUT to another set-top box via a Loop-through cable.
3. VCR SCART
Connect this connector to your VCR via a SCART cable.
4. TV SCART
Connect this connector to your TV via a SCART cable.
5. VIDEO1
Connect VIDEO to video input of your TV or VCR via a RCA cable.
6. AUDIO L/R
Connect AUDIO L/R to the matching Audio Inputs of your TV/VCR via a RCA cable.
7. VIDEO2(YPbPr)
Connect Y/Pb/Pr output of VIDEO2 to Y/Pb/Pr video input of your TV via a RCA cable.
8. S/PDIF
Connect S/PDIF to audio input of your amplifier with optical digital port via an optical cable.
9. HDMI
If you have TV supporting HDMI, connect HDMI to your TV using a HDMI cable.
10. USB
USB2.0 connector for software upgrade.
