AccuTemp ACCU-STEAM GAS GRIDDLE - Manual (Page 31)

Unless otherwise specified, Dimensions: Inches Bends: 90 Tolerances: Angular
1°
2 Place Decimal
.02
3 Place Decimal
.005
T.I.R
.005
√125 Micro Inches GD&T Per ANSI Y14.5M
AT2A-2819-2

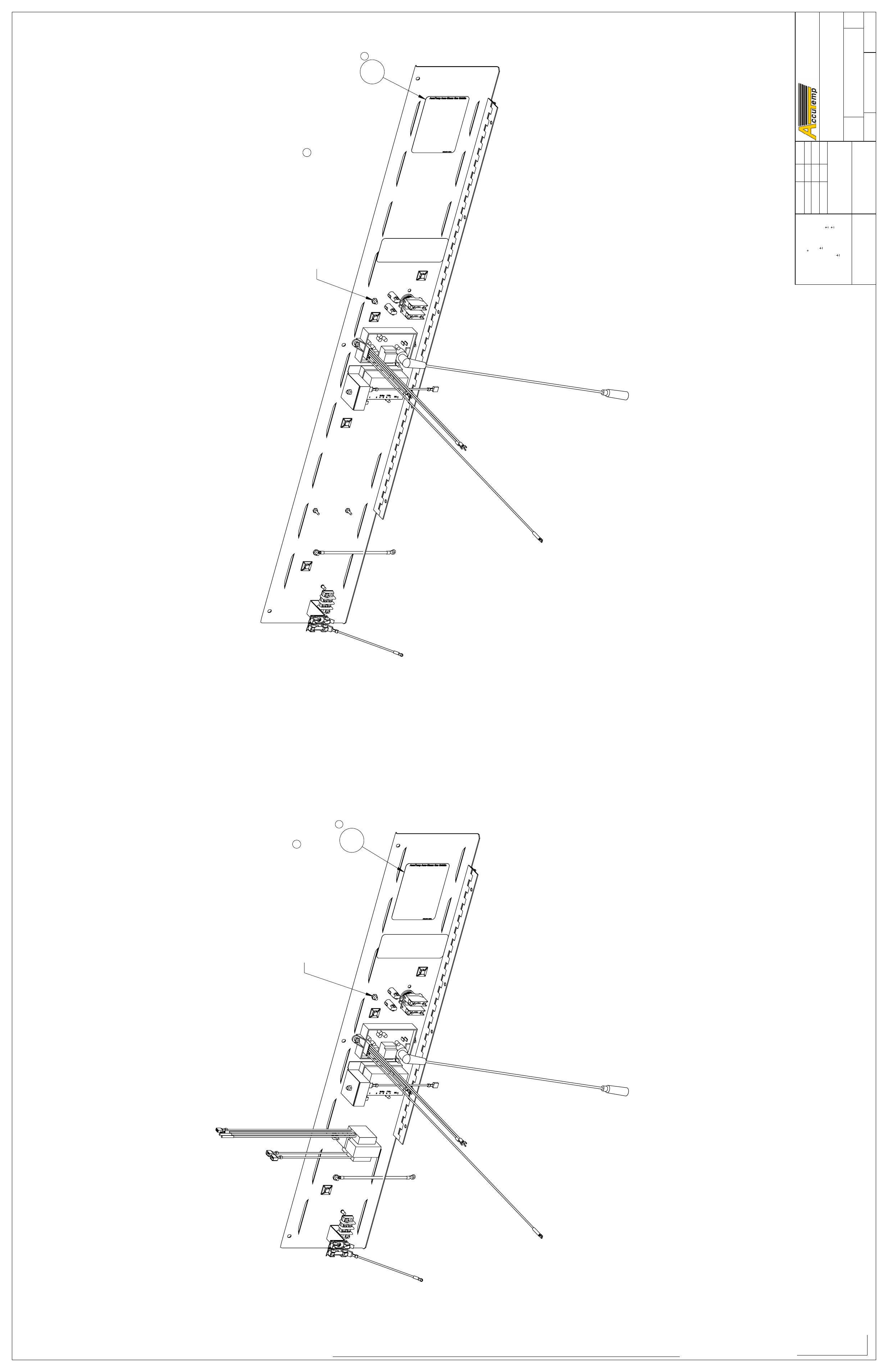

CONTROL PANEL 36"
OTHERWISE SAME AS AT2A-2819-1
F
21
USE THIS WELD STUD FOR AT0A-3506-1 GROUND CONNECTION
K
AT2A-2819-3
CONTROL PANEL 48"
OTHERWISE SAME AS AT2A-2819-1
F
21
USE THIS WELD STUD FOR AT0A-3506-1 GROUND CONNECTION
K
ECN:
Scale: 1:2
Sheet 2 of 3
D
Title:
Rev.
Drawing No.:
Size:
K
CONTROL PANEL
AccuTemp Products, Inc.
8415 N. Clinton Park Fort Wayne, IN 46825
Name
Date
Drawn Checked Project Eng
Do Not Scale Drawing
N/A
Finish:
N/A
Material:
Comments:
ALB
06-19-04 07-19-04
GLS GLS
07-19-04
AT2A-2819
Page 26/28
AT2T-3238-1 Rev.C ACCU-STEAMTM GAS GRIDDLE OWNERS MANUAL
