Hot Dog Corral
8
A.J. Antunes & Co.
P/N 1010609 Rev. I 03/12
1 2120121 spacer 2
2 3080158 screw, Pan Hd., #8-32 x 5/8” 2
3 3250104 Washer, flat, ss, 1/4” 2
4 3250169 shoulder bolt, socket Hd.,
5/16 x 1/2” 4
5 325P135 Jamnut, 1/4-20 4
(early style units only)
6 1150104 allen Wrench (not shown) 1
Item part Description Qty.
no.
food shield (Optional)
nOte: early style corrals do not have weldnuts
on inside of side covers. when installing the food
shield, jamnuts (5, figure 2) must be used.
1. turn the Rocker switch (Power On/Off) to Off
and unplug the power cord.
2. assemble the hardware to the left and right cover
panels as shown in figure 2.
3. If a non-pivoting food shield is desired, follow
Installation a. If a pivoting food shield is desired,
use Installation b.

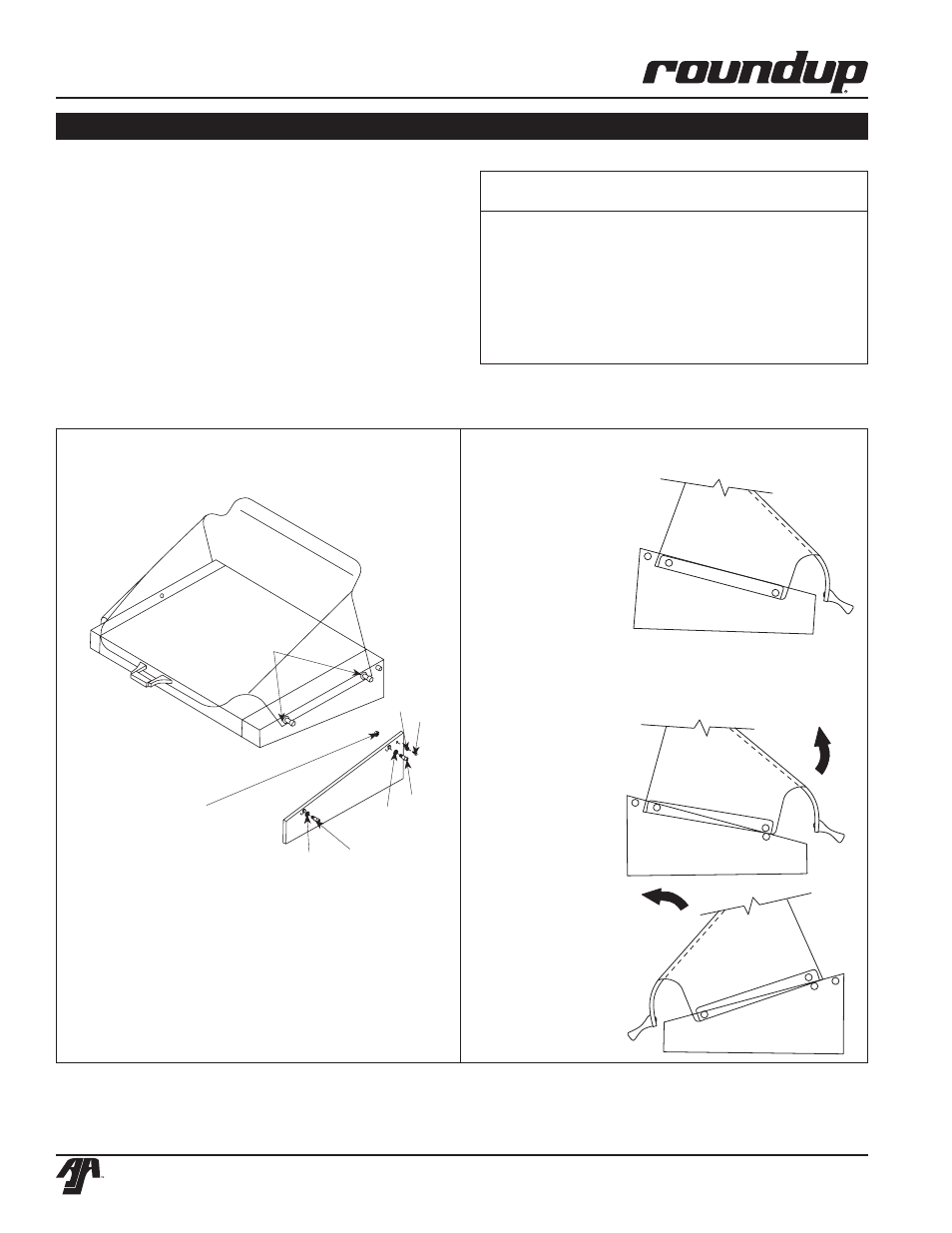

figure 2. Optional food shield Components
early style units do not
have a weldnut on the
inside of the panel and
must use a 1/4-20 hex
jamnut (p/n 325p125).
On early style panels
without weldnuts, it is
necessary to enlarge the
mounting holes to accept
the 1/4-20 shoulder bolts.
4
4
3
3
1
5
Install shoulder
bolts through all
mounting holes in
food shield.
nOte: sG-21 & sG-35 shown. sGH-20 uses
same mounting, but is shaped differently.
rear pivot - Install
rear shoulder bolts
through mounting
holes in food shield.
front of shield rests
on top of shoulder
bolts.
front pivot - Install
front shoulder bolts
through mounting
holes in food shield.
rear of shield rests
on top of shoulder
bolts.
2
Installation b–pivoting
Installation a–non-pivoting
InstallatIOn (continued)
