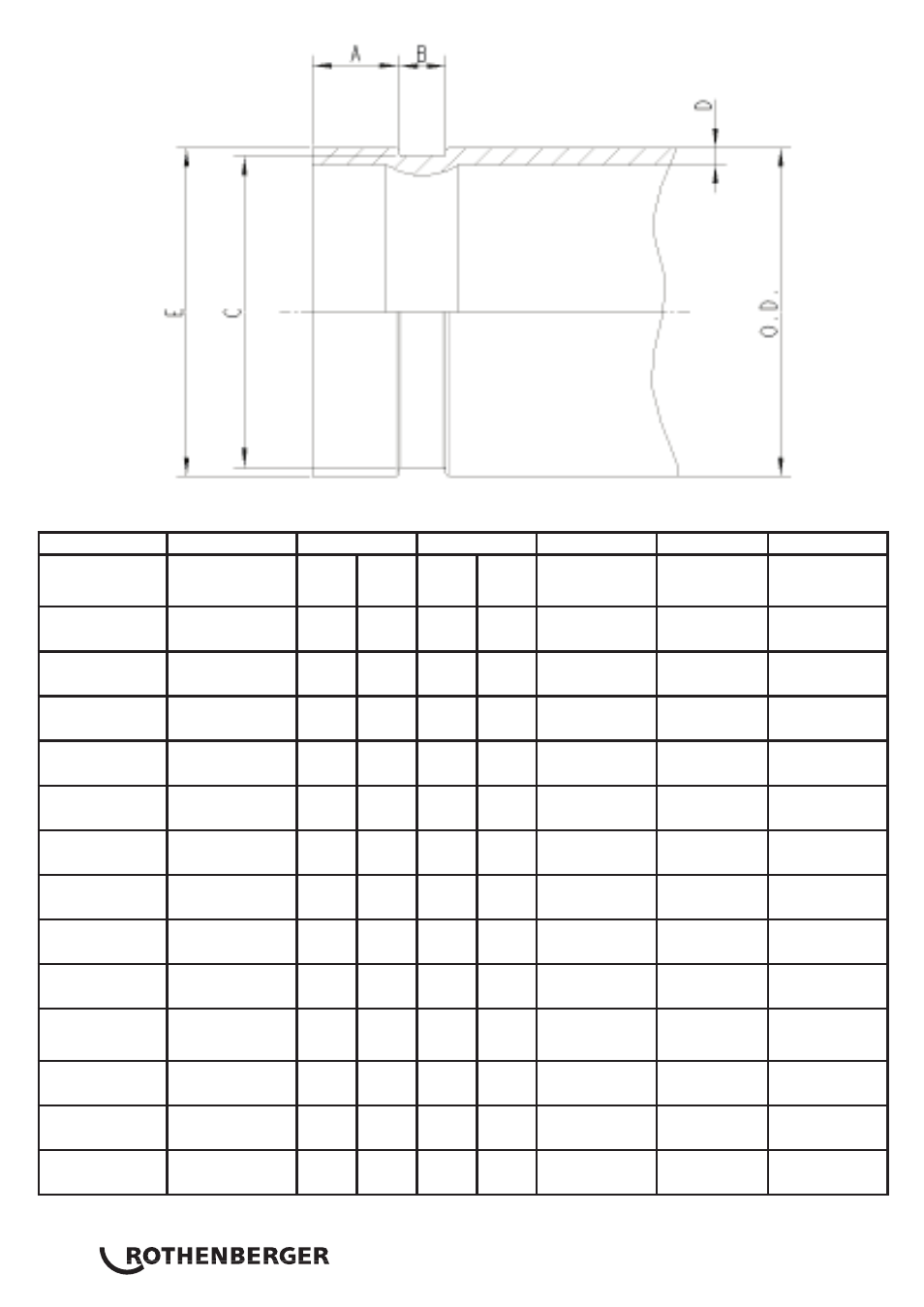

mm inch O.D. A B C D (min.) E (max.)
25 1 33.7
+0.33
15.88 ±0.76 7.14 ±0.76 30.23
+0
1.65 36.3
-0.33 -0.38
32 1 ¼ 42.4
+0.41
15.88 ±0.76 7.14 ±0.76 38.99
+0
1.65 45
-0.41 -0.38
40 1 ½ 48.3
+0.48
15.88 ±0.76 7.14 ±0.76 45.09
+0
1.65 51.1
-0.48 -0.38
50 2 60.3
+0.61
15.88 ±0.76 8.74 ±0.76 57.15
+0
1.65 63
-0.61 -0.38
65 2 ½ 73
+0.74
15.88 ±0.76 8.74 ±0.76 69.09
+0
2.11 75.7
-0.74 -0.46
80 3 88.9
+0.89
15.88 ±0.76 8.74 ±0.76 84.94
+0
2.11 91.4
-0.79 -0.46
90 3 ½ 101.6
+1.02
15.88 ±0.76 8.74 ±0.76 97.38
+0
2.11 104.1
-0.79 -0.51
100 4 114.3
+1.14
15.88 ±0.76 8.74 ±0.76 110.08
+0
2.11 116.8
-0.79 -0.51
120 4 ½ 127
+1.27
15.88 ±0.76 8.74 ±0.76 122.78
+0
2.41 129.5
-0.79 -0.51
125 5 141.3
+1.42
15.88 ±0.76 8.74 ±0.76 137.03
+0
2.77 143.8
-0.79 -0.56
150 6 168.3
+1.60
15.88 ±0.76 8.74 ±0.76 163.96
+0
2.77 170.9
-0.79 -0.56
200 8 219.1
+1.60
19.05 ±0.76 11.91 ±0.76 214.40
+0
2.77 223.5
-0.79 -0.64
250 10 273
+1.60
19.05 ±0.76 11.91 ±0.76 268.28
+0
3.4 277.4
-0.79 -0.69
300 12 323.9
+1.60
19.05 ±0.76 11.91 ±0.76 318.29
+0
3.96 328.2
-0.79 -0.76
