SECTION VII
PROCEDURE FOR FUNCTIONAL CHECK
OF REPLACEMENT COMPONENTS
1. Microprocessor Controller (Computer) Board
a. Upon completing installation of the replacement microprocessor controller (computer) board, reestablish
power to the dryer.
b. Start the drying cycle by pressing any of the preset cycles in letters A-F.
1. Basket (tumbler) in Forward Mode (clockwise [CW]).
2. Basket (tumbler) in Reverse Mode (counterclockwise [CCW]) indicator (for reversing models only).
3. Heat on indicator.
4. On indicator (dryer is in operation mode).
c. Verify that the motor(s) and the heat indicator dots, in the microprocessor controller (computer) light

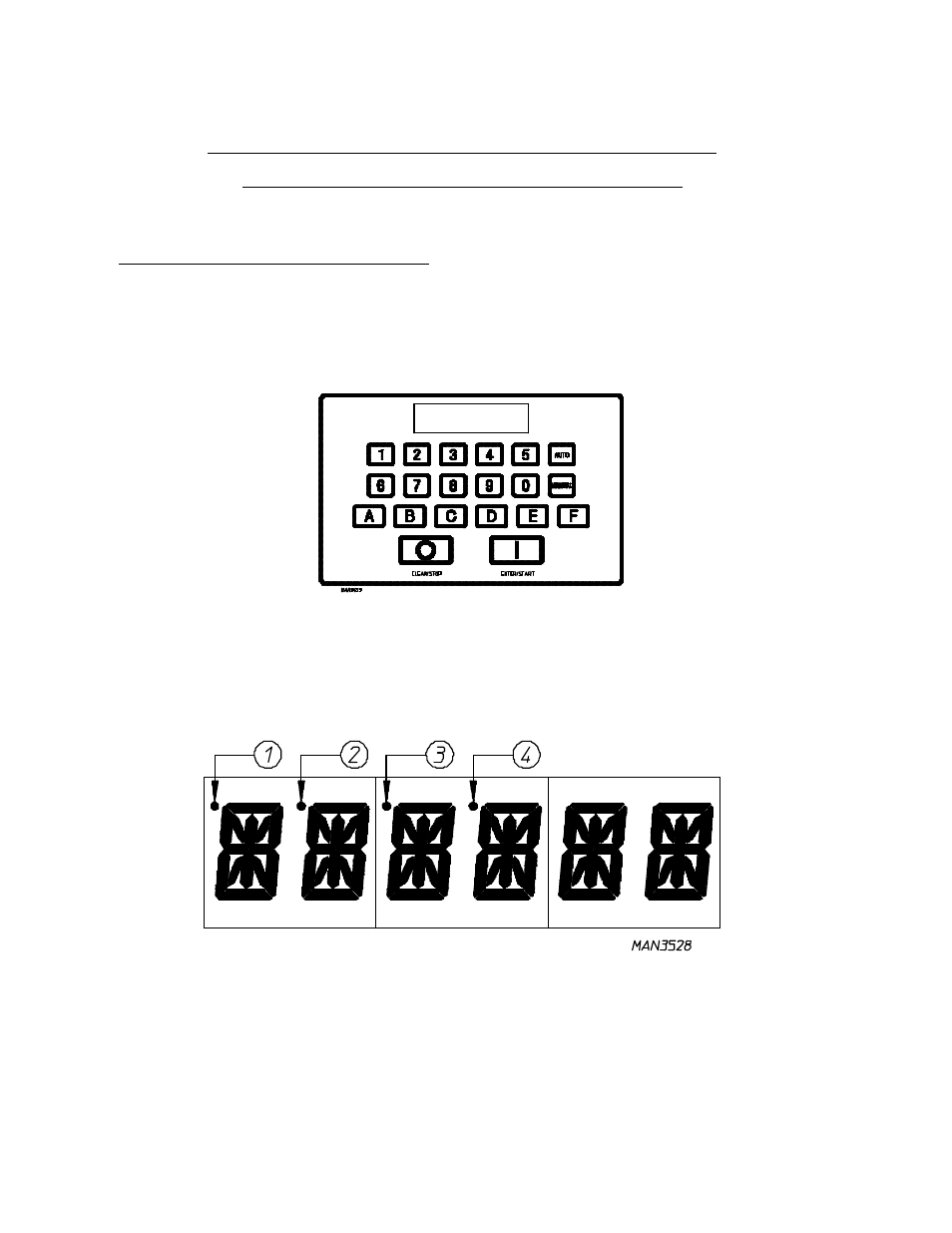

emitting diode (L.E.D.) display are on. (Refer to the illustration below.)
