FPM-3150 Series User Manual
20
Appendix C
OSD Operation Keypad

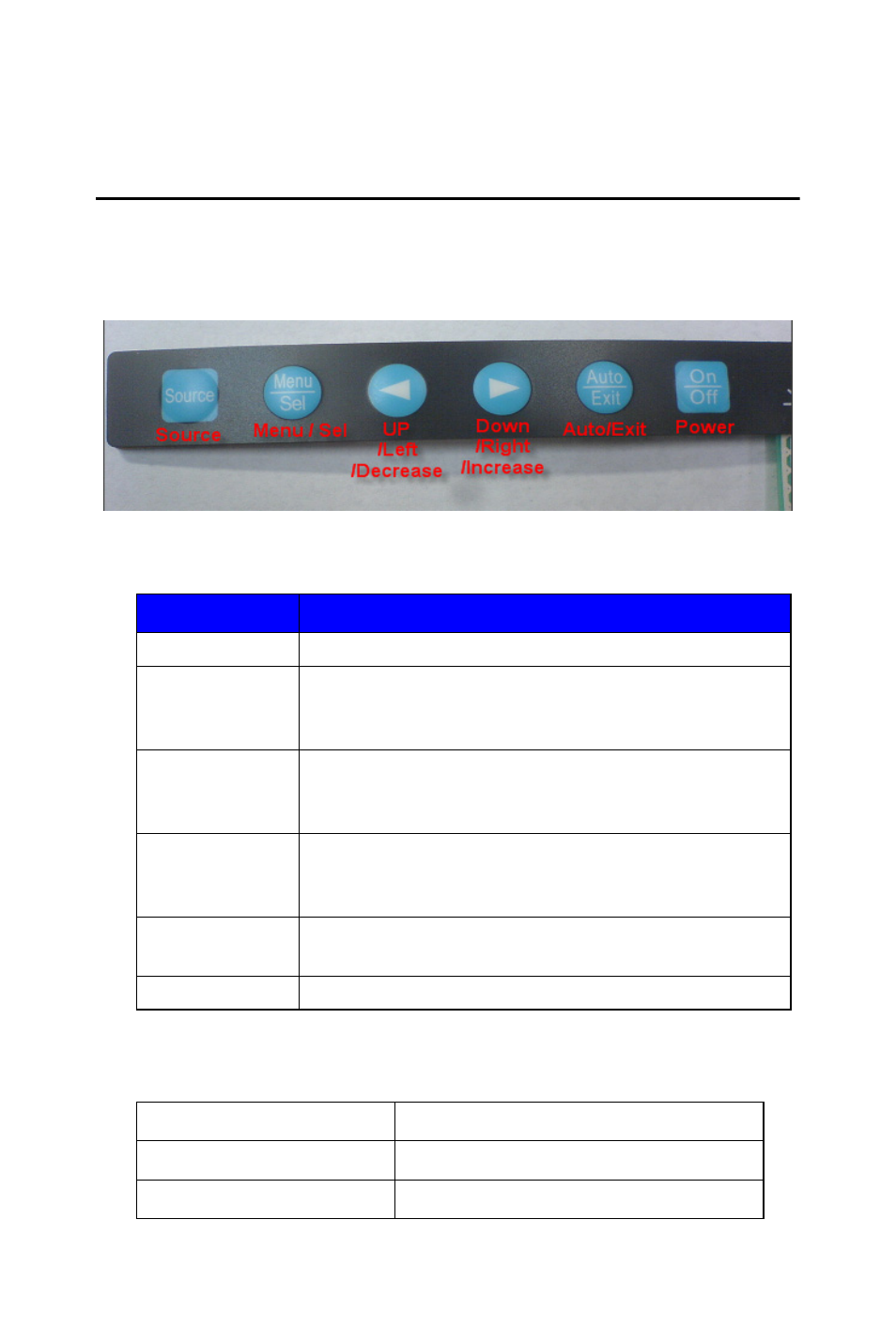

C.1 OSD Board Overview
The OSD keypad, including six keys and a two color indicator, is
designed as the OSD operation interface
C.1.1 OSD Button Description
C.1.2 LED Function
Buttons
Descriptions
Power
Turn the monitor power ON or OFF.
Auto/Exit
Automatically adjust the clock, phase, H-position and
V-position.
Exit menu.
Down/Right/
Increase
Activate the volume control.
Move the selector to the next option.
Increase the gauge value of the selected option.
Up/Left/
Decrease
Active volume control.
Move the selector to the previous option.
Decrease the gauge value of the selected option.
Menu/Sel
Activate the OSD menu.
Enter/confirm the selected option.
Source
Changes Input video source
ON
Green
StandBy/OFF
Green Blinking
No Signals
Orange
