Chapter 2 Mounting
2.1 Mounting the Monitor
The FPM-3150G Series can be mounted in many different ways. The
versatility of the FPM-3150G mounts enable it to be mounted on your
desk or anywhere else.
2.1.1 Wall Mounting
FPM-3150G can be mounted directly on a wall with panel mounting
brackets. Please refer to figure 2-1 and follow the following steps to
mount FPM-3150G on a wall:
1.
Screw the hook and panel-mount brackets on the wall.
2.
Place the FPM-3150G in the brackets.
3.
Fix FPM-3150G on the hook and panel-mount bracket..

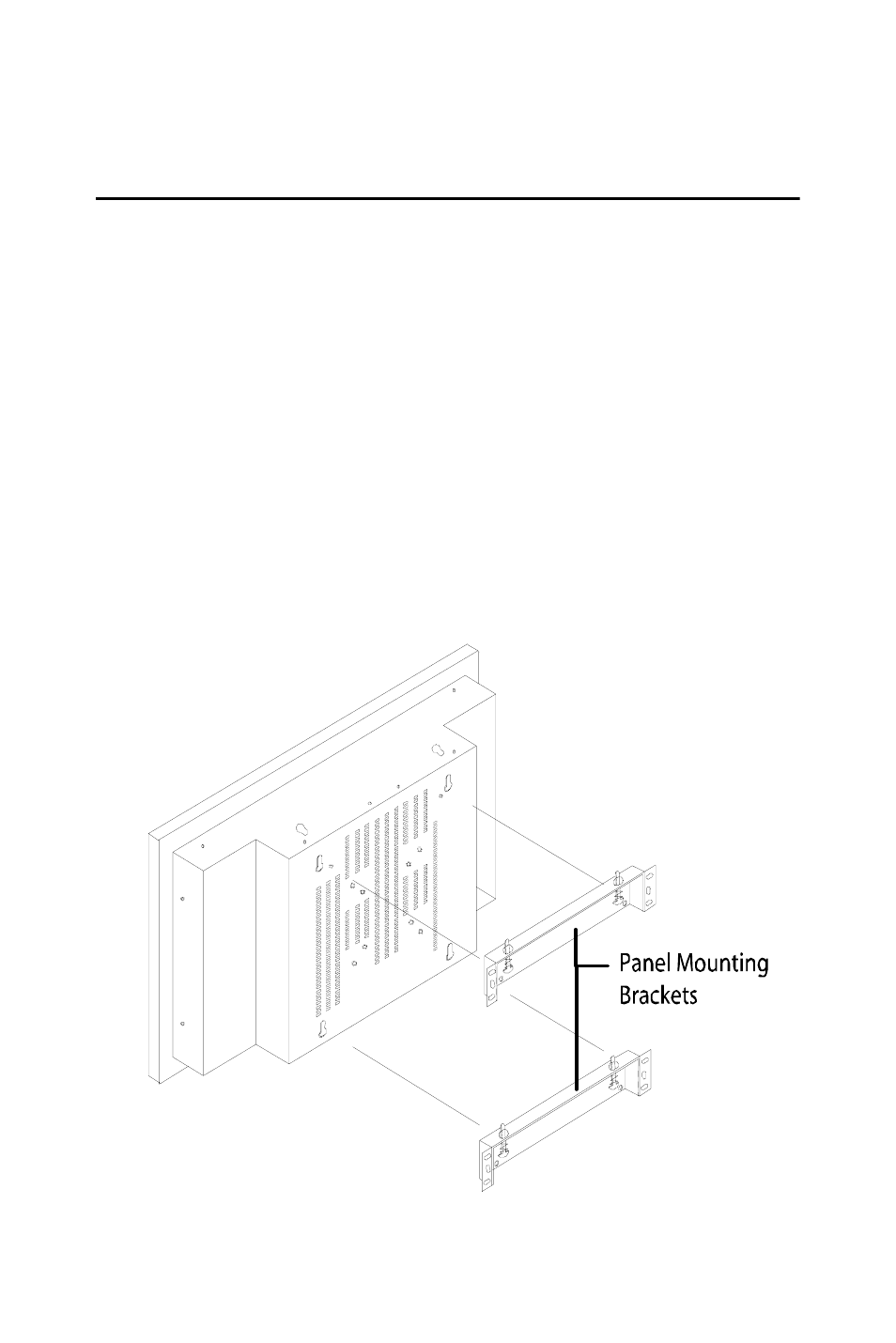

Figure 2.1: Wallmounting
