ASUS PIKE 1064E

1-3

1.3

Card layout

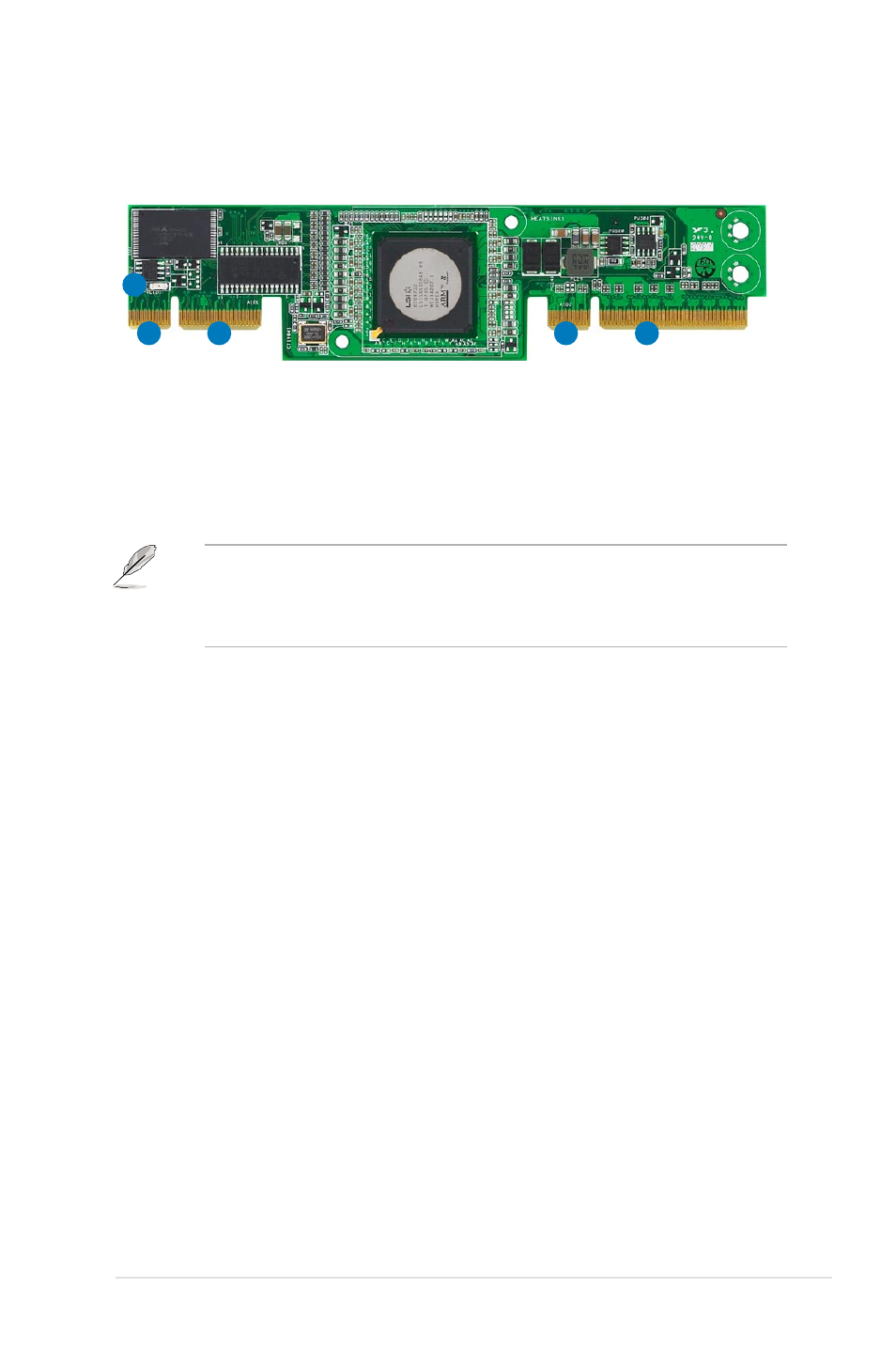

The illustration below shows the major components of the RAID card.

1.4

System requirements

Before you install the PIKE 1064E SAS RAID card, check if the system meets the

following requirements:

Workstation or server motherboard with a PIKE RAID card slot

SAS or SATA hard disk drives

Supporting operating system:
Windows

®

and Linux operating systems (refer to website for details)

Other requirement:
- Appropriate thermal solution
- Certified power supply module

1. ASUS PIKE interface-1: PCI-E x8
2. ASUS PIKE interface-2: 4-port SAS signal with SGPIO interface*
3. SAS RAID card status LED (lights up and blinks to indicate that the card is

working normally)

1

3

1

2

2

* The SGPIO interface is used for visibility into drive activity, failure and reboot

status, so that users could build high-performatnce and reliable storage

systems. Refer to the motherboard manual for detailed information about

using the SGPIO connectors on the motherboard.
