Aquatic HOTSOAK 66 AI7AIR6042HS - Manual

110
SPECIFICATIONS:
The manufacturer accepts a 1/4” variance. There are variations on each tub and specifications are subject to change as we improve upon our product as required. The dimensions needed for site preparation
and structure building should be measured from the tub; Aquatic Industries, Inc. assumes no responsibility for preparatory work.
www.aquaticwhirlpools.com 800.555.5324
August 2008

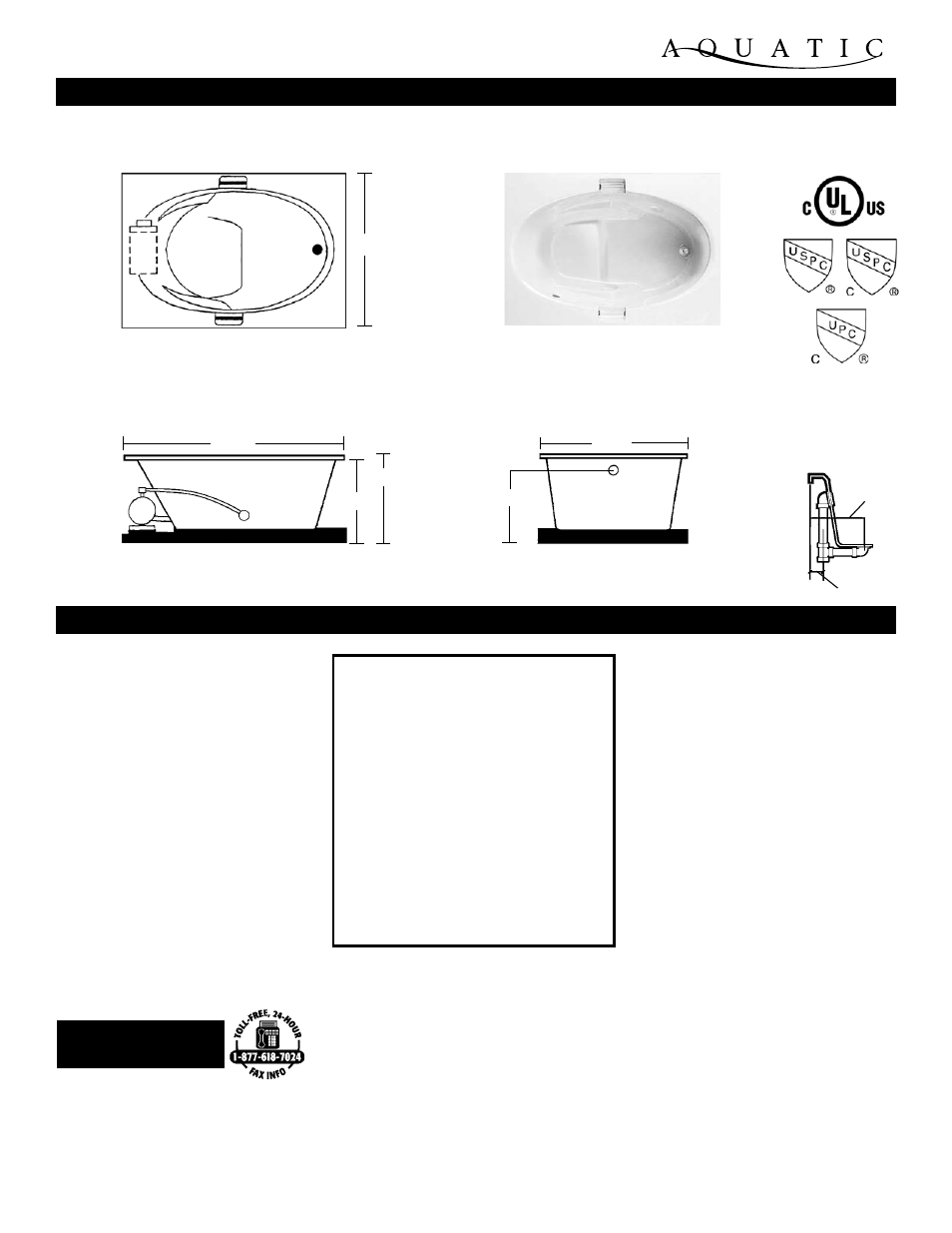

Rough-In Plumbing
Measurements
hOTSOAk 66
hOTSOAk SERIES
Model # AI7AIR6042HS
GeneRal SPecIfIcatIonS:
Tub Size 59 1/2” x 41 7/8” x 23”
151 cm x 106 cm x 58 cm
Bathing Well 42” long
24 1/2” wide
22” interior depth
Shipping Weight 212 lbs. / 96 kg
Tub Weight Filled 703 lbs. / 319 kg
Tub Only Weight 136 lbs. / 62 kg
Gallons to Overflow 70 gal. / 265 L
electRIcal SPecIfIcatIonS:
Pump 1/15 HP; 1.3 AMP; 110V
Heater 1.5 kW; 12.5 AMP; 110V
Requirements 20 AMP; 110V, separate circuit
required protected w/ Class A GFCI
This unit is not recommended for shower installations.
aquatic Quality features:
- 1.5 kW Inline Maintenance Heater
- Run-Dry Pump with 20-Minute Timer
- 2 Circulation Portal Covers
- Bath-Side On/Off Electronic Button
- “Quiet Pad” Anti-Vibration Pump Mount for Quiet Operation
- Raised Seat
- Slip Resistant Floor
- 2 Arm Rests
- Extra Deep and Long Bathing Well
- Pre-leveled ABS Support Base
- 2 Color Matched Grab Bars
- Heat-bent Rigid PVC Piping for Optimum Sanitary Conditions
- Durable, Easy to Clean, Lucite® Cast Acrylic Surface
- Available in 8 Standard No-Charge Colors
Ul & IaPMo listed, factory tested
limited lifetime Warranty
StandaRd eQUIPMent:
fax-on-demand
document #1241
• Chromatherapy LED Lighting*
•
Comfort Pillow - Oval or Rectangle
•
Grab Bar
- White, Biscuit, Chrome, Polished Brass, Gold,
Polished Nickel, Satin Nickel or Oil Rubbed Bronze
•
Lift & Turn Waste and Overflow
- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel or Oil Rubbed Bronze
•
Cable Drive Waste and Overflow
- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel, Oil Rubbed Bronze or Color Matched
(Bone, White and Biscuit Only)
•
Factory Installed Rigid ABS Tile Flange
•
Color Matched Acrylic Skirt
• Premium Colors
All acrylic colors featured by Aquatic match the industry’s
leading fixture manufacturers.
*This whirlpool will need to be hard wired to the breaker box.
Three outlets will be supplied on the whirlpool.
oPtIonal eQUIPMent:
41 7/8”
18 1/2” 22”
23”
59 1/2”
41 7/8”
2 1/4”
9 3/4”
