5
1.5.2 Connecting Devices
The back panel of the DVR unit, user can connect up to 4 video cameras, 4 sensor
devices, 1 alarm device and output video to a TV or CRT/LCD monitor. Connecting
the unit to a PC, through USB connection, the bundled software enables user to
transfer, playback and segment the video.

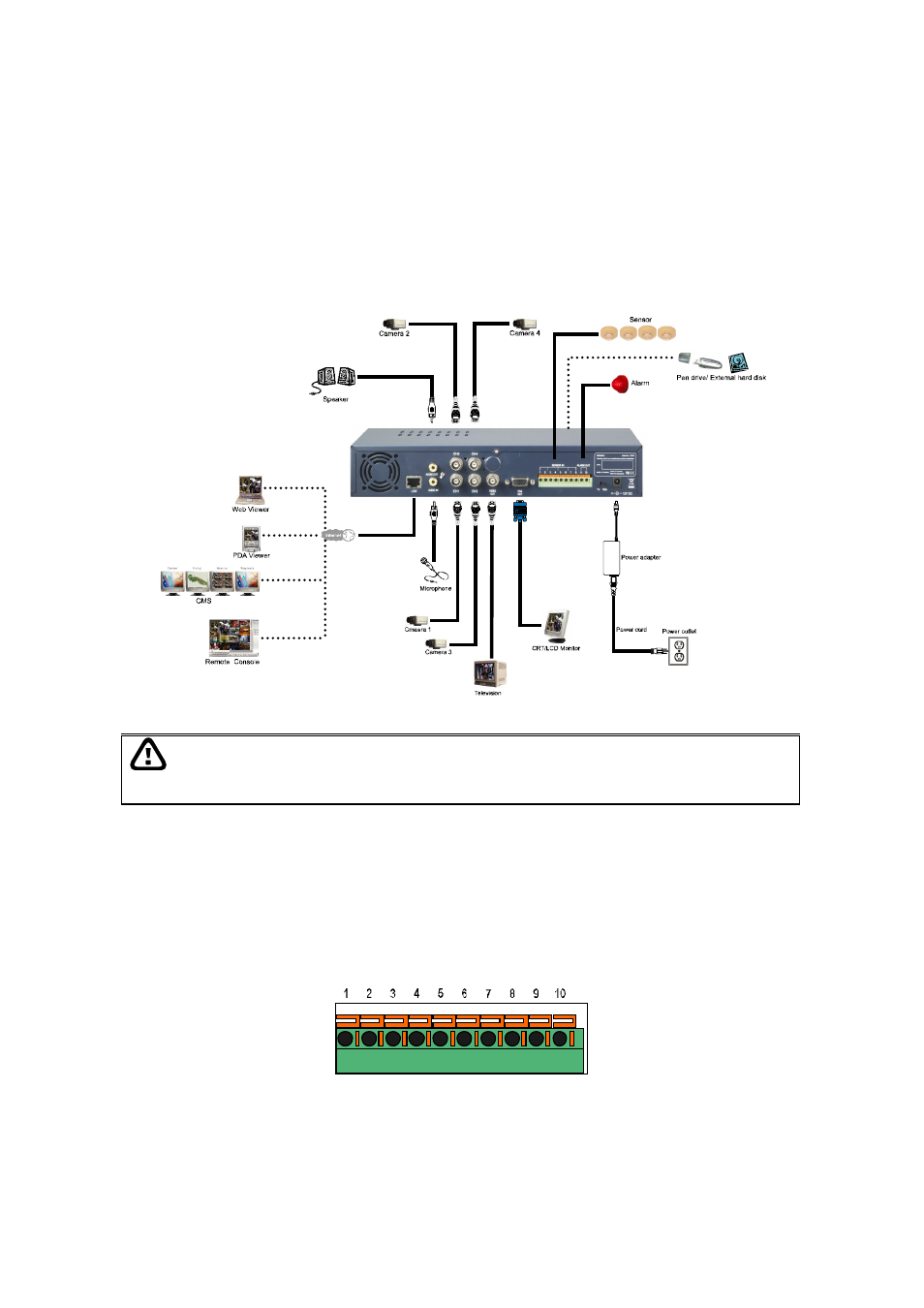

Follow the illustration below to make the connection:
Each time user changes the video display output, the power must be
UNPLUGGED and PLUGGED to reset
1.5.3 Connecting the Sensor/Relay device
The Sensor and Alarm ports enable you to connect (4) sensor inputs and (1) relay
outputs. Just connect the external sensor and relay pin directly to the pinhole.
Check the table below and locate which pinhole is assigned to sensor input and
relay output.
