Board layout, Top view, 4chapter 1 – Acer 3210Z User Manual
Page 12
4
Chapter 1

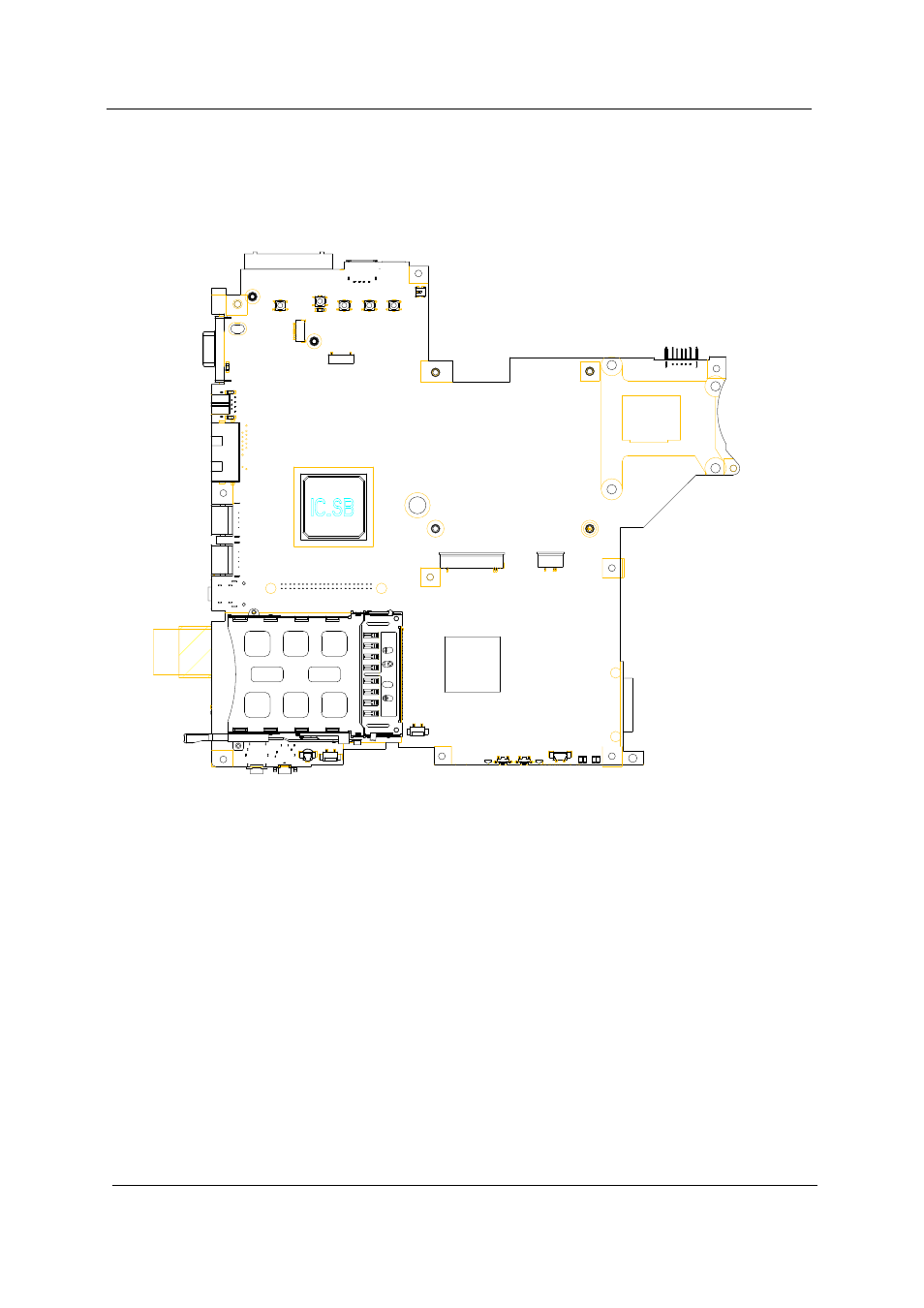

Board Layout
Top View
SW3
Power Switch
SW1
Lid Swtich
JP1
Bluetooth Connector
JP5
Touchpad Connector
SW2
E-mail Switch
JP4
Keyboard Connector
SW4
Internet Browser Switch
JP42
Speaker Connector
SW5
Emanager Switch
JP7
PCMCIA Slot
SW6
User Programmable Switch
JP10
Microphone Connector
2
JP1
2
JP4
2
JP5
2
KQ:
JP10
2
2
JP42
2
JP7
2
2
SW1
SW2
SW3
SW4 SW5 SW6
