ENGLISH
32
• Encapsulation: There are 5 ways :PPPoE VC-Mux, PPPoE
LLC, PPPoE None, PPPoA VCMux, and PPPoA LLC. You
have to check with your ISP about which way is adopted.
• Bridge:Disable
• VPI:0 or 1 (Consult the ISP)
• VCI:38 or 50 (Consult the ISP)
• IP Adress:0.0.0.0
• Subnet Mask:0.0.0.0
• Gateway:0.0.0.0
• Username: Enter the username provided by your ISP(case
sensitive).
• Password: Enter the password provided by your ISP (case
sensitive).
• Automatic Reconnect: Check to enable this device to
automatically re-establish the PPPoE session when
disconnected by ISP.

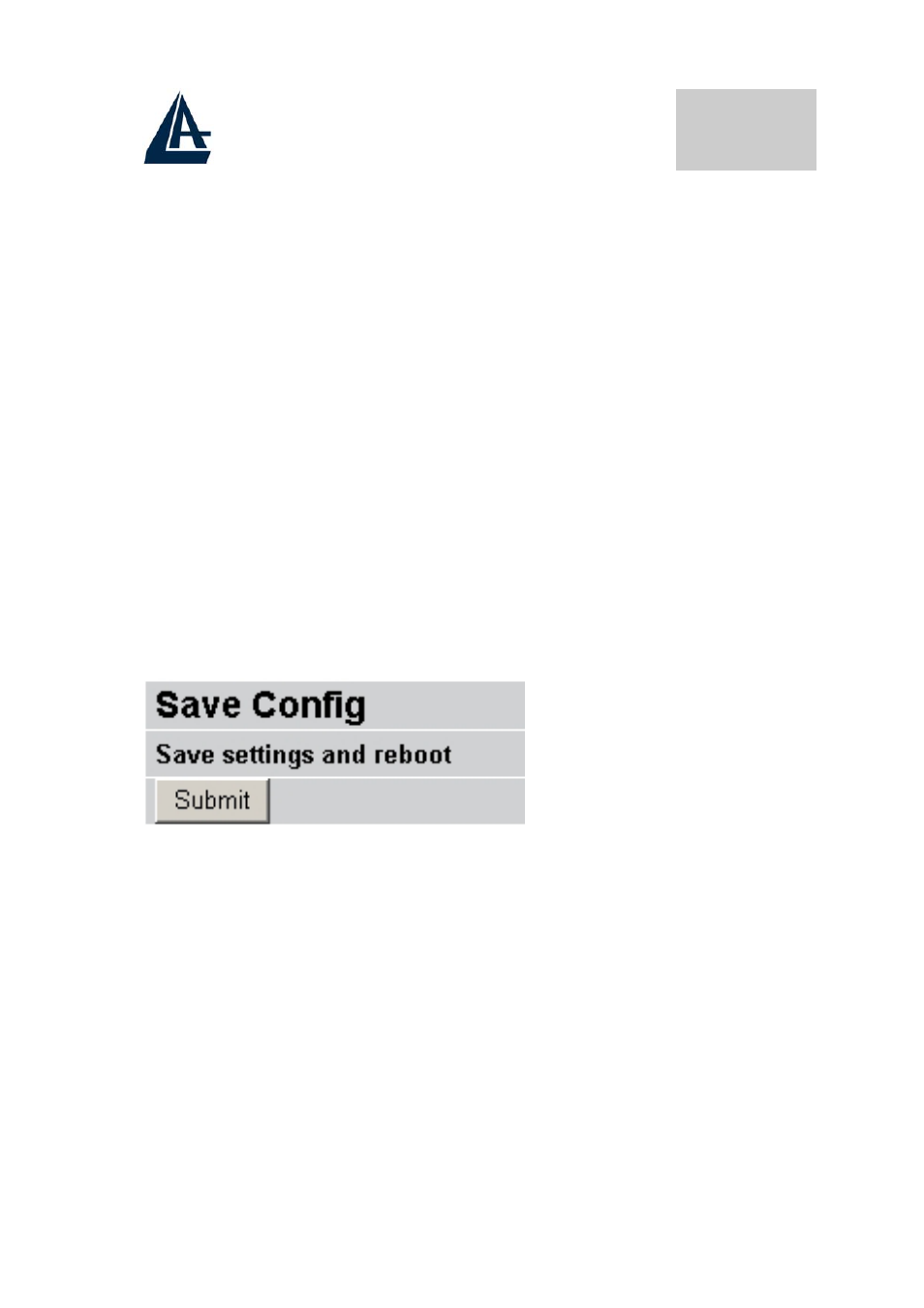

Press Submit and then click on Save Config.
Press again Submit. to reboot the Router.
To this point approaching the section Status you will be able to
check if connection is up, now you can begin navigation. For
every other problem refer to manual on attached cd-rom.
