Atlantis Land WIRELESS ROUTER ADSL A02-RA210-W54 - Manual (Page 29)

ENGLISH
29

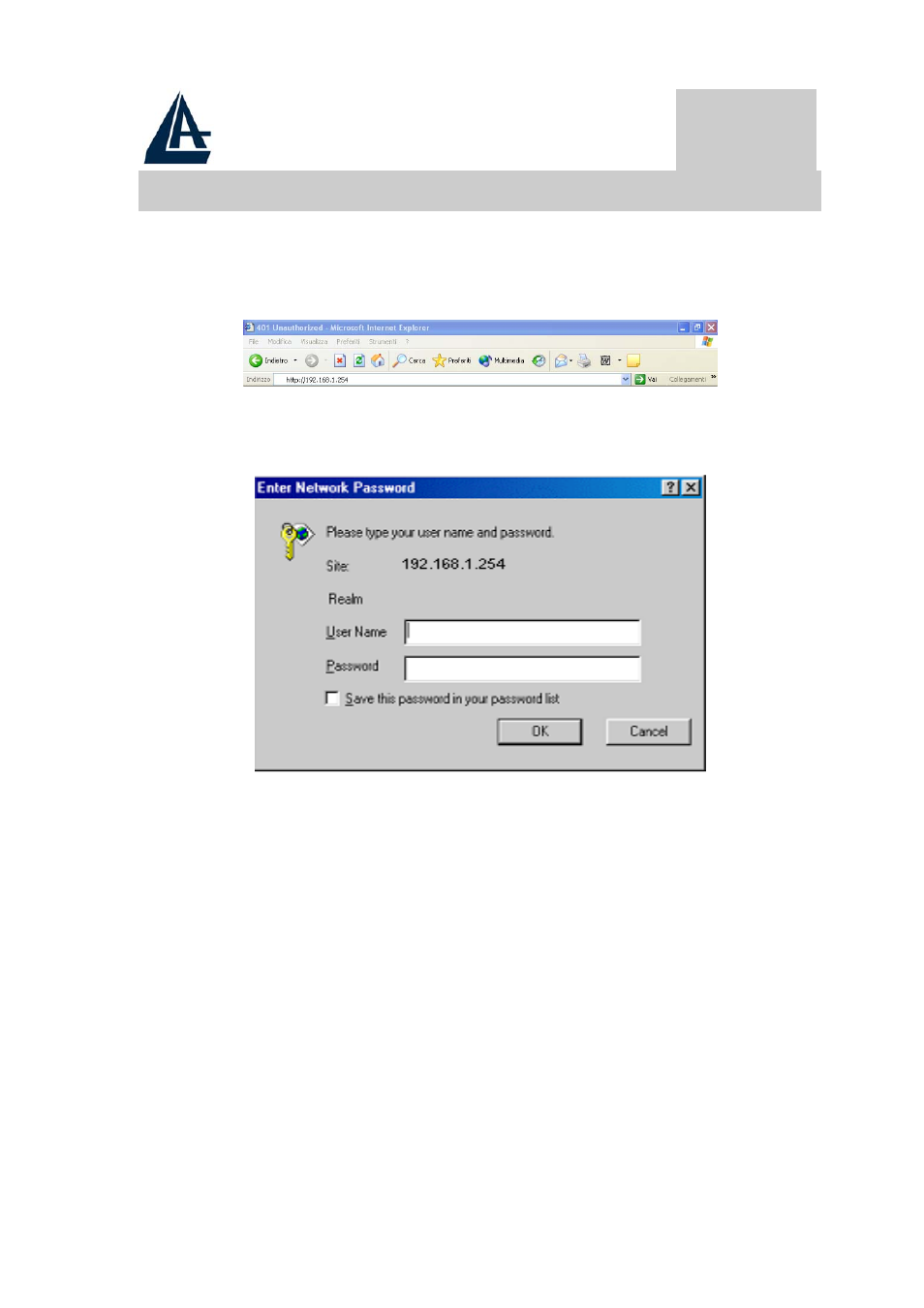

1.8 Browser configuration
Open the web browser, enter the local port IP address of this
Wireless Router ADSL, which default at 192.168.1.254, and click
“Go” to get the login page.
The default username is admin, password atlantis and click
“OK” to continue.
At the configuration homepage, the left navigation pane where
bookmarks are provided links you directly to the desired setup
page, including:
• Status (ADSL, LAN, PPP, VPN connect Status, Learned
MAC Table, Routing Table, System Log, Security Log)
• Quick Start
• Configuration (WAN, LAN, Wireless, System, Firewall,
VPN, Virtual Server, Advanced)
•
Save Config
