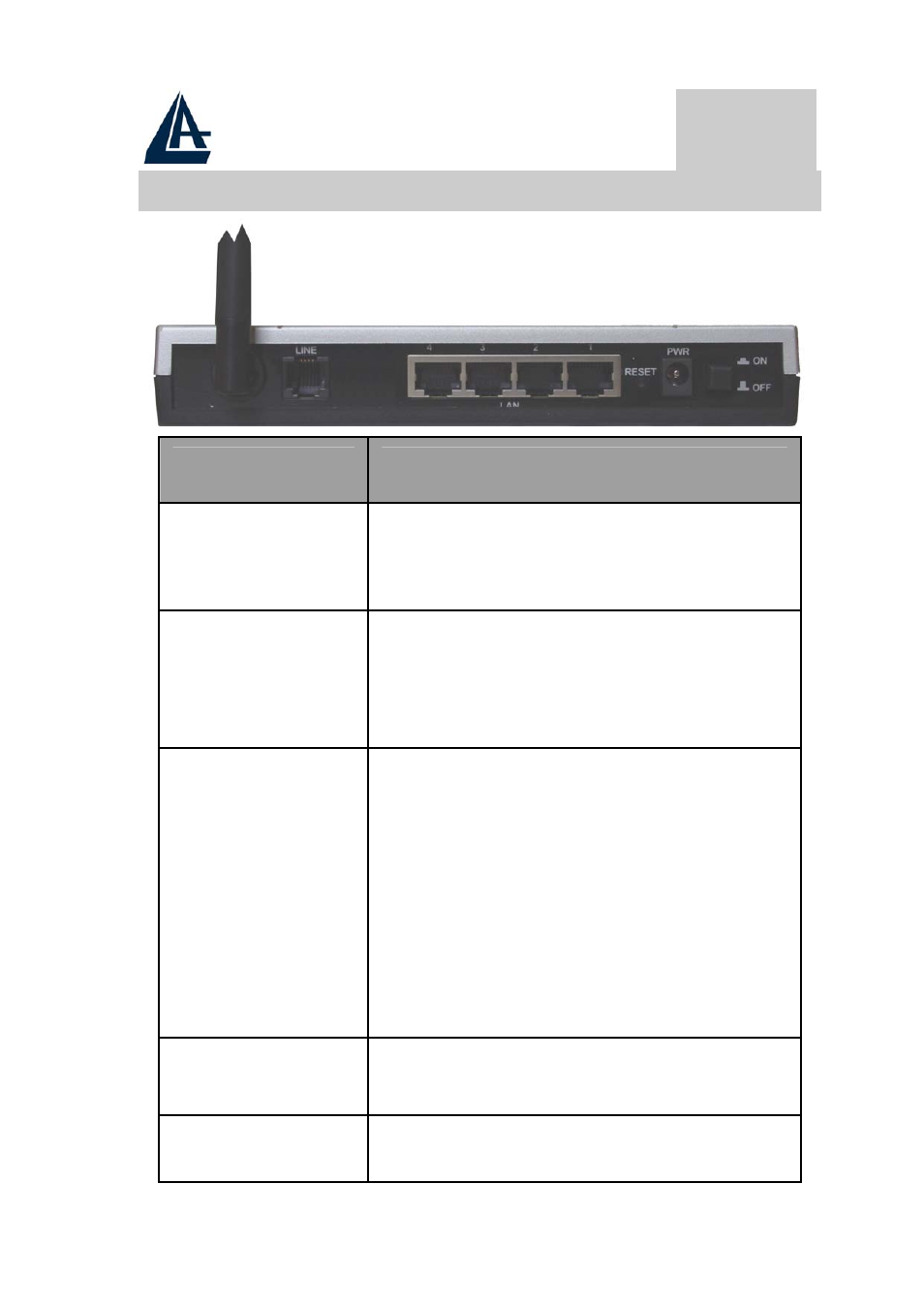

1.3 The Rear Ports
PORT MEANING
Line (RJ11)
Connect the supplied RJ-11 cable to this
port when connecting to the
ADSL/telephone network.
LAN
(1/4 * RJ-45)
Connect an UTP Ethernet cable to one
of the four LAN ports when connecting
to a PC or an office/home network of
10Mbps or 100Mbps.
Reset
After the device has turned on, press it
to reset the device or restore to factory
default settings. The operation is as
below:
0-3 seconds: reset the device
3-6 seconds: no action
10 seconds or above: restore to factory
default settings (this is used when you
can not login to the router, e.g. forgot
the password)
POWER (jack)
Connect the supplied power adapter to
this jack.
POWER Switch
A Power ON/OFF switch
