Wireless Multi-Function Access Point
A02-AP1-W54 Pag. 6

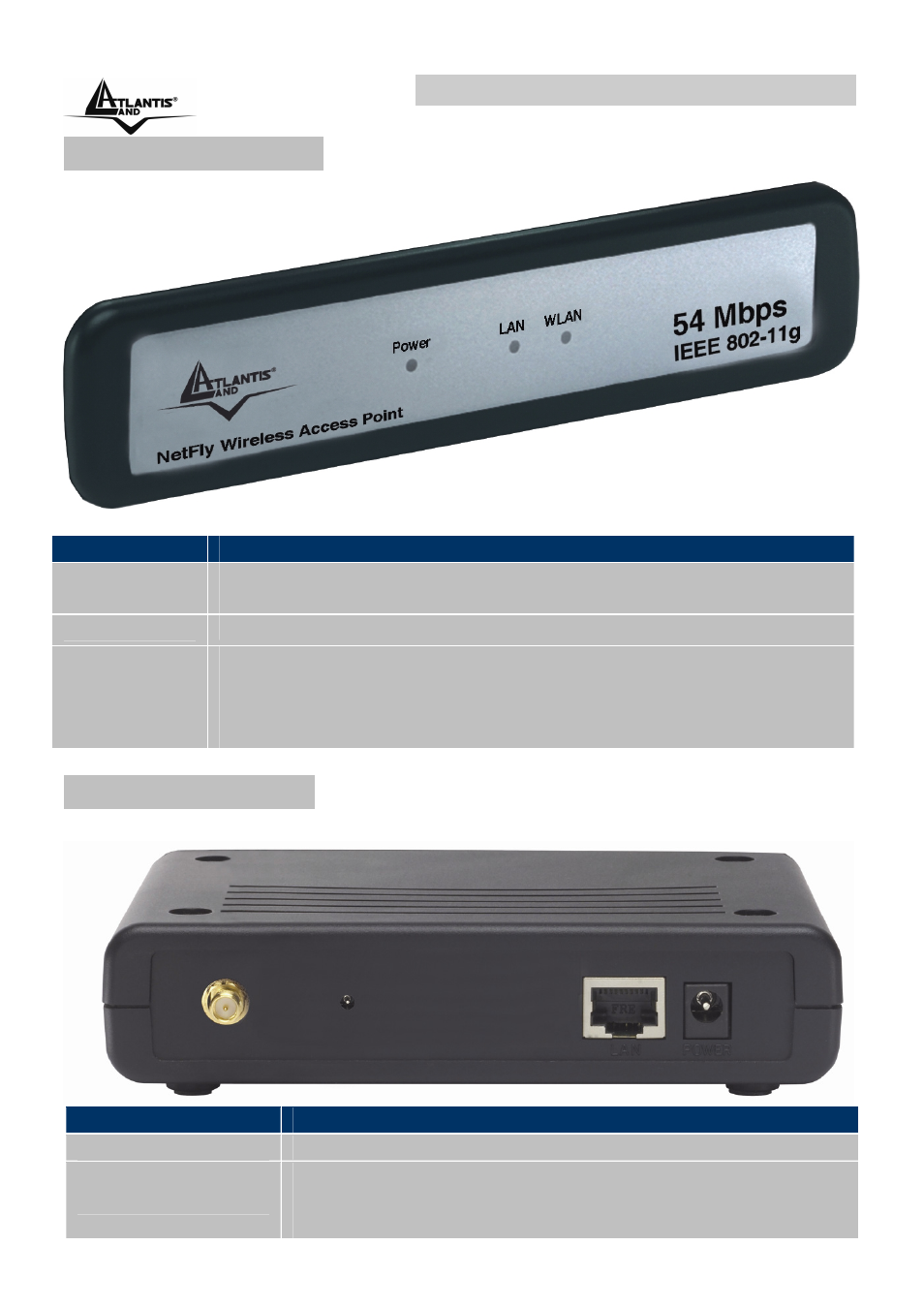

2.2 The Front LEDs
The table below shows the LED Indicator of the Wireless Access Point.
LED Meaning
POWER This indicator lights green when the Access Point receives
power. Otherwise, it turns off.
WLAN The indicator blinking green whiles the wireless LAN activity.
LAN The indicator lights green when the LAN port is connected to a
Ethernet network successful. Otherwise, the indicator blinking
green while transmitting or receiving data on the Ethernet
network.
2.3 The Rear Ports
The figure below shows the rear panel of the Wireless Access Point.
Port Meaning
ANTENNA One external dipole antenna.
RESET
The Reset function is to reset the setting back to factory
default setting, once you press the “RESET” button more
than 5 seconds.
