Page 2

Display linear distance.
POWER
button
Push
Keeping the
button pressed
allows continuous
measurement of
up to 20 seconds.
Measurement
Display of horizontal distance.
After POWER is
turned on.
Aim at the target.
Switching measurement modes with MODE button in the status of Limited/
Full mode.
(See separate “Measurement and Display” sheet for switching between Full and
Limited modes.)
Press and release MODE button to switch measurement mode.
Note: Holding down MODE button longer switches the display unit.

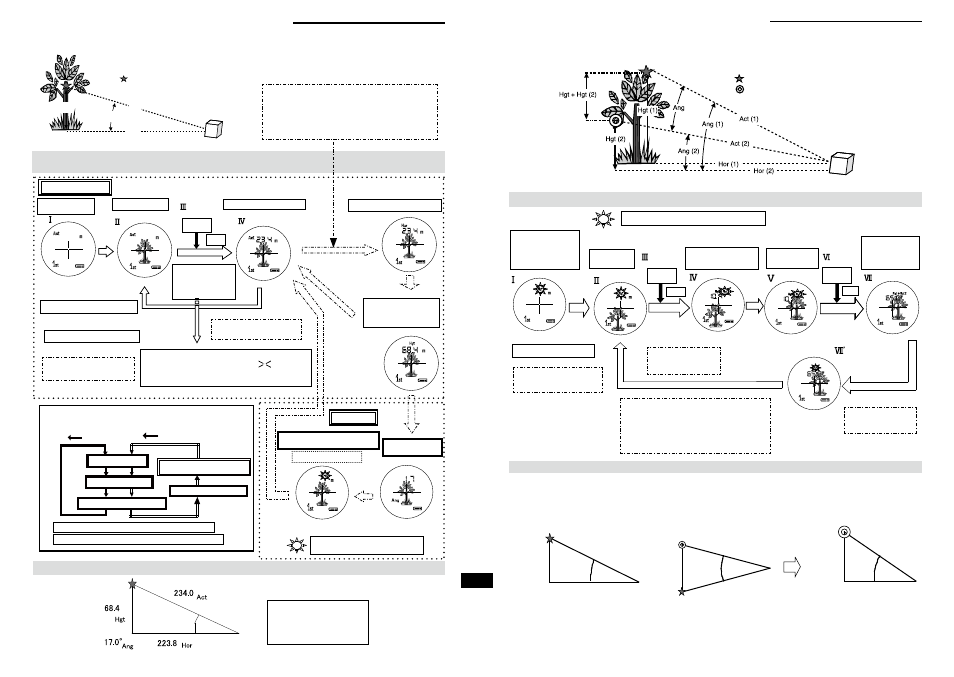

Instruction manual for simple measurement (1)
General (1-point) measurement
(Measurement order: Ⅰ⇒Ⅱ⇒Ⅲ⇒Ⅳ⇒Ⅱ , then repeat)
Ang
Hgt
Act
Hor
Target point
Rangefinder (eyes)
Internal display
(”Linear distance mode”)
(Display will be different depending on the setting mode.)
Result is stored until next
measurement starts.
Default: “Last Use” settings.
First target priority setting.
End of measurement is indicated
with --- and no display of .
Measurement values of the “Last Reading” are displayed
on external LCD when terminating measurement.
Power turns off 30 seconds
after the last operation.
Limited/Full mode
When the MODE button is pressed, data in each
measurement mode is displayed in sequence.
When the POWER button is pressed with the
selected mode, measurement and display are made
in that measurement mode.
Display of the target’s
height from the
rangefinder’s (eyes’)
level.
Display angle
(from horizontal).
Display of the vertical separation
(height between two points).
No data displayed.
Full mode
External LCD
Act (Linear distance)
Hor (Horizontal distance)
Hgt (Height from horizontal)
Ang (Angle from horizontal)
All data below is displayed simultaneously.
This symbol indicates the display is
blinking.
Measuring vertical separation (height between 2 points)
1st target point
2nd target point
Rangefinder (eyes)
Internal display
Display when the
vertical separation
(height between
two points) mode is
selected.
First target priority mode.
Power turns off automatically
after 30 seconds without
operation.
Aiming at the
1st point.
Display of the height
from horizontal level of
1st point.
POWER
button
Push
Measurement
Result is stored until
next measurement
starts.
When the MODE button is pressed, data of
2nd target point in each measurement mode is
displayed in sequence.
Pushing the POWER button in the selected
measurement mode, measurement and data
display in that measurement mode are made.
This symbol indicates the display is blinking.
Aiming at the
2nd target point.
POWER
button
Push
Measurement
Display of the
vertical separation
(height between
two points).
Display changes
automatically after 2
seconds.
External display
◎
After the measurement of 1st
target point.
◎ After the measurement of 2nd target point.
(Display of the vertical height between two points.)
◎
Display of the data of 2nd target point by
pressing the MODE button in the status of Ⅶ’.
247.2
Act(1)
224.0
Hor(1)
25.0°
Ang(1)
104.5
Hgt(1)
227.5
Act(2)
247.2
Act(1)
15.0°
Ang
65.0
Hgt+Hgt2
224.0
Hor(2)
10.0°
Ang(2)
39.5
Hgt(2)
227.5
Act(2)
E E
Limited mode
Full mode
Act: Linear distance
Hor: Horizontal distance
Hgt: Height from horizontal (eyes)
Hgt + Hgt2: Vertical separation
(height between 2 points)
Ang: Angle (from horizontal)
Instruction manual for simple measurement (2)
(Measurement order: Ⅰ⇒Ⅱ⇒Ⅲ⇒Ⅳ⇒Ⅱ , then repeat)
