Battery Requirements
Important
The AR7100 and AR7100R require that at least one remote receiver
(included) be plugged into port B or R to operate.
Specifications
AR7100/ AR7100R
Voltage input - 6.0 to 10.0 volts/ 5 to 7 cell NiMH or 2-cell LiPo*
Minimum receiver operational voltage - 3.5 volts
Minimum regulator operational voltage - 5.5 volts
Output voltage - Rudder, Aux 2, Throttle 2, Gear 2 = 5.2 volts/
all other channels unregulated (for high voltage
compatible servos only)
Max regulated channel current - 2 amp continuous
Resolution - 2048
Dimensions LxWxH - 47.3x40.2x14.2mm/ 1.86x.1.58x .56 in
Weight - 1.1 oz / 32.5 g
Switch - Soft Switch (Switch port can also be used with charge
adaptors (included))
Connector type - EC3
Note: When the battery is connected to the AR71000/AR7100R a low
current drain of less than 1mA occurs even when the soft switch is
turned off. If the system is going to be stored for any length of time
it’s important that the battery be disconnected from the AR7100
to prevent overdischarge.
Remote Receiver
Dimensions LxWxH - 25.8x20.2x6.8mm/ 1.02x.80x.27 in
Weight - 0.1 oz / 5.0 g

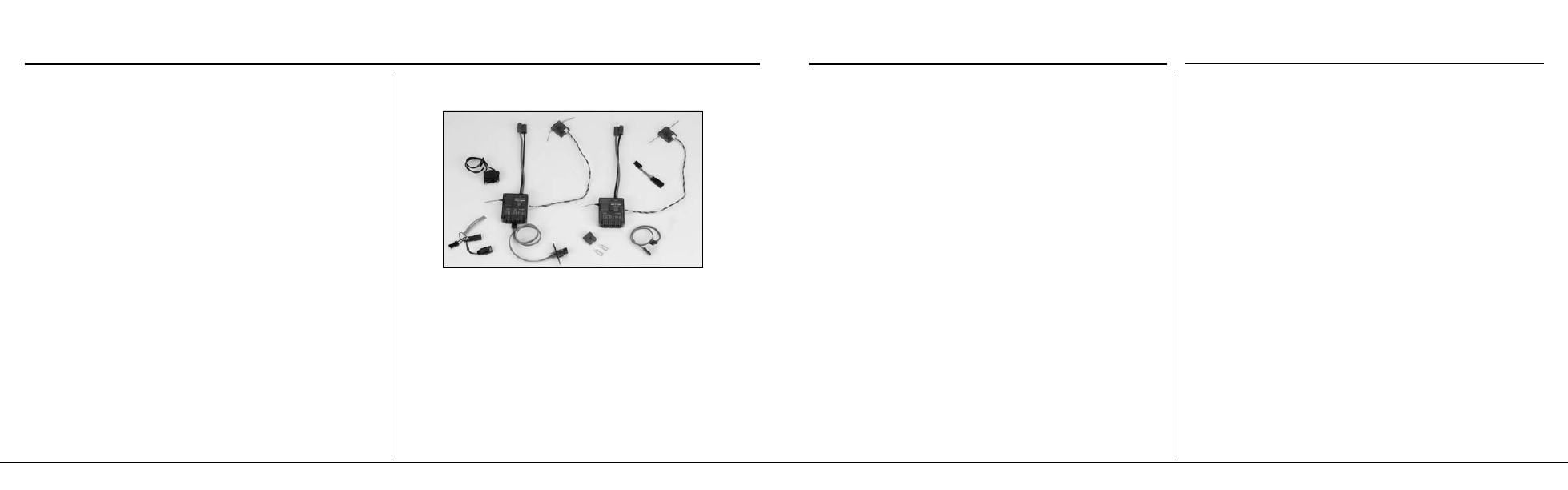

Items Included
AR7100/AR7100R Receiver
Remote Receiver - SPM9545
9” Remote Extension Lead - SPM9011
Soft Switch - SPM6820
Charge ON/OFF Adaptor Lead - SPM6821
Backplate Rpm Sensor (AR7100R only) - SPM6823
Bind Plug - SPM6803
Instruction Manual
Optional Items
• Batteries:
LiPo Receiver Pack 1350mAh - SPMB1350LP*
LiPo Receiver Pack 2000mAh - SPMB2000LP*
LiPo Receiver Pack 4000mAh - SPMB4000LP*
LiPo Receiver Pack 6000mAh - SPMB6000LP*
1650mAh 6.0V NiMH Receiver Pack - SPMB1650NM
2150mAh 6.0V NiMH Receiver Pack - SPMB2150NM
2700mAh 6.0V NiMH Receiver Pack - SPMB2700NM
4500mAh 6.0V NiMH Receiver Pack - SPMB4500NM
• Flight Log Data Recorder - SPM9540
• Additional Remote Receiver - SPM9545
• 6” Remote Receiver Extension - SPM9010
• 9” Remote Receiver Extension - SPM9011
• 12” Remote Receiver Extension - SPM9012
• 24” Remote Receiver Extension - SPM9013
* Consult your servo manufacturer’s specifications for maximum
allowable voltage.
IMPORTANT: Do not use a 4-cell 4.8-volt battery to power
the AR7100/AR7100R.
Because of the built-in regulator the AR7100/AR7100R has a
minimum recommended operational battery voltage of 5.5 volts and
is designed to use 6-volt 5-cell NiMH, 7.2-volts 6-cell NiMH or
7.4-volt 2-cell LiPo batteries. (Higher voltage should be used only if
the servos are compatible.) While the AR7100 will continue to operate
down to 3.5 volts, the AR7100/ AR7100R features a built-in 5.2-volt
regulator for the Rudder, Aux 2, Gear 2, Throttle 2 channels output. A
4-cell 4.8-volt battery will not provide sufficient headroom (voltage
margin) to maintain a 5.2 regulated voltage. Regulated outputs are
provided to allow the gyro, gyro gain and throttle to be operated at the
necessary lower voltage while the cyclic servos (aileron, elevator and
pitch) are powered directly by the pack voltage (typically 5-cell 6-volt
NiMH or if high voltage compatible servos are used 2-cell 7.4-volt
LiPo batteries).
