Plugging in the Leads
Plug the servo leads into the appropriate servo ports in the receiver, noting

the polarity of the servo connector.

Binding
Binding is the process of programming the receiver of the control unit

to recognize the GUID (Globally Unique Identifier) code of a single specific

transmitter. You must bind the AR400 receiver to your transmitter before

it will operate.
1. To bind an AR400 to a DSM2 transmitter, insert the bind plug in the

BATT/BIND port on the receiver.

To bind an aircraft with an electronic speed controller that powers the

receiver through the throttle channel (ESC/BEC), insert the bind plug into

the BATT/BIND port in the receiver and the throttle lead into the THRO port.

2. Power on the receiver. The LED on the receiver will flash, indicating the

receiver is ready to be bound to the transmitter.

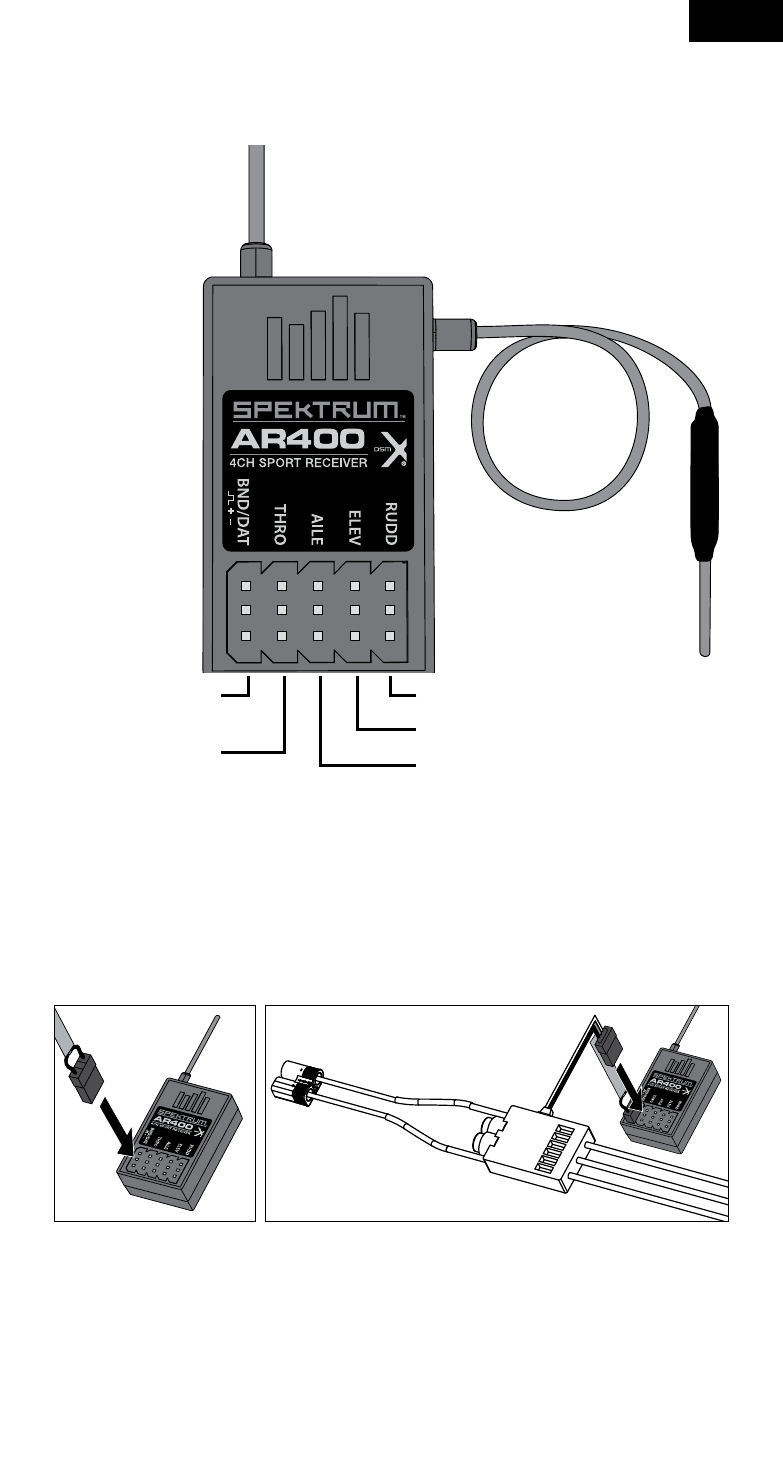

BIND/DATA

(Bind, Data port)

THRO (Throttle port)

RUDD (Rudder port)
ELEV (Elevator port)
AILE (Aileron port)
