EN
7
Connecting the Leads
Connect the servo leads into the appropriate servo ports in the receiver, noting
the polarity of the servo connector.
Binding
Binding is the process of programming the receiver to recognize the GUID
(Globally Unique Identifier) code of a single specific transmitter. You must bind
the AR610 receiver to your transmitter before it will operate.

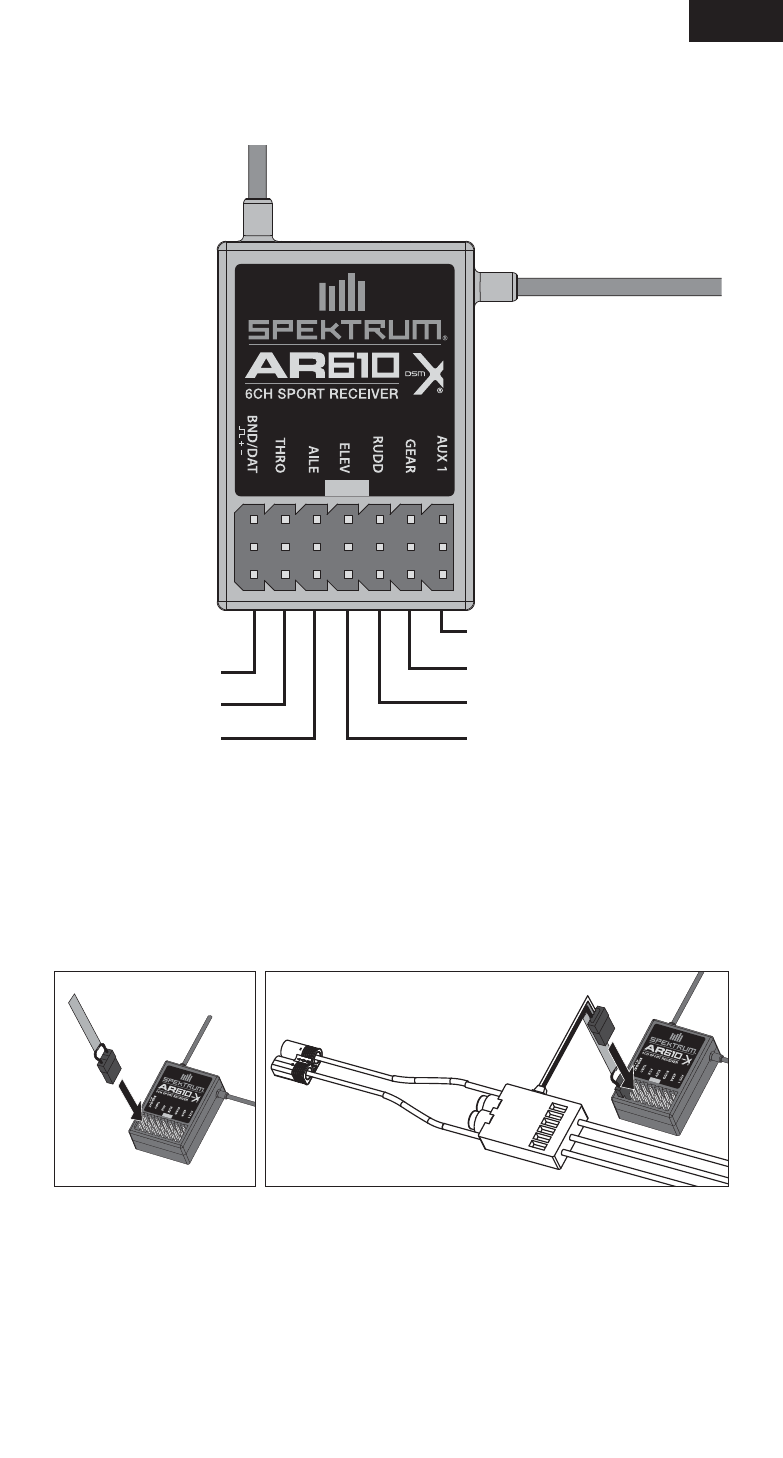

1. To bind an AR610 to a DSM2/DSMX transmitter, insert the bind plug in the
BATT/BIND port on the receiver.
To bind an aircraft with an electronic speed controller that powers the
receiver through the throttle channel (ESC/BEC), insert the bind plug into
the BATT/BIND port in the receiver and the throttle lead into the THRO port.
2. Power on the receiver. The LED on the receiver will flash, indicating the
receiver is ready to be bound to the transmitter.
BIND/DATA
(Bind, Data port)
THRO (Throttle port)
AILE (Aileron port)
AUX1 (Auxilary 1 port)
GEAR (Gear port)
RUDD (Rudder port)
ELEV (Elevator port)
