Operation
Ch-Pro3 (Solid State Programmable digital Control)
COMPOnEnT dESCRIPTIOn
1. SELECTOR SWITCH - turns power to the oven on or
off. Allows selection of cook or cool down modes and
fan speed (if applicable).
2. TIME DISPLAY - gives cook time.
3. TIME ARROW KEYS - press to enter cook and/or
pulse times.
4. READY INDICATOR - when lit indicates the oven has
reached the setpoint temperature and product may
be loaded.
5. TEMPERATURE DISPLAY - gives cook and hold
temperatures.
6. HEAT INDICATOR - when lit indicates the oven is
heating.
7. TEMPERATURE ARROW KEYS - press to enter
cook and hold temperatures.
8. HOLD KEY - turns hold mode on or off.
9. TEMP KEY - press to display actual oven tempera-
ture.
10. FAN KEY - turns pulse mode on or off. The LED
above the fan key is always on.
11. PRODUCT KEYS - three programmable keys.
12. MANUAL PRODUCT KEY - default product key used
for manual operation.
13. START KEY - press to begin a cook cycle.
14. PROGRAM KEY - press to enter programming mode
and save programmed settings.
15. STOP KEY - press to silence audible alarms and can-
cel cook cycles.
Solid State
7
10
12
15
3
1
2
4
5
6
8
9
11
13
14

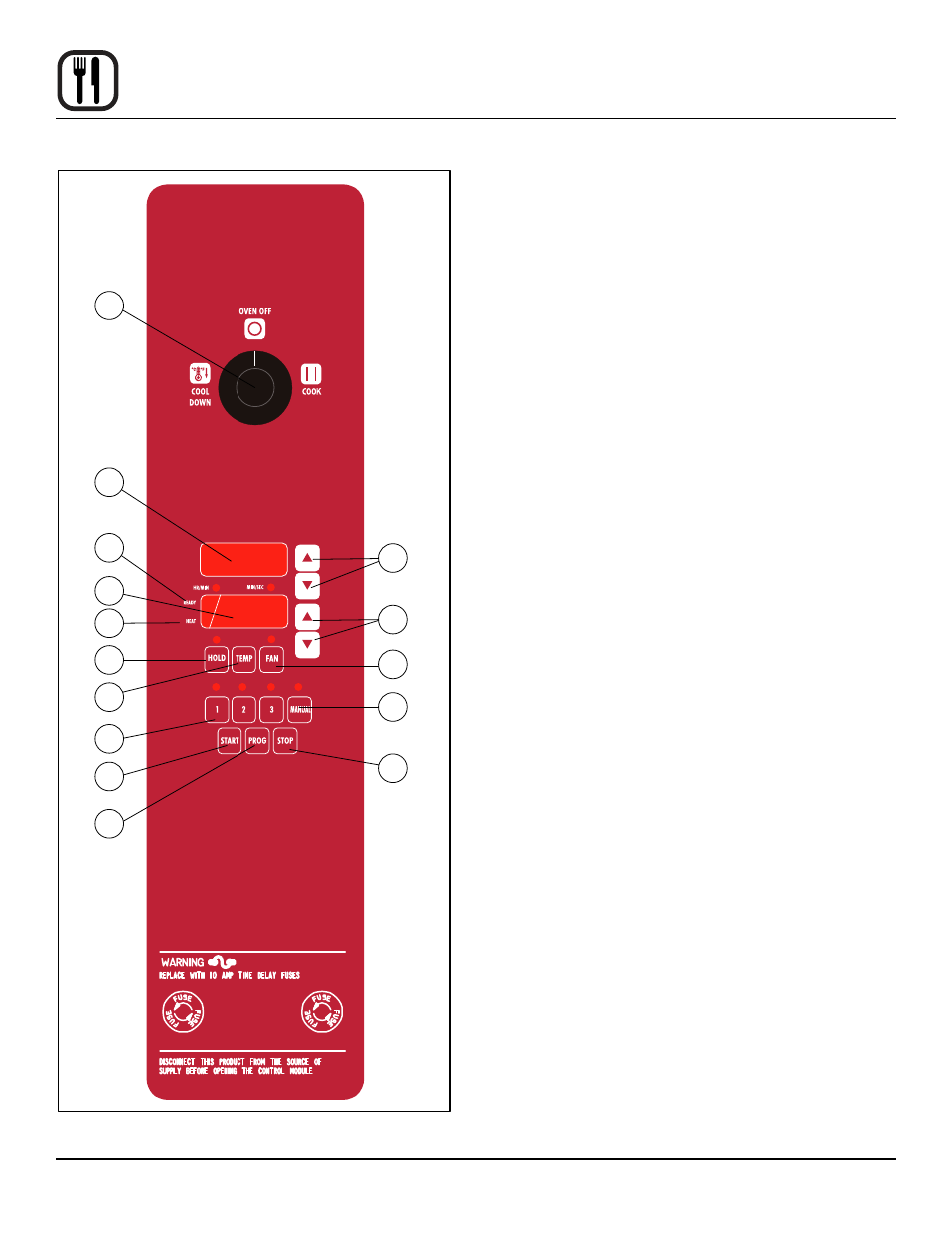

Figure 10
