Page 28
28
OM-BLT/BLP-G
Parts List

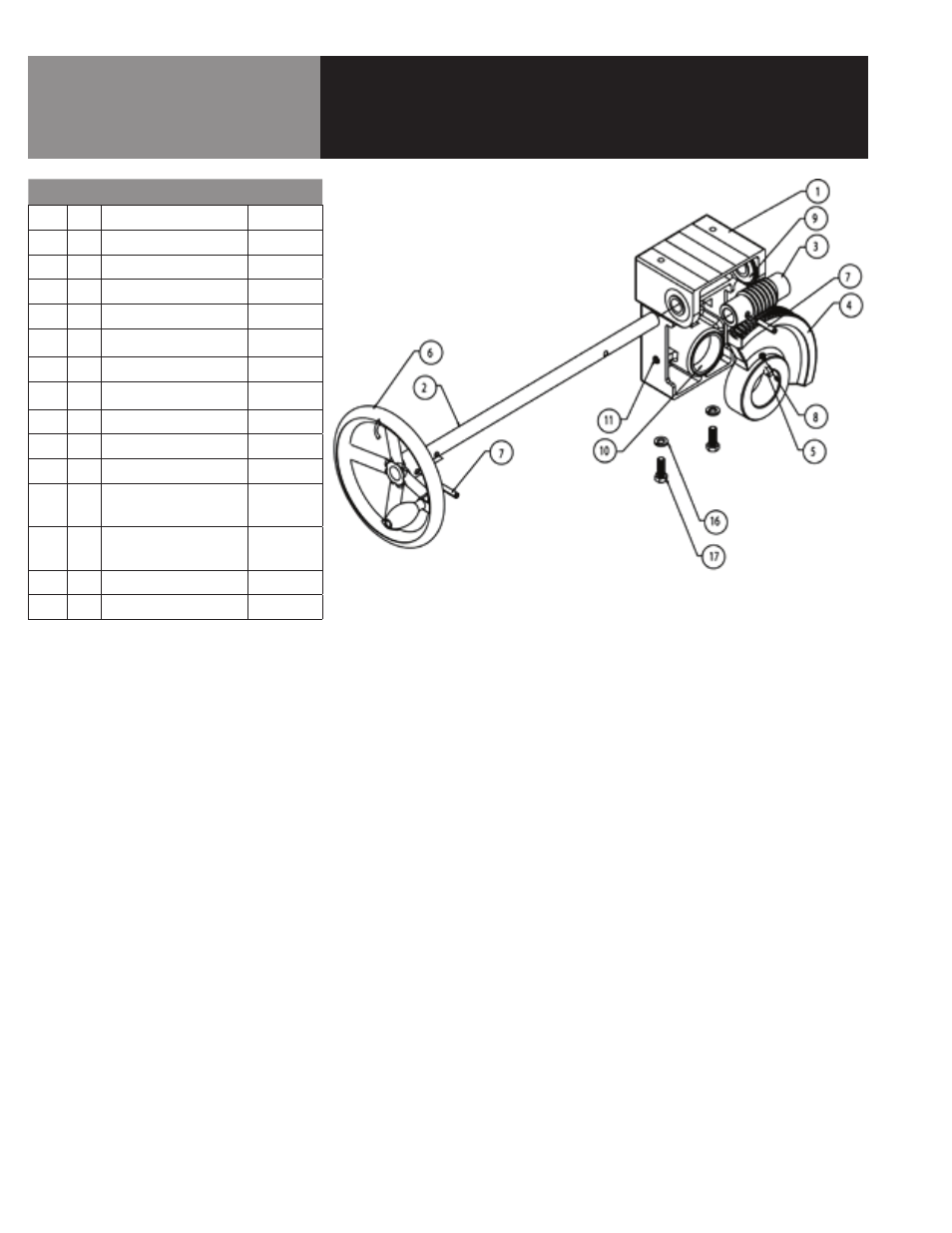

Manual Tilt Assembly
Key Qty
Description
Part #
1
1
GEAR CARRIER
002624
2
1
SHAFT, HANDWHEEL
144834
3
1
GEAR, WORM
128001
4
1
GEAR SECTOR
009829
5
1
KEY GIB
012031
6
1
HANDWHEEL
012061
7
2
PIN ROLL
012614
8
2
SCREW SET SOCKET
012060
9
2
BEARING ROLLER
002790
10
2
BEARING SLEEVE
137239
11
1
PLUG PIPE
010286
14
1
FITTING GREASE 90
(NOT SHOWN)
012195
15
1
BUSHING SNAP
(NOT SHOWN)
000453
16
2
WASHER LOCK
005618
17
2
SCREW HEX HEAD CAP
005612
