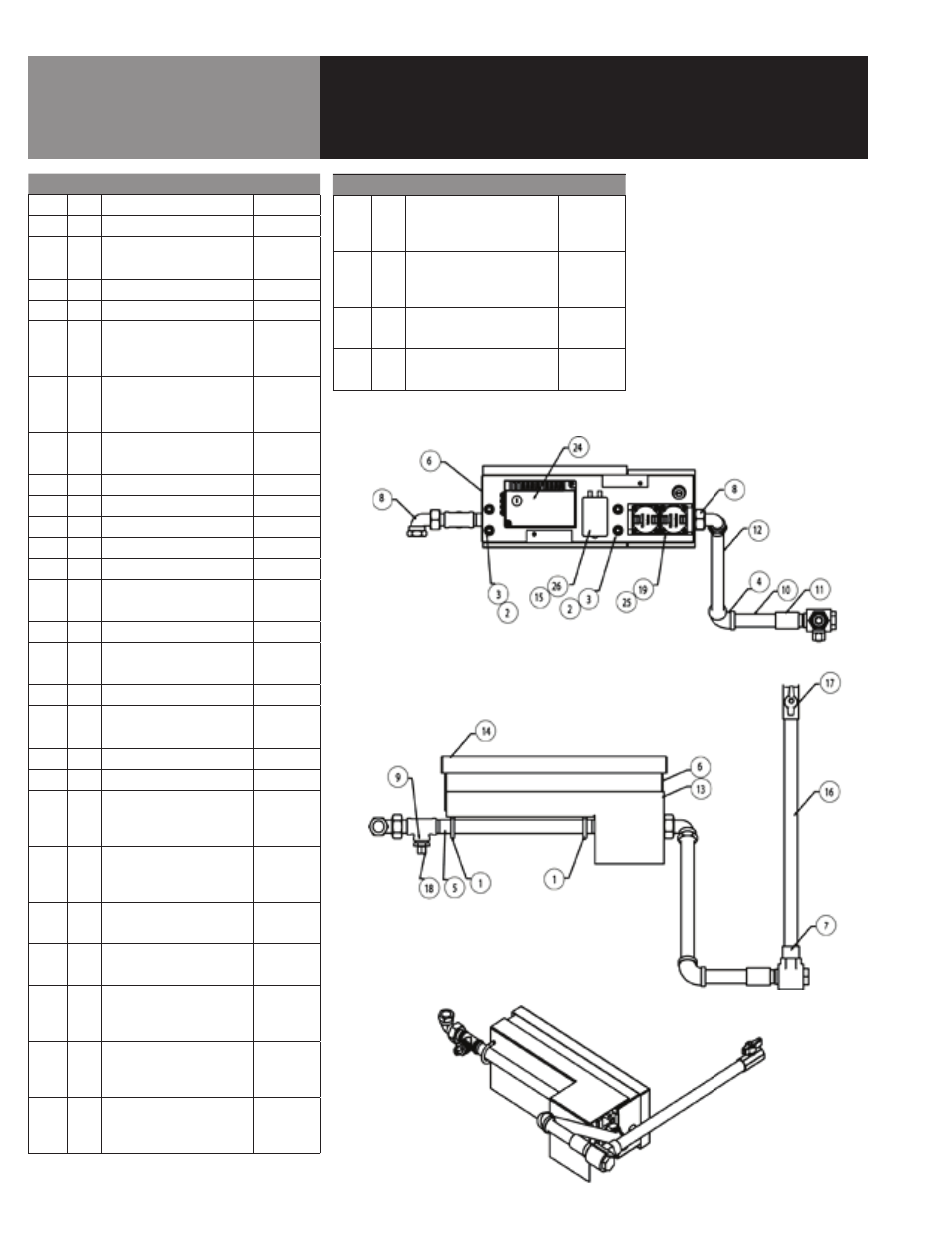

Parts List
Gas Piping Assemblies
Key Qty
Description
Part #
1
1
U BOLT 3/4 PIPE
N87786
2
5
WASHER PLAIN 1/4
005472
3
5
NUT HEXAGON KEPS
1/4-20 WITH
012940
4
1
ELBOW 90 DEG 1/2 NPT
008747
5
1
NIPPLE 1/2 NPT X 11
005673
6
1
IGNITION MODULE
PLATE ASSY
ELECTRONIC IGNITION
144777
6
1
IGNITION MODULE
PLATE ASSY
STANDING PILOT
146510
7
1
SWIVEL JOINT 1/2 NPT
(GAS)
076680
8
2
UNION ELBOW
141354
9
1
TEE 1/2 NPT
008772
10
1
NIPPLE 1/2 NPT X 3.5
009816
11
1
COUPLING FULL 1/2 NPT
005722
12
1
NIPPLE 1/2 NPT X 10
005558
13
1
REAR RADIATION
HEAT SHIELD
146145
14
1
IGNITION MODULE COVER
146146
15
2
SCREW ROUND HEAD
MACHINE
018384
16
1
NIPPLE 1/2 NPT X 12
005600
17
1
VALVE GAS MANUAL
SHUTOFF 1/2
098458
18
1
CONNECTOR MALE 1/2
049429
19
1
FITTING COMPRESSION 90
004584
20
1
TUBE, IGNITION SUP-
PLY TUBE, 1/4 (NOT
SHOWN)
146119
24
1
1 PILOT SUPPLY TUBE,
1/4” (STANDING PILOT)
(NOT SHOWN)
149054
24
1
PILOT SUPPLY TUBE,
1/4 (NOT SHOWN)
146118
23
1
GROMMET 7/8” (NOT
SHOWN)
007400
24
1
SPARK IGNITION
MODULE-ELECTRONIC
IGNITION ONLY
144150
25
1
GAS CONTROL VALVE-
ELECTRONIC IGNITION-
NATURAL GAS
098443
25
1
GAS CONTROL VALVE-
ELECTRONIC IGNITION-
PROPANE
098444
Key Qty
Description
Part #
25
1
GAS CONTROL VALVE-
STANDING PILOT-NATU-
RAL GAS
002648
25
1
GAS CONTROL VALVE-
STANDING PILOT-
PROPANE
002649
26
1
HIGH LIMIT
THERMOSTAT (GAS)
013481
27
1
ELBOW FEMALE 90
DEG (NOT SHOWN)
050500
