Parts list – Blodgett BTT-E Series User Manual
Page 14
12
OM-BTT-E
To order parts, contact your authorized Service Agency. Supply the model designation (10E-BTT), part description, part number and
quantity required. Where applicable, provide the voltage and phase as well.

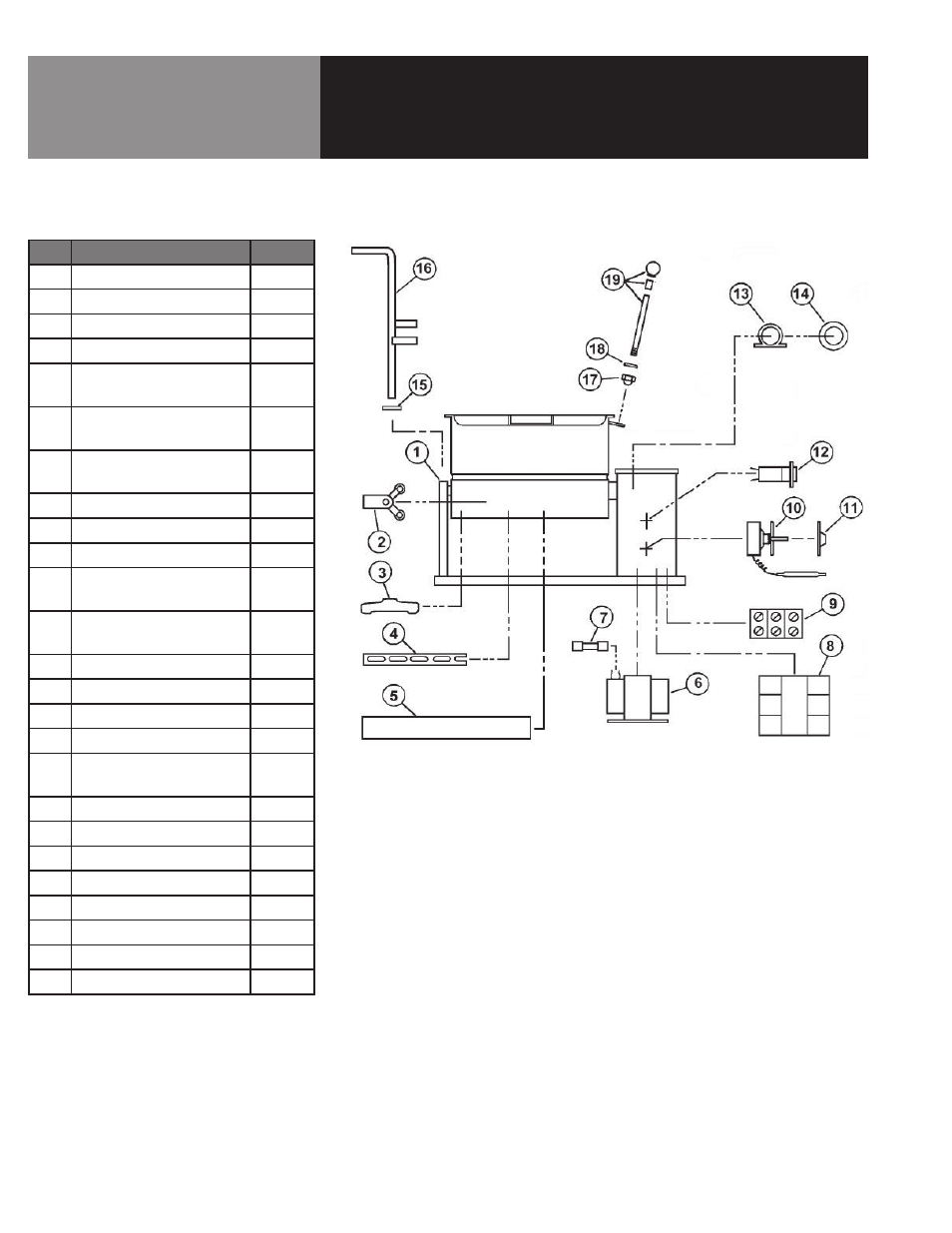

KEY DESCRIPTION
PART NO.
1
Outboard Support Assembly
003696
2
Thermostat, High Limit
012840
3
Clamp, Strip Heater
012844
4
Bar, Bus, 36”
012845
5
Heater, Strip 208 Volt,
950 Watts
012842
5
Heater, Strip 240 Volt,
1000 Watts
012843
5
Heater, Strip 480 Volt,
1000 Watts
012908
6
Transformer, 380 Volt
001860
6
Transformer, 480 Volt
012827
7
Fuse, 1 AMP, 480 Volt
004324
8
Contactor, 208 & 240 Volt,
1 Phase
009178
8
Contactor, 208 & 240 Volt,
3 Phase
009210
8
Contactor, 480 Volt, 3 Phase
009574
9
Block, Terminal
003119
10
Thermostat, Control
012838
11
Knob, Thermostat
170829
12
Light, Indicator,
208 & 240 Volt
016028
12
Light, Indicator, 480 Volt
002986
13
Block, Pillow, 1-1/2” ID
002989
14
Collar, Set 1-1/2” ID
003118
15
Washer, Plain. 1/2”
002213
16
Tilt Detent Assembly
002970
17
Nut, Cap, 3/8-24
003188
18
Washer, Lock, 3/8
005618
19
Handle
012694
Parts List
