2

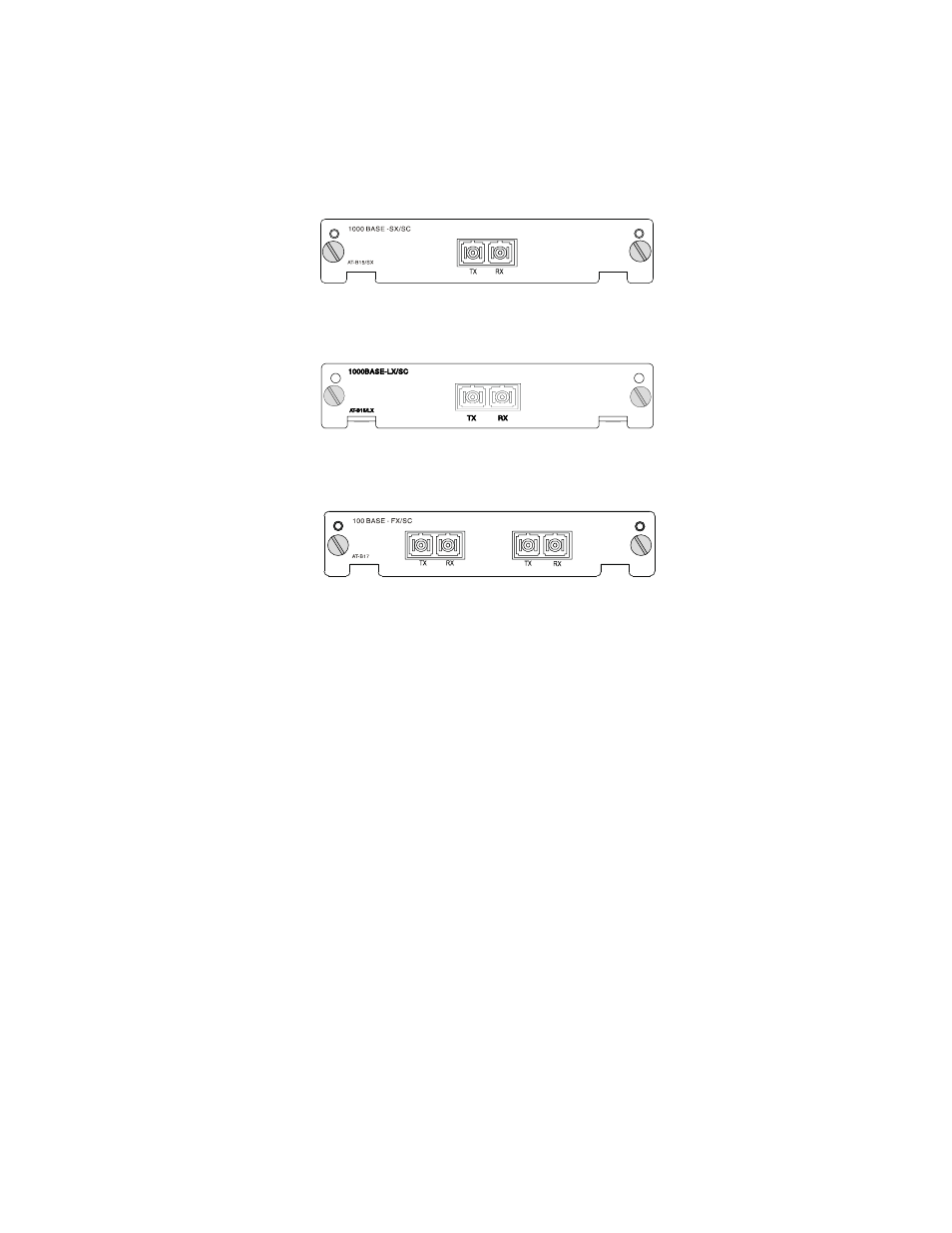

Figure 1 through Figure 3 illustrate the expansion modules.
Figure 1 AT-B15/SX Expansion Module
Figure 2 AT-B15/LX Expansion Module
Figure 3 AT-B17 Expansion Module
Installing the Expansion Module
The following sections contain the instructions on how to install an expansion
module in the switch.
Verifying the Package Contents
Check to be sure that your module package contains the following items. If
any of the items are missing or damaged, contact your Allied Telesyn
representative.
" One AT-B15/SX, AT-B15/LX, or AT-B17 Expansion Module
" Warranty Card
" This Quick Install Guide
