Allied Telesis AT-LXPWR/AC - Manual (Page 2)

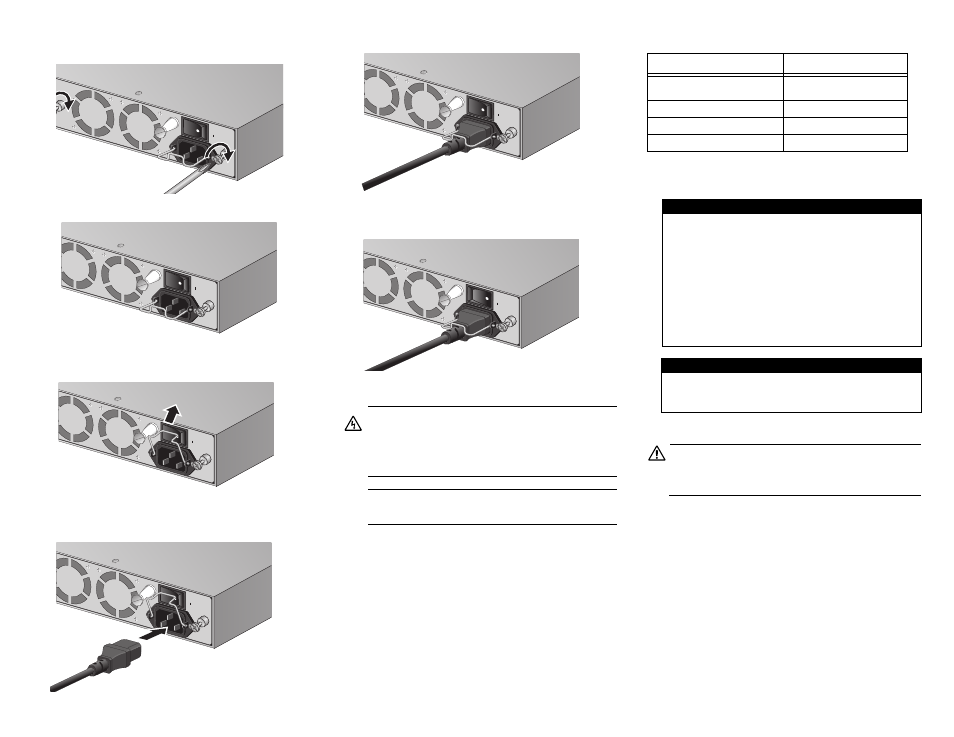

8. Use a Phillips head screwdriver to tighten the captive
screws on the power supply.
9. Make sure that the On/Off switch is in the Off position.
10. Position the power cord retaining clip in the up position.
11. Plug the power cord into the AC power connector on the
back of the power supply.
RX
AT-LXPWRA
C
ON
100-240 VAC~
130
RX
C
ON
100-240 VAC~
182
RX
C
ON
100-240 VAC~
183
RX
C
ON
100-240 VAC~
184
12. Secure the cord by lowering the power cord retaining clip.
13. Plug the other end of the AC power cord into a wall outlet.
14. Move the On/Off power switch to the On position.
15. Verify that the PB (PWR B) LED on the front of the unit is
green. If the PB LED is off or if the FT (Fault) LED is solid
red, refer to Chapter 3, “Troubleshooting,” in the
AT-LX3800U Multi-Service Transport System Installation
and Maintenance Guide.
When power is applied, the switch begins to load the
AT-S65 software. The loading process takes
approximately 20 to 30 seconds to complete.
For more information about viewing the status of the
AT-LXPWR/AC Power Supply using the AT-S65
management software, refer to the AT-S65 Management
Software User’s Guide.
Warning: Class I Equipment. This equipment must be
earthed. The power plug must be connected to a
properly wired earth ground socket outlet. An improperly
wired socket outlet could place hazardous voltages on
accessible metal parts.
Warning: Only trained and qualified personnel are
allowed to install or to replace this equipment.
RX
C
ON
100-240 VAC~
185
RX
C
ON
100-240 VAC~
186
Specifications
Electrical, Safety, and Emissions Statements
This product meets the following standards.
RFI Emissions EN 55022 Class A
Warning
In a domestic environment this product may cause radio
interference in which case the user may be required to
take adequate measures.
Immunity EN 55024
Electrical Safety UL 60950 (
C
UL
US
), EN 60950 (TUV)
Copyright © 2005 Allied Telesyn, Inc. All rights reserved. No part of this
publication may be reproduced without prior written permission from
Allied Telesyn, Inc. www.alliedtelesyn.com
Item Specification
Dimensions (H x W x L) 40.6 x 156.2 x 201.4 mm
(1.60 x 6.15 x 7.93 in.)
Operating Temperature 0° C to 40° C
Relative Humidity <85% noncondensing
Supply Voltage +3.15 V - +3.45 V
U.S. Federal Communications Commission
Radiated Energy
Note: This equipment has been tested and found to comply with the
limits for a Class A digital device pursuant to Part 15 of FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in
accordance with this instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in
a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own
expense.
Note: Modifications or changes not expressly approved of by the
manufacturer or the FCC, can void your right to operate this
equipment.
Industry Canada
This Class A digital apparatus meets all requirements of the
Canadian Interference-Causing Equipment Regulations.
Cet appareil numérique de la classe A respecte toutes les exigences
du Règlement sur le matériel brouilleur du Canada.
