Starting a Management Session Guide

13

Starting a Local Management Session

To start a local management session, perform the following procedure:

1. Connect one end of the RJ-45 to RS-232 management cable included

with the switch to the Terminal Port on the unit’s front panel, as shown
in Figure 1.

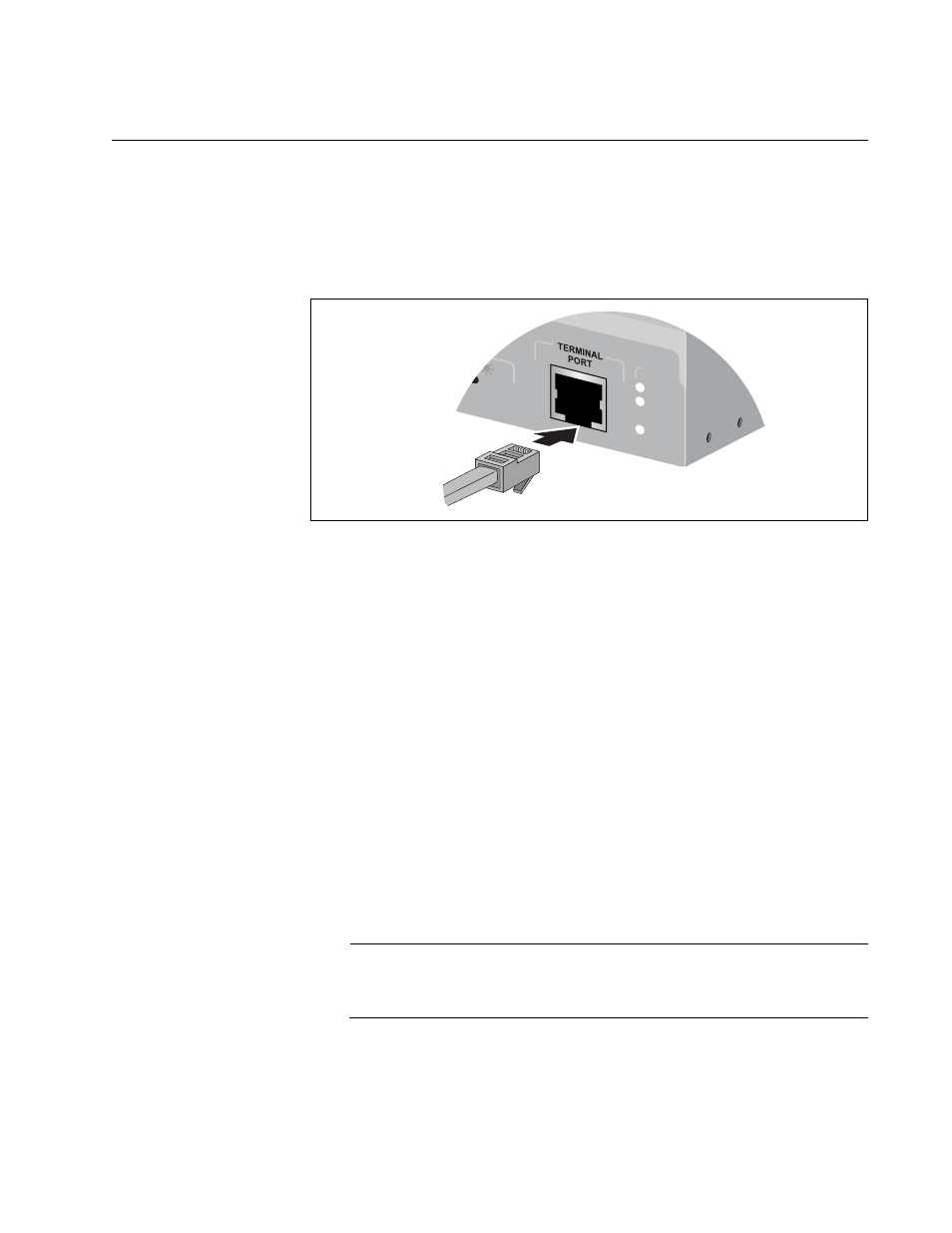

Figure 1. Connecting the Management Cable to the RJ-45 Serial Terminal

Port

To configure an AT-9400Ts Stack, you must connect the cable to the
master switch. The master switch is identified by its green Stack
Master LED.

2. Connect the other end of the cable to an RS-232 port on a terminal or

PC with a terminal emulator program.

3. Configure the terminal or terminal emulation program as follows:

Baud rate: 9600 bps (The baud rate of the Terminal Port is
adjustable from 9600 to 115200 bps. The default is 9600 bps.

Data bits: 8

Parity: None

Stop bits: 1

Flow control: None

Note

The port settings are for a DEC VT100 or ANSI terminal, or an
equivalent terminal emulator program.

4. Press Enter.

You are prompted for a user name and password.
