AT-FS708 Fast Ethernet Switch Installation Guide
29
3. Mount the switch in a 19-inch rack using rack mounting screws (not
provided), as shown in Figure 7.

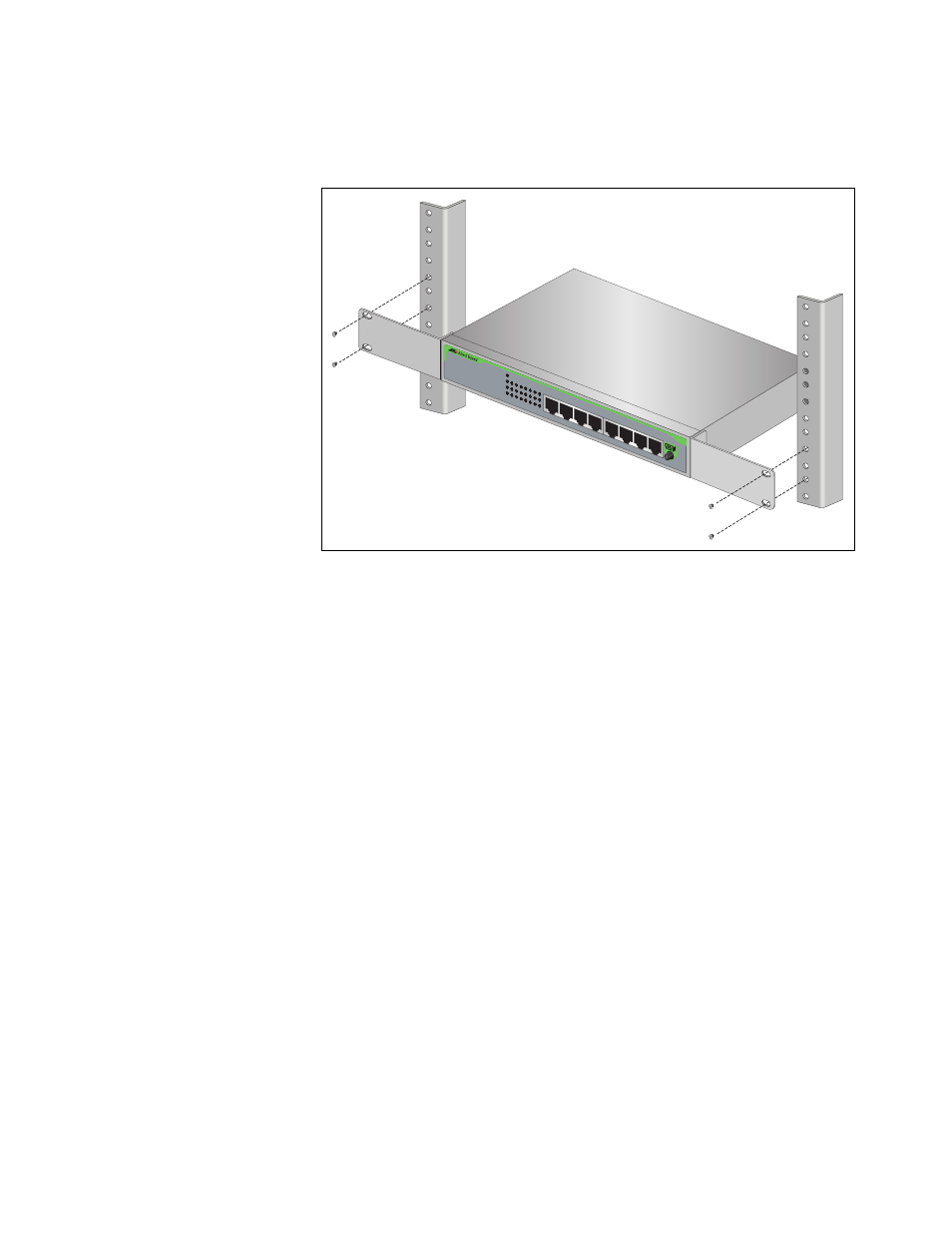

Figure 7. Rack Mounting the Switch
4. Proceed to “Cabling the Switch” on page 30 for the cable installation.
