Chapter 2: Installation
28
Installing the Switch in a Rack
Perform the following procedure to install the switch in a standard 19-inch
rack.
1. If attached, remove the rubber feet, data cables, and power cord from
the switch.
2. Attach the two mounting brackets (provided) to the sides of the switch
using the bracket mounting screws (provided), as shown in Figure 6.

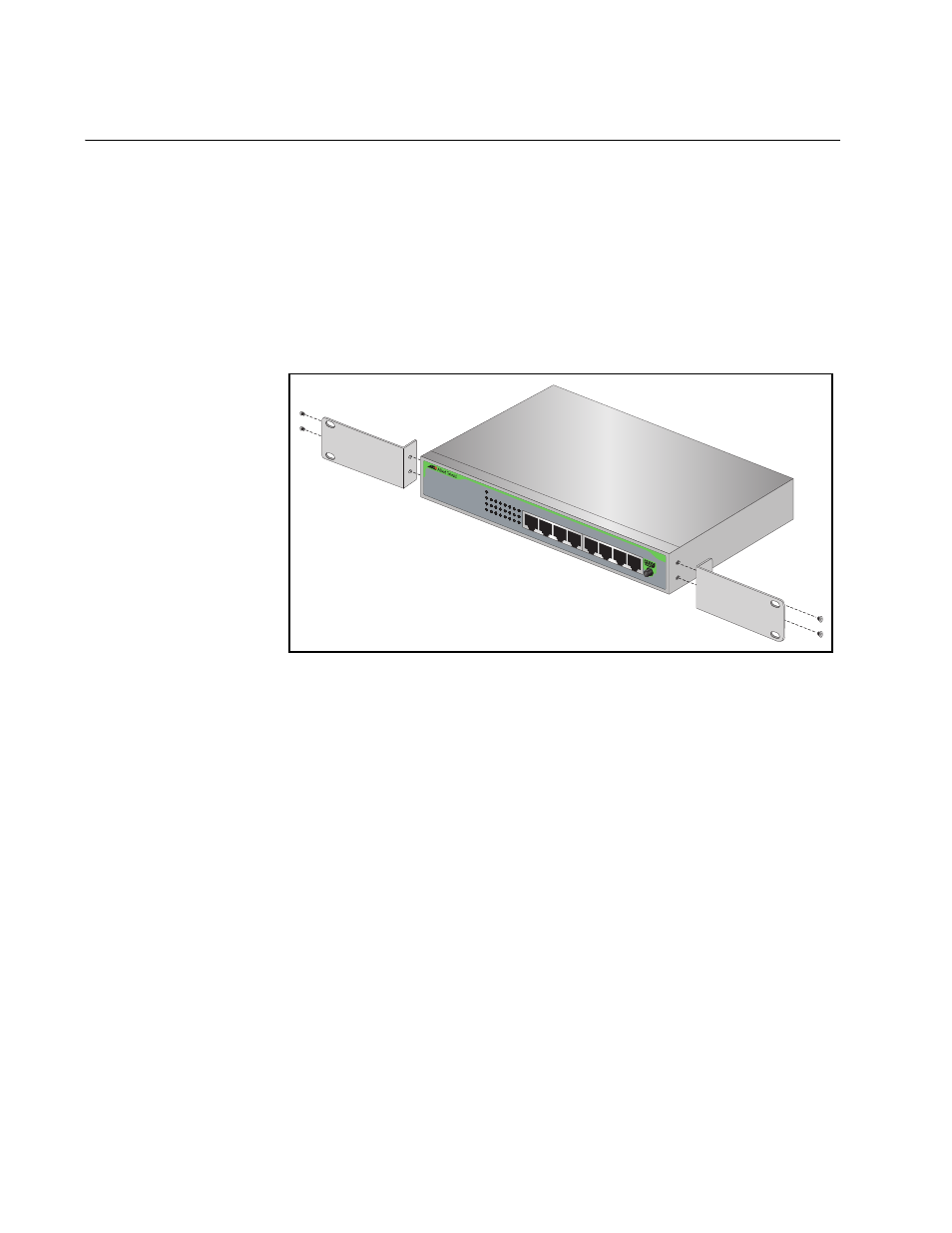

Figure 6. Attaching Brackets for Rack Mounting
AT-FS708
10Ba se-T/10 0Bas e-TX 8 Po rts
Fast E thern et Sw itch
POW ER LINK/A CT
100M
FDX
1 2 3 4 5 6 7 8
1
2
3
4
6
7
8
5
AUTO MDI/M DI-X
1775
