AT-6102 Installation and User Guide 6
Chapter 1
Introduction
Thank you for purchasing the AT-6102 IEEE 802.3af PoE Splitter.
The Power over Ethernet Splitter allows a network device that is not POE capable to be remotely
powered through an 802.3af compliant line. The following figure shows how Power over Ethernet
Splitter works.
Non PoE devices
AT-6102
AT-6101

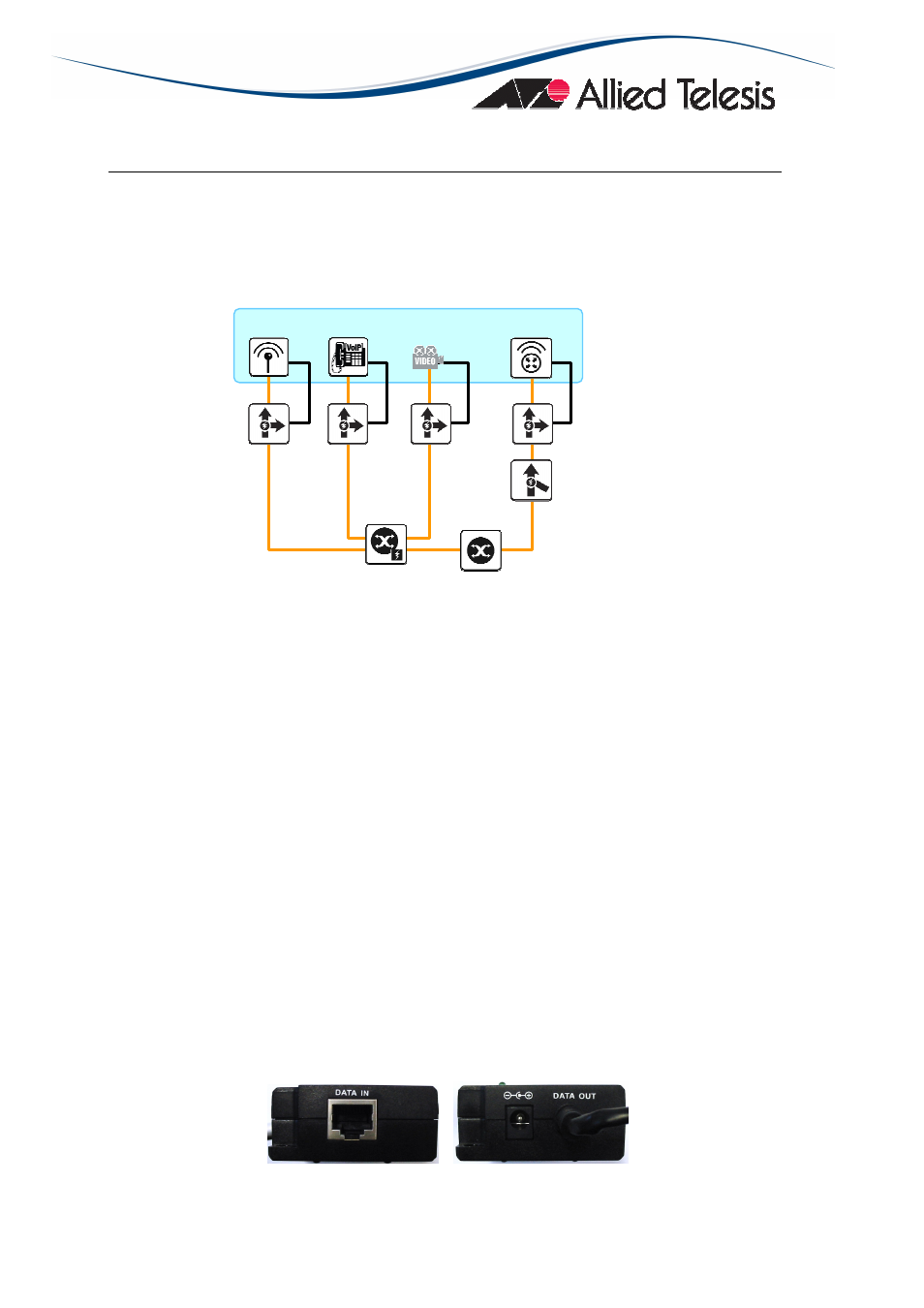

Figure 1: AT-6102 typical application
Features
• IEEE802.3af compliant
•
Short circuit protection
•
Delivering power and data to equipment
• 5V, 7.5V, 9V & 12V DC User selectable output voltage
• Plug-and-Play
• Light weight and compact size
•
Easy table top and wall mounting
•
Self-sticking Velcro strips for attaching to powered device
•
For Wireless AP, Bluetooth AP, IP Camera, VoIP Telephones and any other remote power
feeding application
•
Regulated output voltage
•
RoHS and WEEE compliant
•
CE, FCC, GOST, C-Tick Approved
• UL Listed
Hardware description
The Power over Ethernet Splitter has three connection ports, one LED indicator, and a Dipswitch
for voltage adjusting.
•
Data In port: It is a RJ-45 Ethernet interface port for connection to an 802.3af compliant data
and power source like a POE injector or a POE capable LAN Switch.
• Data Out port: It is a non detachable 315mm long cable terminated with an RJ-45 plug. It
carries the Ethernet signal to the powered device.
Figure 2: The Data In & Data Out/Power Out ports
